AVT MAGIC THipPro Lite Telephone Hybrid

AVT MAGIC THipPro Lite Telephone Hybrid

Discover the MAGIC THipPro Lite Telephone Hybrid, offering reduced functions but versatile connectivity options with 4 or 8 caller lines and dual LAN interfaces for control and optional VoIP calls. This Product is very modular and configurable. Please contact us for a tailormade offer!

Shipping duration: 7 - 14 days

Category: SKU: 755 Tags:

Description

AVT MAGIC THipPro Lite Telephone Hybrid

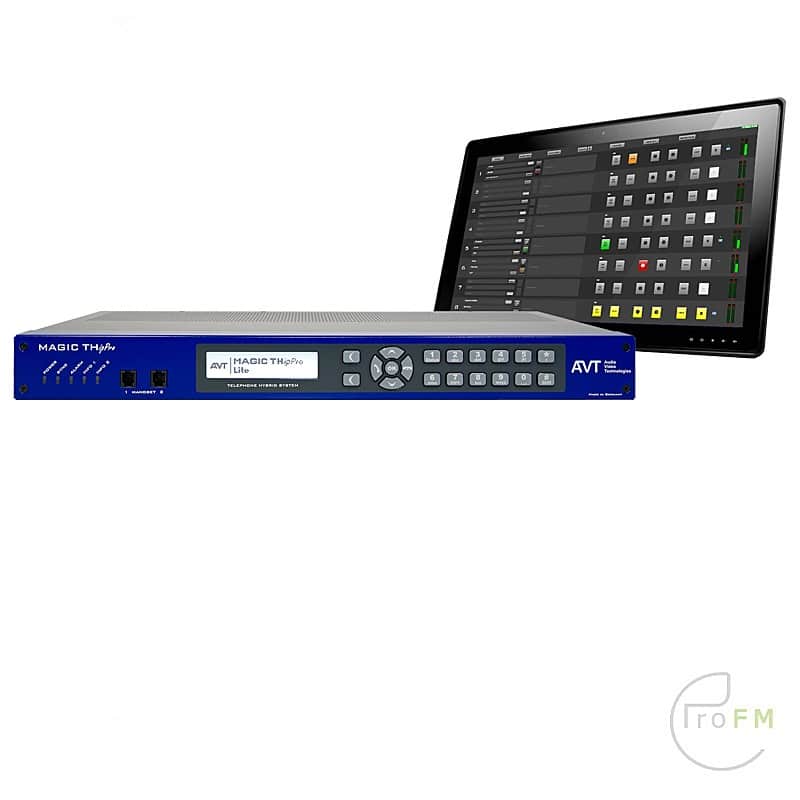

MAGIC THipPro Lite Telephone Hybrid is based on the MAGIC THipPro hardware, but has a reduced range of functions. The system is available with 4 or 8 caller lines and has two LAN interfaces that can be used for control and optionally for VoIP calls. Alternatively, POTS modules can be integrated, providing 4 or 8 POTS interfaces for connection to analogue telephone lines. The line interfaces can be enabled via the VoIP & HD Voice option or the integration of POTS modules .

MAGIC THipPro Lite has four digital audio lines (two AES/EBU interfaces) and two analogue audio inputs and outputs. Optionally, an extension to eight digital audio lines (four AES/EBU interfaces) is available. In addition, it offers two handset/headset interfaces. Optionally, the AES67 upgrade allows the use of eight additional audio channels (8 x RX (2 streams) and 8 x TX (1 stream)) via IP. Alternatively, a Ravenna or Dante module is also available. The audio interfaces can be assigned as desired to the up to 6 installed workplaces (one licence is included) and 2 studios.

The system can be used in three operating modes:
– In One Fader mode, all callers set to ON AIR are switched to conference and are thereby available on the selected audio output as a mixed signal. The N-1 signal is automatically generated for each caller line.
– In Two Faders mode, two ON AIR lines are available. The callers can thus either be output on separate audio outputs or switched to a common audio line in conference.
– In Four or Eight Faders mode, a separate ON AIR line is defined for each caller. Each caller is thus available on a separate audio output, mixing – if necessary – can be done via the mixing console.

A special highlight is the possibility to use the telephone hybrid for two studios in one-fader, two-fader or four- or eight-fader operation. In each studio, only the selected caller lines are displayed and each studio has its own ON AIR and PRETALK lines.

FEATURES

  • Digital Echo Canceller, AGC and Expander for each caller line

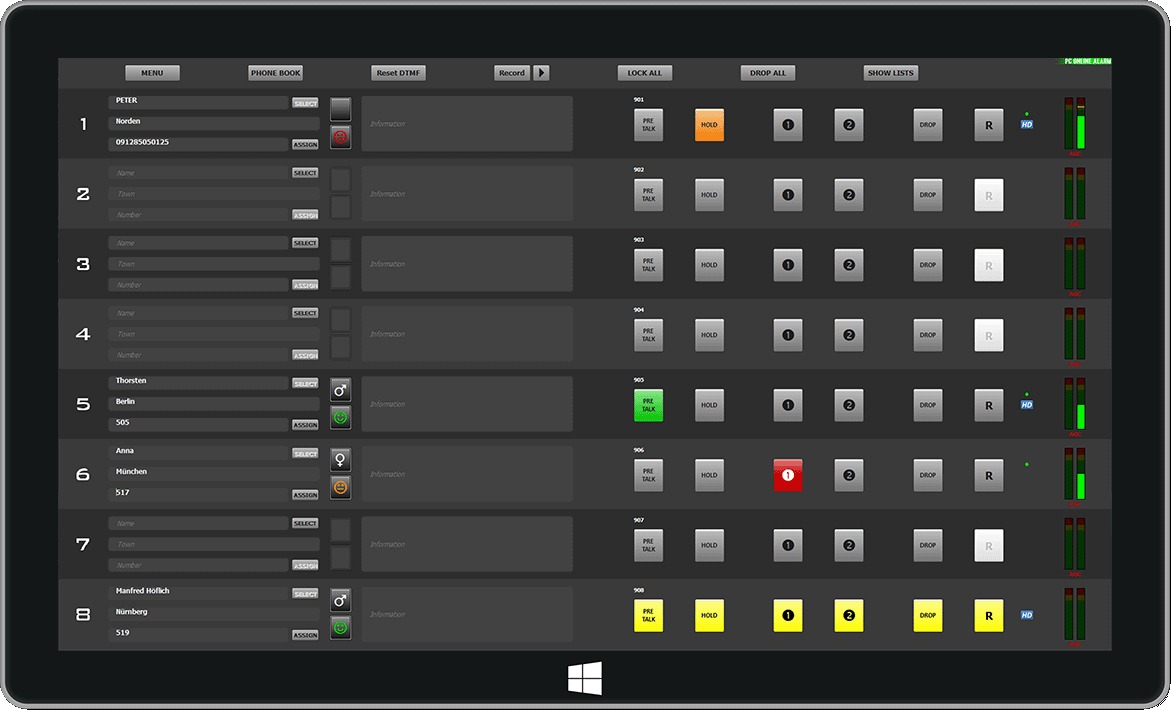

  • Convenient PC software for control with screening function
  • HOLD signal: external, recorded or ON AIR signal
  • Support of Ember+ protocol and DHD SetLogic IDs
  • GPIO contacts
  • Dante/Ravenna/AES67 upgrade for additional audio lines
  • Full upgrade to MAGIC THipPro possible



Click here for a Pdf with the numerous available options >

Description

AVT MAGIC THipPro Lite Telephone Hybrid

MAGIC THipPro Lite Telephone Hybrid is based on the MAGIC THipPro hardware, but has a reduced range of functions. The system is available with 4 or 8 caller lines and has two LAN interfaces that can be used for control and optionally for VoIP calls. Alternatively, POTS modules can be integrated, providing 4 or 8 POTS interfaces for connection to analogue telephone lines. The line interfaces can be enabled via the VoIP & HD Voice option or the integration of POTS modules .

MAGIC THipPro Lite has four digital audio lines (two AES/EBU interfaces) and two analogue audio inputs and outputs. Optionally, an extension to eight digital audio lines (four AES/EBU interfaces) is available. In addition, it offers two handset/headset interfaces. Optionally, the AES67 upgrade allows the use of eight additional audio channels (8 x RX (2 streams) and 8 x TX (1 stream)) via IP. Alternatively, a Ravenna or Dante module is also available. The audio interfaces can be assigned as desired to the up to 6 installed workplaces (one licence is included) and 2 studios.

The system can be used in three operating modes:
– In One Fader mode, all callers set to ON AIR are switched to conference and are thereby available on the selected audio output as a mixed signal. The N-1 signal is automatically generated for each caller line.
– In Two Faders mode, two ON AIR lines are available. The callers can thus either be output on separate audio outputs or switched to a common audio line in conference.
– In Four or Eight Faders mode, a separate ON AIR line is defined for each caller. Each caller is thus available on a separate audio output, mixing – if necessary – can be done via the mixing console.

A special highlight is the possibility to use the telephone hybrid for two studios in one-fader, two-fader or four- or eight-fader operation. In each studio, only the selected caller lines are displayed and each studio has its own ON AIR and PRETALK lines.

FEATURES

  • Digital Echo Canceller, AGC and Expander for each caller line
  • Convenient PC software for control with screening function
  • HOLD signal: external, recorded or ON AIR signal
  • Support of Ember+ protocol and DHD SetLogic IDs
  • GPIO contacts
  • Dante/Ravenna/AES67 upgrade for additional audio lines
  • Full upgrade to MAGIC THipPro possible



Click here for a Pdf with the numerous available options >

Specifications
Video

Additional information

Weight 8 kg
Dimensions 57 × 39 × 18 cm

Brand

AVT
