Deva Broadcast DB910 Full Duplex IP Audio Codec

 995,00

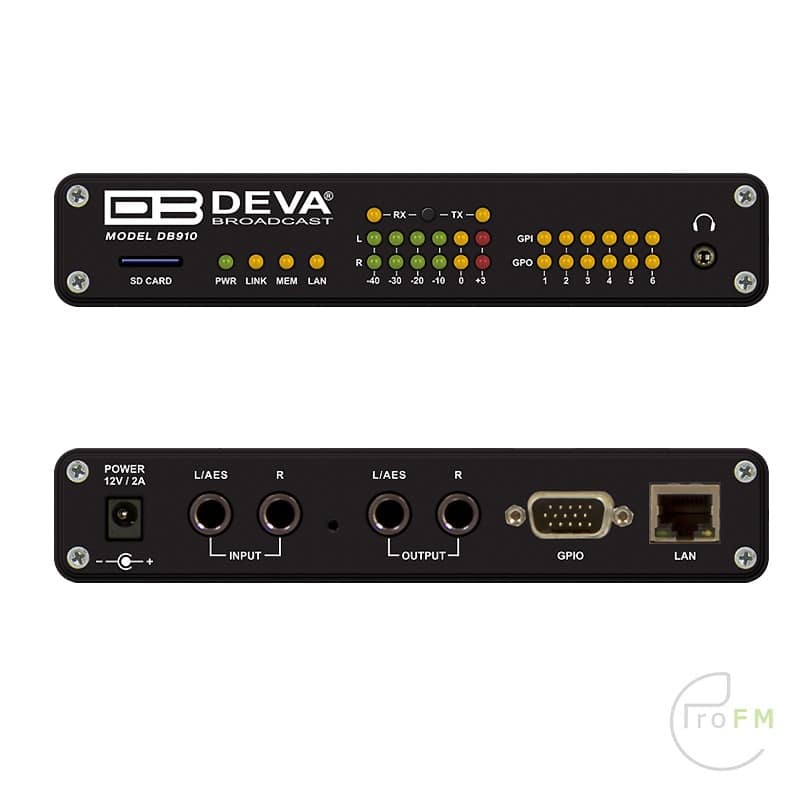

Deva Broadcast DB910 Full Duplex IP Audio Codec

Experience top-notch real-time audio encoding/decoding with the compact DB910. Perfect for broadcasters, it ensures simultaneous transmission/reception, easy control, and versatile IP audio decoding.



Category: SKU: 616 Tags:

Description

Deva Broadcast DB910 Full Duplex Compact IP Audio Codec

Inspired by DEVA continuous strive for excellence, and based on our long-term formative experience in the field of IP audio broadcasting tools, DEVA product portfolio is extended with yet another strategic solution – the DB910 Full Duplex IP Audio Codec. A full duplex solution when two tools are in use, the DB910 allows you to send and receive audio at the same time, while guaranteeing fast and easy monitoring of the signal fed to the transmitter. Where two-way transmission is not required, DB910 may be used either as an encoder or a decoder, being fully compatible with DEVA’s already widely-known hallmark IP audio codecs.

The real time audio encoding/decoding into a high quality configurable format process is uncompromisingly guaranteed by the powerful DSP processor. Supporting all the mandatory compressed audio streams and lossless, uncompressed PCM stream, the DB910 can be used for a wide range of professional audio applications: Broadcast, Internet Radio, Studio to Transmitter Link and VoIP.

Apart from its main audio source, DB910 supports several IP audio sources and a built-in MP3 Backup Audio Player in addition. With several backup audio sources incorporated, the DB910 will immediately switch between the sources when the audio is lost, and return to the main one when the audio is restored, with no user intervention. The audio content for the MP3 player is recorded on the internal SD card. The backup files can be managed remotely through the built-in FTP Server, via standard FTP client.

Combining the super compact form of the DB90 and some of the most impressive features of the renowned DB9000 line in a single product, the DB910 will meet the requirements of the most demanding broadcasters. This advanced radio gear is equipped with two-way GPIOs and RS-232 serial communication that could be used for telemetry and automation. The front panel audio level bar graphs and LED indicators of the unit allow reading the current state of the device at a glance.

Controlled through a simple and intuitive HTML5 interface and any kind of web browser, be it your PC, smart phone or tablet, the DB910 could be managed remotely or locally.
DB910 is the ultimate all-in-one solution to maintain your competitiveness, combining essential professional applications and key trends.

Features:

  • Full duplex IP audio transmission
  • Analog Audio Output and Input (4 x ¼” phone jack connectors)
  • Digital Audio Output and Input (2 x ¼” phone jack connectors)
  • High Quality HE-AAC (v.1 and v.2), MPEG-1 and MPEG-3 Decoding
  • 32 kHz, 44.1 and 48 kHz sample rates support
  • Decoding of all standard bitrates and VBR as well
  • Auto backup switching in the event of an audio loss
  • Build-in MP3 Player
  • 6 x General Purpose Inputs
  • 6 x General Purpose Outputs
  • 2 x 6 LED front panel audio level bar graphs
  • 2 x 6 GPIO and 4 x Status LEDs, and Phones output for quick diagnostics
  • Full Control and easy setup via a standard web browser
  • DHCP Client automatically assigning Network Settings
  • IP address pronunciation at startup (through the headphones)
  • UPnP for easy discovery in Local Networks

Operating Modes

Two-way Full-duplex TCP, RTP
Transmitter Shoutcast/Icecast compatible TCP server, Icecast Source Client, RTP
Receiver IP Audio Client, Icecast Source Server, RTP
File Player SD Card based player
Audio Codecs
Channels 1 or 2
Sample Rates 32 kHz, 44.1 kHz, 48 kHz
Codec MPEG-1 Layer 3; HE-AAC (v.1 and v.2); 16-bit PCM
Bitrates (Encoding) Up to 320 kbps (MPEG-1); Up to 88 kbps (HE-AAC); Up to 1536 kbps (PCM);
Bitrates (Decoding) All standard bit rates, including VBR

Audio Backup

Source Any of the available sources; Up to 3 configurable backups
Trigger Audio Silence Detector
Threshold Adjustable, -90dBFs to 0dBFs
Trigger time Adjustable, 1s to 240s
File Player
Storage microSD Card
Supported codecs MPEG-1 Layer 3, HE-AAC (v.1 and v.2)
Supported file types *.MP3, *.AAC, *.M4A, *.M3U
Playback modes Alphabetical ascending and descending, Shuffle, Playlist and Shuffled playlist
Remote file management Build-in FTP server

Analog Audio Input

Connector 2 x 1/4″ (6,3mm) phone jack; Shared with Digital input, software selectable
Type Balanced
Impedance 600Ω or High Impedance, software selectable
Level (0 dBFS) -12dBu to 18dBu, software selectable
Frequency response ±0.5dB, 10Hz-20kHz
Distortion <0.01% THD N
Dynamic range >100 dB

Analog Audio Output

Connector 1/4″ (6,3mm) phone jack; Shared with Digital output, Software selectable
Type Balanced
Impedance 600Ω or High Impedance, software selectable
Level (0 dBFS) -12dBu to 18dBu, Software selectable
Frequency Response ±0.5dB, 10Hz-20kHz
Distortion <0.01% THD N
Dynamic range >100 dB

Digital Audio Input

Type AES/EBU (IEC 60958)
Connector 1/4″ (6,3mm) phone jack; Shared with Left Analog input, software selectable
Sample rate 32kHz, 44.1kHz and 48 kHz

Digital Audio Output

Connectors 1/4″ (6,3mm) phone jack; Shared with Left Analog output, software selectable
Type AES/EBU (IEC 60958)
Sample rate 32kHz, 44.1kHz and 48 kHz
GPIO
Type 6 x GPI; 3.3V TTL logic
6 x GPO; Open-collector; 20V/100mA
1 x RS-232
Connector DB-15

GPIO Operating

Modes

Transparent two-way channel
RS-232 Operating Modes Transparent two-way channel or TCP/IP to RS-232 Redirector
RS-232 baud rate 9600 to 115200 bps

Front Panel

Level Indicators 2 x 6 LED bar graphs
GPIO Indicators 2 x 6 LEDs
Status Indicators 4 LEDs
Headphones 1/8″ (3.5mm) phones jack
SD Card microSD card slot

Remote Control

Web interface Built-in web server with HTML5 interface
SNMP SNMP 2c
Network
Connector RJ-45
Type 10/100Mbps Ethernet
Device Discovery UPnP Support

Operating conditions

Temperature 10°C – 45°C
Humidity < 75%, non-condensing

Power requirements

Connector Power Jack 5.5mm
Power supply 12V DC, 1A

Size and Weight

Dimensions (W;H;D) 170 x 35 x 167 mm
Shipping Weight 270 x 54 x 230 mm / 0.9kg
Description

Deva Broadcast DB910 Full Duplex Compact IP Audio Codec

Inspired by DEVA continuous strive for excellence, and based on our long-term formative experience in the field of IP audio broadcasting tools, DEVA product portfolio is extended with yet another strategic solution – the DB910 Full Duplex IP Audio Codec. A full duplex solution when two tools are in use, the DB910 allows you to send and receive audio at the same time, while guaranteeing fast and easy monitoring of the signal fed to the transmitter. Where two-way transmission is not required, DB910 may be used either as an encoder or a decoder, being fully compatible with DEVA’s already widely-known hallmark IP audio codecs.

The real time audio encoding/decoding into a high quality configurable format process is uncompromisingly guaranteed by the powerful DSP processor. Supporting all the mandatory compressed audio streams and lossless, uncompressed PCM stream, the DB910 can be used for a wide range of professional audio applications: Broadcast, Internet Radio, Studio to Transmitter Link and VoIP.

Apart from its main audio source, DB910 supports several IP audio sources and a built-in MP3 Backup Audio Player in addition. With several backup audio sources incorporated, the DB910 will immediately switch between the sources when the audio is lost, and return to the main one when the audio is restored, with no user intervention. The audio content for the MP3 player is recorded on the internal SD card. The backup files can be managed remotely through the built-in FTP Server, via standard FTP client.

Combining the super compact form of the DB90 and some of the most impressive features of the renowned DB9000 line in a single product, the DB910 will meet the requirements of the most demanding broadcasters. This advanced radio gear is equipped with two-way GPIOs and RS-232 serial communication that could be used for telemetry and automation. The front panel audio level bar graphs and LED indicators of the unit allow reading the current state of the device at a glance.

Controlled through a simple and intuitive HTML5 interface and any kind of web browser, be it your PC, smart phone or tablet, the DB910 could be managed remotely or locally.
DB910 is the ultimate all-in-one solution to maintain your competitiveness, combining essential professional applications and key trends.

Features:

  • Full duplex IP audio transmission
  • Analog Audio Output and Input (4 x ¼” phone jack connectors)
  • Digital Audio Output and Input (2 x ¼” phone jack connectors)
  • High Quality HE-AAC (v.1 and v.2), MPEG-1 and MPEG-3 Decoding
  • 32 kHz, 44.1 and 48 kHz sample rates support
  • Decoding of all standard bitrates and VBR as well
  • Auto backup switching in the event of an audio loss
  • Build-in MP3 Player
  • 6 x General Purpose Inputs
  • 6 x General Purpose Outputs
  • 2 x 6 LED front panel audio level bar graphs
  • 2 x 6 GPIO and 4 x Status LEDs, and Phones output for quick diagnostics
  • Full Control and easy setup via a standard web browser
  • DHCP Client automatically assigning Network Settings
  • IP address pronunciation at startup (through the headphones)
  • UPnP for easy discovery in Local Networks
Specifications

Operating Modes

Two-way Full-duplex TCP, RTP
Transmitter Shoutcast/Icecast compatible TCP server, Icecast Source Client, RTP
Receiver IP Audio Client, Icecast Source Server, RTP
File Player SD Card based player
Audio Codecs
Channels 1 or 2
Sample Rates 32 kHz, 44.1 kHz, 48 kHz
Codec MPEG-1 Layer 3; HE-AAC (v.1 and v.2); 16-bit PCM
Bitrates (Encoding) Up to 320 kbps (MPEG-1); Up to 88 kbps (HE-AAC); Up to 1536 kbps (PCM);
Bitrates (Decoding) All standard bit rates, including VBR

Audio Backup

Source Any of the available sources; Up to 3 configurable backups
Trigger Audio Silence Detector
Threshold Adjustable, -90dBFs to 0dBFs
Trigger time Adjustable, 1s to 240s
File Player
Storage microSD Card
Supported codecs MPEG-1 Layer 3, HE-AAC (v.1 and v.2)
Supported file types *.MP3, *.AAC, *.M4A, *.M3U
Playback modes Alphabetical ascending and descending, Shuffle, Playlist and Shuffled playlist
Remote file management Build-in FTP server

Analog Audio Input

Connector 2 x 1/4″ (6,3mm) phone jack; Shared with Digital input, software selectable
Type Balanced
Impedance 600Ω or High Impedance, software selectable
Level (0 dBFS) -12dBu to 18dBu, software selectable
Frequency response ±0.5dB, 10Hz-20kHz
Distortion <0.01% THD N
Dynamic range >100 dB

Analog Audio Output

Connector 1/4″ (6,3mm) phone jack; Shared with Digital output, Software selectable
Type Balanced
Impedance 600Ω or High Impedance, software selectable
Level (0 dBFS) -12dBu to 18dBu, Software selectable
Frequency Response ±0.5dB, 10Hz-20kHz
Distortion <0.01% THD N
Dynamic range >100 dB

Digital Audio Input

Type AES/EBU (IEC 60958)
Connector 1/4″ (6,3mm) phone jack; Shared with Left Analog input, software selectable
Sample rate 32kHz, 44.1kHz and 48 kHz

Digital Audio Output

Connectors 1/4″ (6,3mm) phone jack; Shared with Left Analog output, software selectable
Type AES/EBU (IEC 60958)
Sample rate 32kHz, 44.1kHz and 48 kHz
GPIO
Type 6 x GPI; 3.3V TTL logic
6 x GPO; Open-collector; 20V/100mA
1 x RS-232
Connector DB-15

GPIO Operating

Modes

Transparent two-way channel
RS-232 Operating Modes Transparent two-way channel or TCP/IP to RS-232 Redirector
RS-232 baud rate 9600 to 115200 bps

Front Panel

Level Indicators 2 x 6 LED bar graphs
GPIO Indicators 2 x 6 LEDs
Status Indicators 4 LEDs
Headphones 1/8″ (3.5mm) phones jack
SD Card microSD card slot

Remote Control

Web interface Built-in web server with HTML5 interface
SNMP SNMP 2c
Network
Connector RJ-45
Type 10/100Mbps Ethernet
Device Discovery UPnP Support

Operating conditions

Temperature 10°C – 45°C
Humidity < 75%, non-condensing

Power requirements

Connector Power Jack 5.5mm
Power supply 12V DC, 1A

Size and Weight

Dimensions (W;H;D) 170 x 35 x 167 mm
Shipping Weight 270 x 54 x 230 mm / 0.9kg
Video

Additional information

Weight 1,5 kg
Dimensions 27 × 23 × 6 cm
