Audessence BFP-250 FM Bandpass Filter

 849,00

Audessence BFP-250 FM Bandpass Filter

The Audessence FM Bandpass Helical Filter is the ultimate solution for spurious reduction and interference elimination on crowded FM transmission sites

Category: SKU: 1207

Description

Audessence BFP-250 FM Bandpass Filter

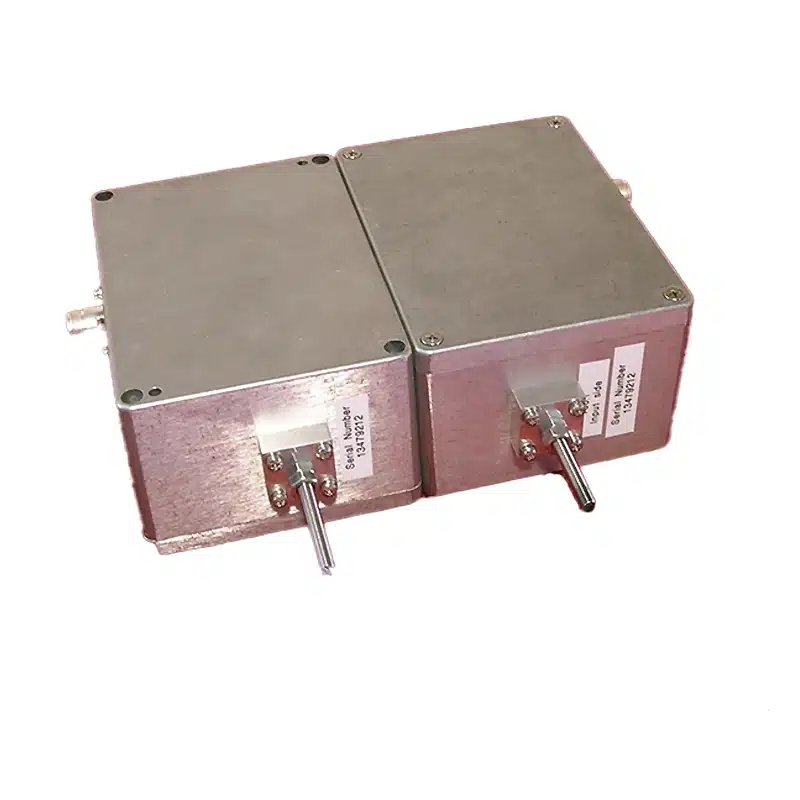

The Audessence FM Bandpass Helical Filter is the ultimate solution for spurious reduction and interference elimination on crowded FM transmission sites. Engineered with precision, this compact 2-chamber filter handles up to 250 Watts RF power effortlessly. Equipped with durable N-type female connectors, it ensures seamless integration into your broadcast setup.

Key Benefits:

  • Powerful Interference Elimination: Effortlessly resolve interference issues on shared transmission sites.
  • Reduced Intermodulation Products: Drastically minimize intermodulation when multiple FM transmitters operate from the same site.
  • Low Insertion Loss: Preserve radiated power for consistent broadcast quality.
  • Exceptional Return Loss: Maintain a perfect transmitter load match for reliable operations.

Applications
● FM Transmitters and FM transmission sites at VHF
● Bandpass FM filtering
● Band Pass FM Combiners and diplexers



FEATURES:
• Generous rating comfortably handles 250W RF power even with antenna mismatch

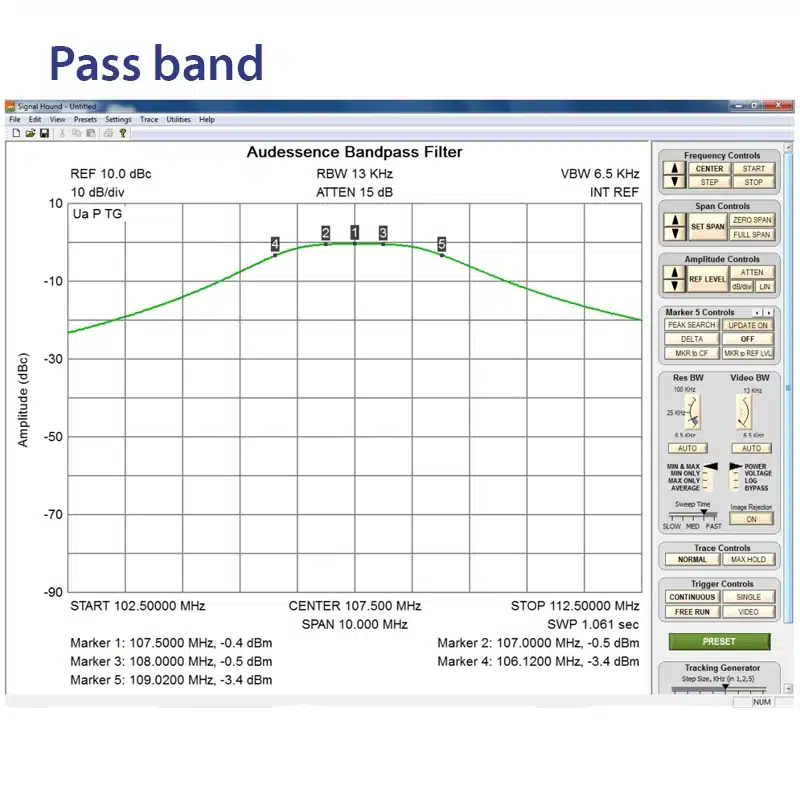

• Very low insertion loss typically -0.4dBr or less at centre frequency +/-200kHz

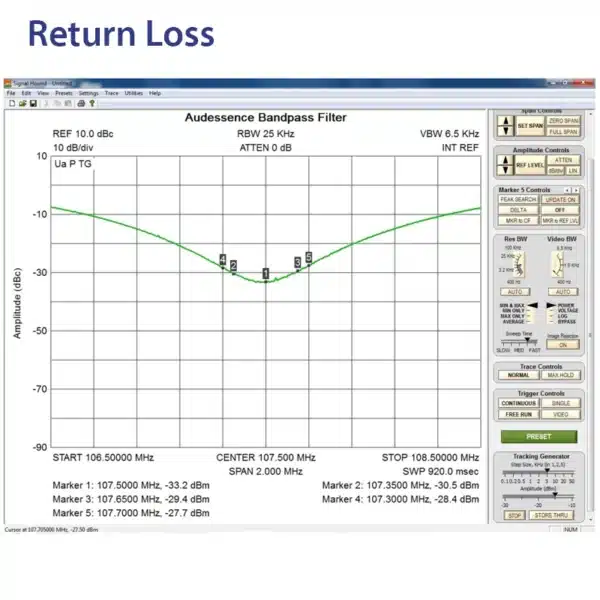

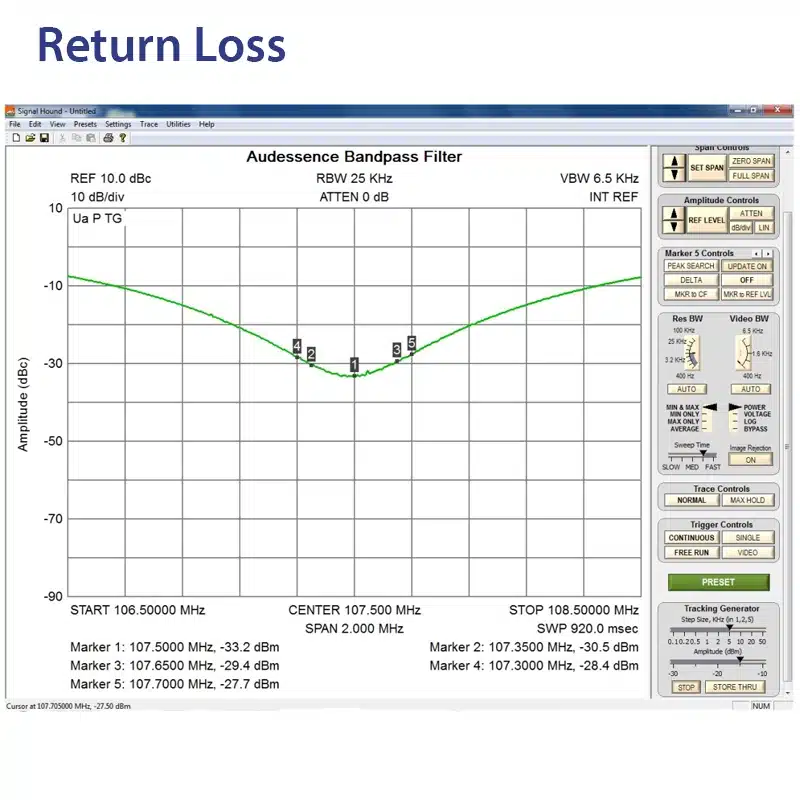

• Very good return loss, typically better than -30dBr over +/-200kHz

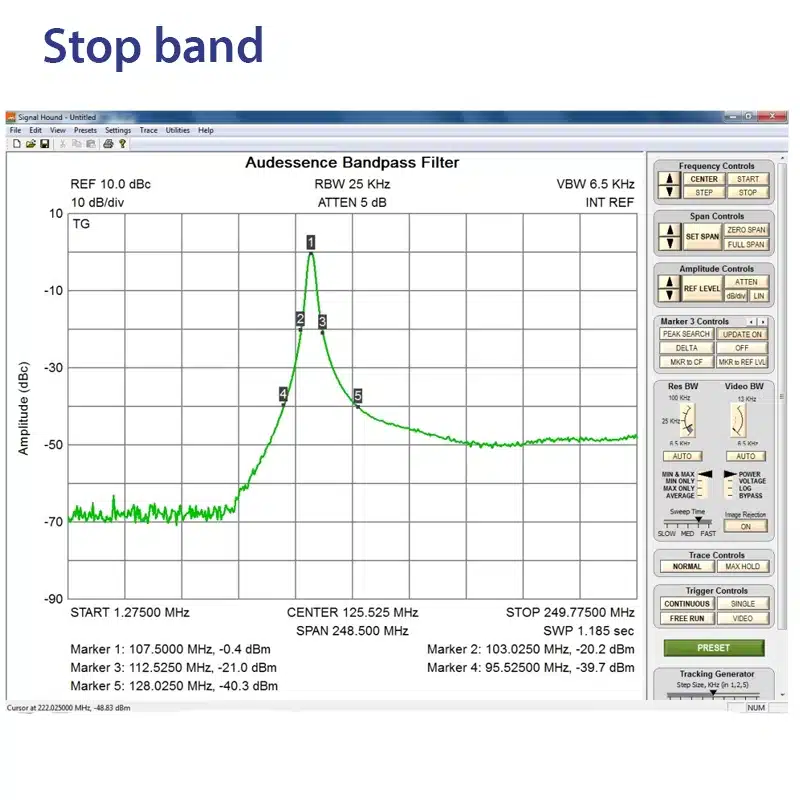

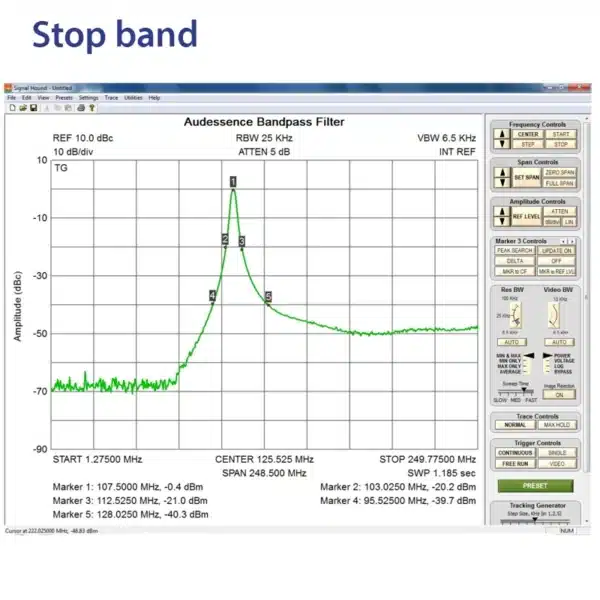

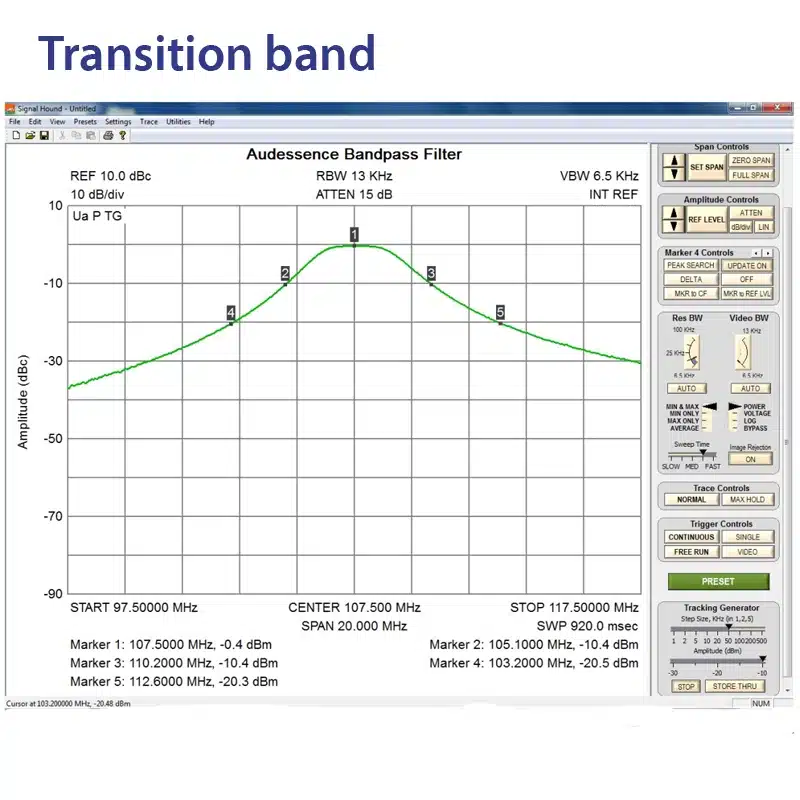

• see overleaf for typical band pass filter characteristics
• Standard availability 28 days
• Premium delivery service (optional extra) – 10 days or less availability

Built for Reliability: Designed and manufactured with generous ratings to ensure stable and uninterrupted FM transmission.
The audessece BPF-250 is ideal for professional broadcasters seeking robust solutions for shared FM sites. Its compact design and high-performance specifications make it the preferred choice for reducing interference while maintaining signal integrity. Optimize your FM broadcast with this reliable and efficient filter today.

Power Handling: 250 Watts CW nominal, generously rated

Dimensions: Main outline 217 x 147 x 74 mm With connectors & stubs 255 x 207max x 74 mm

Insertion Loss: <-0.5dB, typically -0.4dB

Materials: Resonators: 3.25mm thickwall copper tube Formers: Machined PTFE

Connectors: N-Type female connectors on filter, silver plated

Warranty: 3 year return-to-base warranty

Centre Frequency:Specify at time of ordering: 87.5 to 108MHz (Other frequencies: please ask)

Approvals: CE (EMC & LVD), RoHS

Description

Audessence BFP-250 FM Bandpass Filter

The Audessence FM Bandpass Helical Filter is the ultimate solution for spurious reduction and interference elimination on crowded FM transmission sites. Engineered with precision, this compact 2-chamber filter handles up to 250 Watts RF power effortlessly. Equipped with durable N-type female connectors, it ensures seamless integration into your broadcast setup.

Key Benefits:

  • Powerful Interference Elimination: Effortlessly resolve interference issues on shared transmission sites.
  • Reduced Intermodulation Products: Drastically minimize intermodulation when multiple FM transmitters operate from the same site.
  • Low Insertion Loss: Preserve radiated power for consistent broadcast quality.
  • Exceptional Return Loss: Maintain a perfect transmitter load match for reliable operations.

Applications
● FM Transmitters and FM transmission sites at VHF
● Bandpass FM filtering
● Band Pass FM Combiners and diplexers



FEATURES:
• Generous rating comfortably handles 250W RF power even with antenna mismatch
• Very low insertion loss typically -0.4dBr or less at centre frequency +/-200kHz
• Very good return loss, typically better than -30dBr over +/-200kHz
• see overleaf for typical band pass filter characteristics
• Standard availability 28 days
• Premium delivery service (optional extra) – 10 days or less availability

Built for Reliability: Designed and manufactured with generous ratings to ensure stable and uninterrupted FM transmission.
The audessece BPF-250 is ideal for professional broadcasters seeking robust solutions for shared FM sites. Its compact design and high-performance specifications make it the preferred choice for reducing interference while maintaining signal integrity. Optimize your FM broadcast with this reliable and efficient filter today.

Specifications

Power Handling: 250 Watts CW nominal, generously rated

Dimensions: Main outline 217 x 147 x 74 mm With connectors & stubs 255 x 207max x 74 mm

Insertion Loss: <-0.5dB, typically -0.4dB

Materials: Resonators: 3.25mm thickwall copper tube Formers: Machined PTFE

Connectors: N-Type female connectors on filter, silver plated

Warranty: 3 year return-to-base warranty

Centre Frequency:Specify at time of ordering: 87.5 to 108MHz (Other frequencies: please ask)

Approvals: CE (EMC & LVD), RoHS

Additional information

Weight 7 kg
Dimensions 40 × 30 × 15 cm
