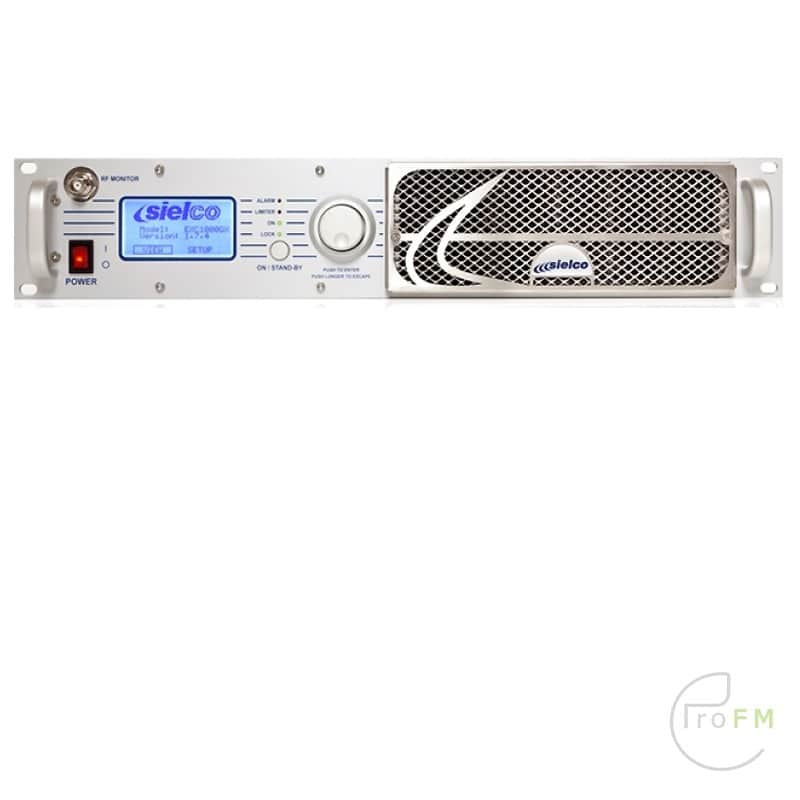

SielCo EXC1600GX FM Transmitter 1,6 KW / 1600 Watts

$5 012.91

SielCo EXC1600GX FM Transmitter 1,6 KW / 1600 Watts

Sielco EXC1600GX Mono MPX 1600 watt FM Transmitter. High quality FM transmitter, for local or commercial regional broadcasting.
High efficiency, light weight, low heat development and only 2 HE high.

Mono-MPX

Standard version with mono or MPX input

Stereo Encoder Board Option

RDS Encoder Board Option (needs SEXC23COD2 to work)

AES/EBU Digital Audio Input Board Option

Ethernet Telemetry / Remote Control Option

Telemetry GSM + Ethernet SNMP /Interface Web Server Option

Product price: $5 012.91
Total options:
Order total:

Description

SielCo EXC1600GX FM Transmitter 1,6 KW / 1600 Watts

Sielco EXC1600GX model is the 1600W compact transmitter of the innovative GX family produced by Sielco. It is appreciated for the great efficiency and versatility due to three main reasons: LIGHT weight, MINIMUM size and LOW consumption. To buy an EXC1600GX, as anyone other model of the GX line, means to make a winning choice, to enjoy all the relevant advantages during all the life of the product and to spare money: less transport costs, less needed space to install it and the lowest energy consumption during the work.

The Sielco EXC1600GX is simple to set up: very easy to configure thanks to the intuitive human interface equipped with an elegant LCD graphic display, a multifunction jog control and only a few other control buttons. The high flexibility of this compact transmitter could be even increased through the use of important options like: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, audio digital board in accordance with AES/EBU directive and RS232/485 serial port to enable an easier integration with other instruments. The modern and attractive design of our GX transmitters reflects the state-of-the-art technology of this trustworthy model that requires a few maintenance and that allows to spare time and money.

Features

* Digital control
* Compact Chasis
* Frequency Agile – User can select any channel from 87.6 MHz to 108MHz.
* Auto Power Control – Output power is maintained at your selected level, both forward and reflected power are diplayed on the front panel.
* Display -Blue coloredscreen provide easy viewing off all parameters under high ambient light.
* Transmitter fulfils CCIR AND FCC standards.
* Extensive transmitter protection minimizes system downtime.
*Audio/mpx input level -3.5 ÷ 12.5 dBm adjustable
*Adjustable at 10kHz steps
*Pre-enphasis 50 ~s ±3% (0, 25, 50, 75 ~s selectable)
*Audio/mpx input impedance 10k/600 ohm balanced
*Deviation limiter from 0 to 7dB adjustable

Frequency range:from 87,5 to 108 MHz
Transmitter tuning steps:10/100 KHz
FM modulation:75 KHz peak deviation (adjustable)
Audio and Mpx input level:from -3,5 to 12,5 dBm @ 75 KHz deviation
Auxiliary input channel level:SCA – from -12,5 to 3,5 dBm @ 7,5 KHz deviation
RDS – from -24 to -8 dBm @ 2 KHz deviation
Modulation distortion:75 KHz dev. – <0.03%, 0.02% typical
S/N ratio, mono:30÷20000Hz – >76 dB, 83 typical
CCIR – >75 dB, 79 typical
S/N ratio, stereo:30÷20000Hz – >72 dB, 77 typical
CCIR – >68 dB, 72 typical
Audio channels frequency response:30÷15000 Hz – ±0.1 dB
MPX input frequency response:30÷100000 Hz – ±0.1 dB
Pre-emphasis time constant:0/50/75 μs selectable
Rated RF output power:1600W
Output power ALC stability:±3%
Harmonic and spurious emissions:
RF output connector:7/16″
Power supply:Single phase – 230 VAc ± 10%
Three phase – N.A.
Total consumption at rated RF power:
Operative temperature range:suggested – from 0 to 35 °C
extreme – from -10 to 55 °C max (with derating)
Relative humidity:up to 95% not condensing
Dimensions (WxHxD):483x88x585 mm
Weight:16kg

Description

SielCo EXC1600GX FM Transmitter 1,6 KW / 1600 Watts

Sielco EXC1600GX model is the 1600W compact transmitter of the innovative GX family produced by Sielco. It is appreciated for the great efficiency and versatility due to three main reasons: LIGHT weight, MINIMUM size and LOW consumption. To buy an EXC1600GX, as anyone other model of the GX line, means to make a winning choice, to enjoy all the relevant advantages during all the life of the product and to spare money: less transport costs, less needed space to install it and the lowest energy consumption during the work.

The Sielco EXC1600GX is simple to set up: very easy to configure thanks to the intuitive human interface equipped with an elegant LCD graphic display, a multifunction jog control and only a few other control buttons. The high flexibility of this compact transmitter could be even increased through the use of important options like: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, audio digital board in accordance with AES/EBU directive and RS232/485 serial port to enable an easier integration with other instruments. The modern and attractive design of our GX transmitters reflects the state-of-the-art technology of this trustworthy model that requires a few maintenance and that allows to spare time and money.

Features

* Digital control
* Compact Chasis
* Frequency Agile – User can select any channel from 87.6 MHz to 108MHz.
* Auto Power Control – Output power is maintained at your selected level, both forward and reflected power are diplayed on the front panel.
* Display -Blue coloredscreen provide easy viewing off all parameters under high ambient light.
* Transmitter fulfils CCIR AND FCC standards.
* Extensive transmitter protection minimizes system downtime.
*Audio/mpx input level -3.5 ÷ 12.5 dBm adjustable
*Adjustable at 10kHz steps
*Pre-enphasis 50 ~s ±3% (0, 25, 50, 75 ~s selectable)
*Audio/mpx input impedance 10k/600 ohm balanced
*Deviation limiter from 0 to 7dB adjustable

Specifications

Frequency range:from 87,5 to 108 MHz
Transmitter tuning steps:10/100 KHz
FM modulation:75 KHz peak deviation (adjustable)
Audio and Mpx input level:from -3,5 to 12,5 dBm @ 75 KHz deviation
Auxiliary input channel level:SCA – from -12,5 to 3,5 dBm @ 7,5 KHz deviation
RDS – from -24 to -8 dBm @ 2 KHz deviation
Modulation distortion:75 KHz dev. – <0.03%, 0.02% typical
S/N ratio, mono:30÷20000Hz – >76 dB, 83 typical
CCIR – >75 dB, 79 typical
S/N ratio, stereo:30÷20000Hz – >72 dB, 77 typical
CCIR – >68 dB, 72 typical
Audio channels frequency response:30÷15000 Hz – ±0.1 dB
MPX input frequency response:30÷100000 Hz – ±0.1 dB
Pre-emphasis time constant:0/50/75 μs selectable
Rated RF output power:1600W
Output power ALC stability:±3%
Harmonic and spurious emissions:
RF output connector:7/16″
Power supply:Single phase – 230 VAc ± 10%
Three phase – N.A.
Total consumption at rated RF power:
Operative temperature range:suggested – from 0 to 35 °C
extreme – from -10 to 55 °C max (with derating)
Relative humidity:up to 95% not condensing
Dimensions (WxHxD):483x88x585 mm
Weight:16kg

Additional information

Weight 15 kg
Dimensions 65 × 57 × 23 cm

Brand

Sielco
