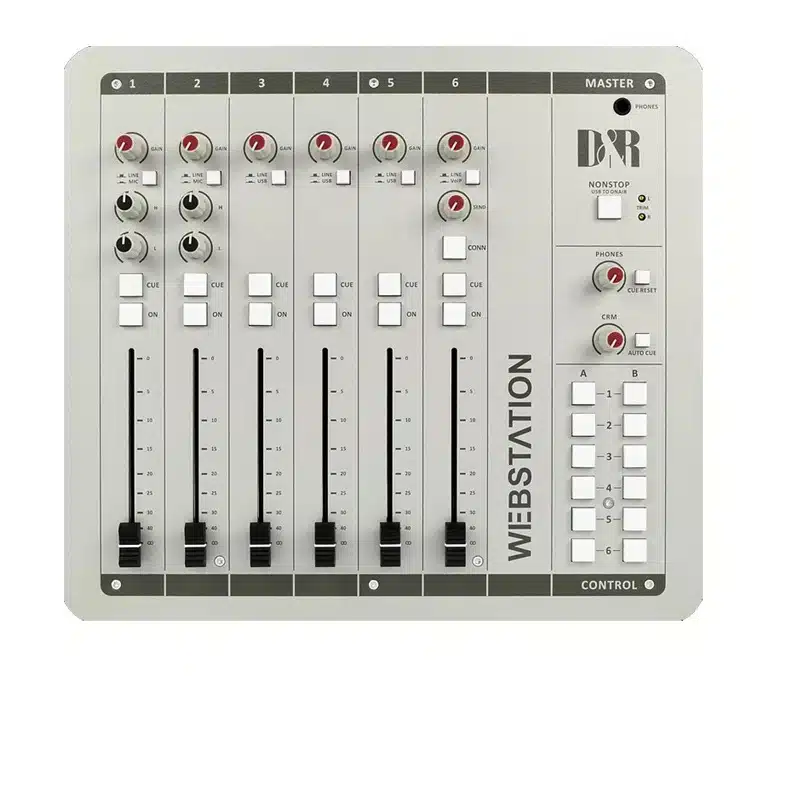

D&R Webstation USB Broadcast Mixer

With the Webstation you can now own a modern broadcast mixer for a very attractive price. This new and handbuilt piece of precision equipment is built around proven low noise circuitry. It is an intelligent mixer with an internal USB control section that comfortably enhances daily use and even has a built in silence detector. It is a reliable workhorse for the self-op production D.J. There is a built in Telephone VOIP functionality, 3 in/out channels of stereo USB and 2 very low noise Mic inputs. The WEBSTATION is ideal for ON-AIR, Production work and perfect for streaming to the web.
The WEBSTATION accepts and instantly controls a maximum of 3 in/out stereo channels from your Play-out software. It is built into a heavy duty metal RF shielded chassis. Easily “drops” into your furniture to give that exciting and contemporary radio look. Built with a strong powder coated front panel for durability and it is the result of more than 45 years of experience at D&R

MIC, LINE, USB and INTERNAL VOIP

The WEBSTATION mixer has 2 balanced, phantom powered mic inputs with inserts for voice processors. Six stereo line inputs, 3x USB channels and 1x Telephone VOIP channel.
If you want to connect an analog phone line a Cleanfeed output is provided to connect to an external Hybrid.
Only one physical USB connection is the interface to transfer 3 stereo audio channels VoIP signal from and to your PC plus all control data from the control section and the software meter application.
The VOIP Channel 6 is also routed to the main USB connector. Talk back to the VOIP channel is by pushing both “Mic CUE” and “VOIP CUE” to make conversation with callers very easy prior to broadcasting.
The Webstation has a very musical 2 band equalizer. All high quality low noise mic inputs have a built in low cut filters.

STRAIGHT FORWARD MASTER SECTION

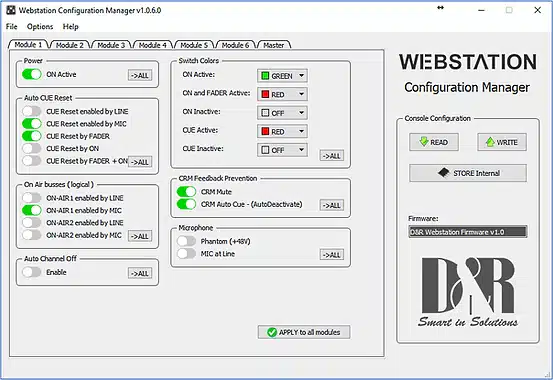

The WEBSTATION’s modules can be easily tailored to your own needs with the included software program page shown below. All 6 modules have their own page, where you can program Cue reset enabled by Line, Mic, Fader, On etc. The Mic On busses (for your ON-AIR light) can be enabled by Line or Mic or USB. A great feature is the ability to program your own switch colours, activate the CRM mute module and program the Studio Remote. Additionally if you want your Phantom power on or off individually programmable per channel this can also easily done. All settings can be stored(write) and loaded (read), see the configuration manager below.

FEATURES:

• Six dual inputs
• Built in auto Silence detector
• 3 USB stereo in /out channels
• Play out USB control section included
• 2 band EQ
• Drop Through design
• Ideal for Production,
• Voice tracking and On-AIR CRM and Phone outputs
• Bi directional Cue communication buss
• Built in VOIP functionality
• Cleanfeed output for external Hybrids
• Internal NON STOP switching

SMART MASTER PROGRAMMING

Also the master section has various options to fine trim the mixer to your needs. Above you see the software pages that can be loaded and give you an overview of its possibilities.
There are settings that adjust the Silence Detection with parameters for Threshold, Interval time and the source. You can even program the switch colors you personally like.
Also the CUE bus can be set to behave interlocking, which means that when you select another CUE the earlier selected one automatically switches off.
Don’t let the simple lay-out fool you, there is much going on beneath the front panel to make your life easier as DJ!

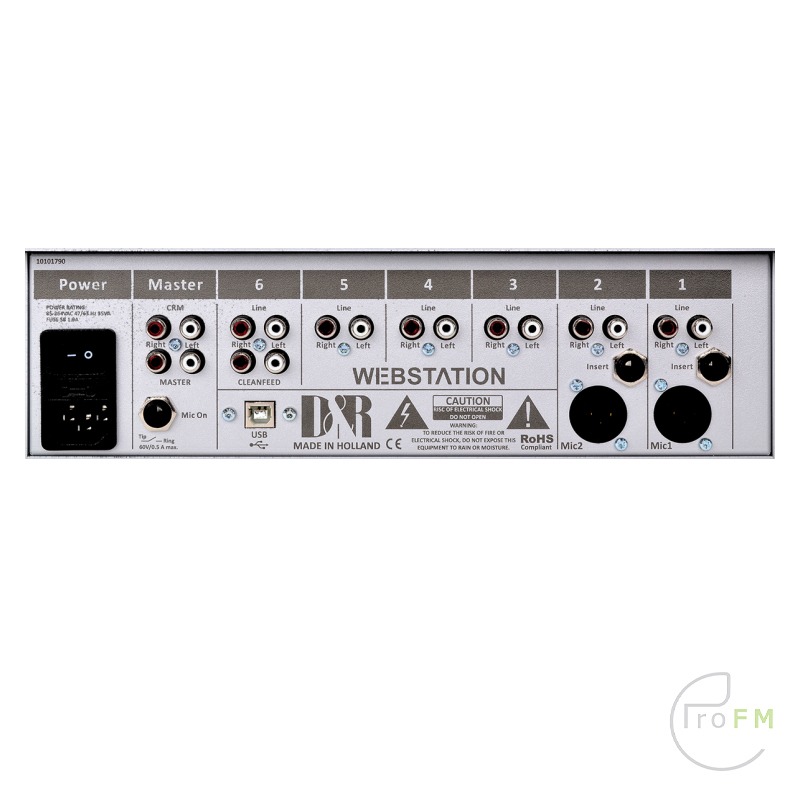

Inputs

Mic inp : bal, 2 kOhm, XLR ,48 volt Phantom.
Noise : – 128 dBr (A-weighted).
Sensitivity : – 70dB min, OdB Max.
Insert : unbalanced 10kOhm -10dBv.
Line inputs : unbal., 10kOhm, Cinch.
Gain : range of 40dB.
USB : 3x Stereo in and 3x stereo out.

USB

Fully compliant with USB 2.0
playback and record mode.
3x Stereo in and 3x stereo out.

USB CONTROL SECTION

12 free assignable illuminated switches based on the HID protocol.

VoIP CHANNEL

Uses USB processing for VoIP processing.

OVERALL

Frequency response : 10 – 60.000Hz.
Distortion : < 0.01% max at 1 kHz.
GPO/Mic On : Opto FETS. (24volt/50mA max).

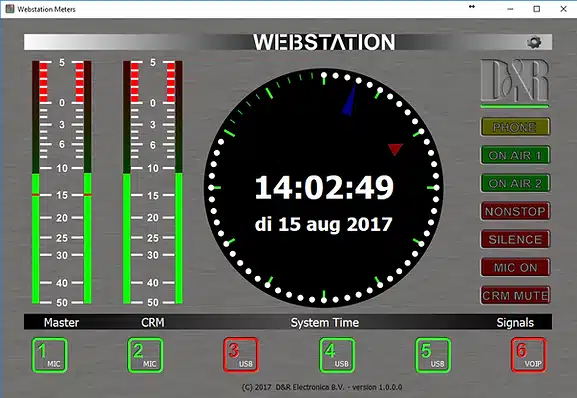

Led bars : Software meter application.

OUTPUTS

Left/Right : 6dBu unbal. on Cinch.
CRM/Aux : 6dBu unbal. on Cinch.
Headphone : 32-400 Ohm, Jack.
USB out: Program/Aux/Voice track/Non Stop

EQUALIZER

High : / -12 dB at 12kHz shelving.
Low : / -12 dB at 60 Hz shelving.

CONTROL SOFTWARE

A software program is included in the delivery for programming the Control section (Webstation Virtual Keyboard Mapper) and internal mixer settings.

DIMENSIONS

Left-Right : 350 mm
Front-Back : 315 mm
Height : 30 to 90 mm
Front panel thickness : 2 mm
Radius Corners : 20 mm
Weight : 8kg.
Drop through hole : 320 x 295 mm
