PCS AM MAX 100 Watt PEP LPAM Transmitter

PCS AM MAX 100 Watt PEP LPAM Transmitter

Black edition 100W AM MW transmitter with new high performance advanced display, backed by 5 years of warranty
The new Black Edition (BE+) series AM exciter brings completely new advanced graphics display with many new features such as web control interface, ethernet connectivity, two-color VU meter and smooth rotary button operation. With this new OLED display and new great looking enclosures with improved ventilation it seemed completely logical that warranty period would be extended to 5 years **.

AM transmitter with DSP processing, PWM modulator and DDS frequency generator
While for many mentioning AM transmitters brings back childhood memories, these are actually still used widely in some countries. Besides, AM can be lots of fun to play with. Long wire antennas, different signal propagation (even worldwide), the nostalgia that comes packed with it… well, it is something very different in this modern age.
Our old AM MAX units sold out many years ago and for a long time we wanted to make a new AM transmitter, this time with different, more modern approach, with new better parts and better specs. And we finally did. It is equipped with DSP which makes it possible to control parameters of the audio chain, such as the compression, low pass audio filter cut frequency and pre-emphasis via convenient LCD with menu system. Other features, such as the fully solid-state PWM modulator which ensures crisp audio, >125% positive peak modulation, compact form factor, plenty of audio input options and LCD display unit make AM transmitters based on AMMAX8000+ really something special in this modern age.

What’s new in BE version:

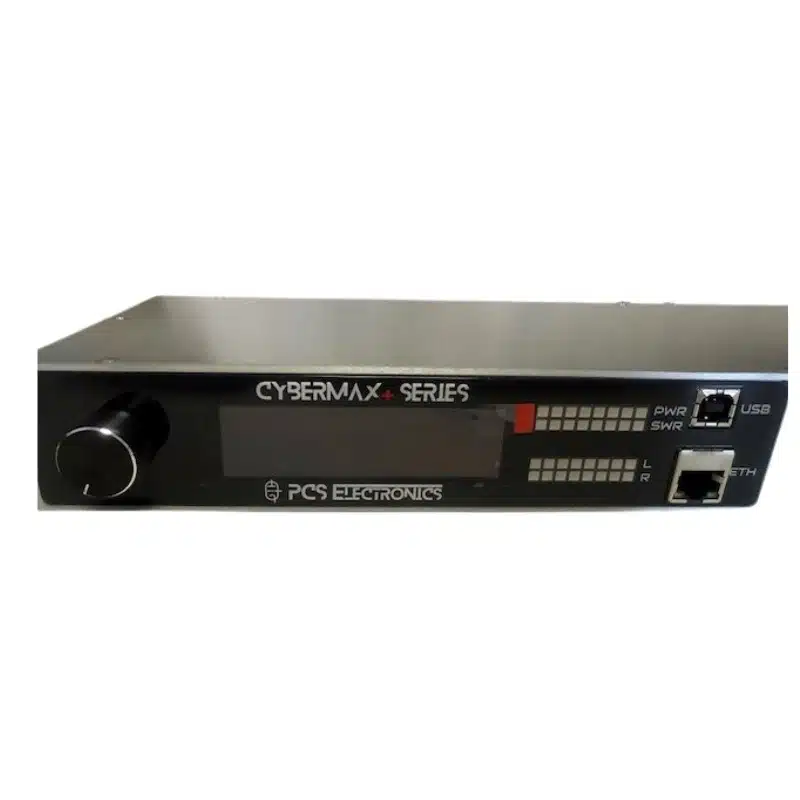

• Bright 122×32 graphical LCD with rotary encoder, USB and Ethernet ports.
• Classical two-color LED-based VU-meter and forward/reflected power indicator.
• Remote control via Ethernet and web browser as standard, possible even from mobile phone
• Optional streaming and Mp3 playback
• Calibrated two-color VU meters for power, reflected power and audio level
• Improved cooling

What parameters can I change via remote control?
Frequency, various alarms, network parameters, time settings, audio input and levels and DSP parameters can be changed via Ethernet in web browser. No software installation is needed, just connect your transmitter to local Ethernet and open web browser to access all the settings. Check the manual for more info. Below is a small sample of the interface.

What is included with  PCS AM+ BE in 1H rack

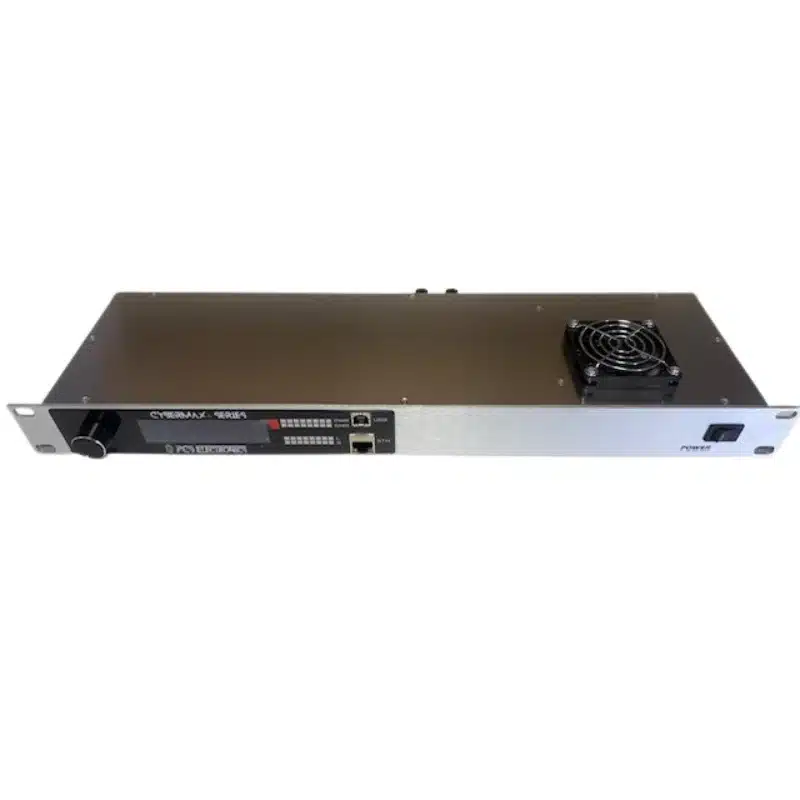

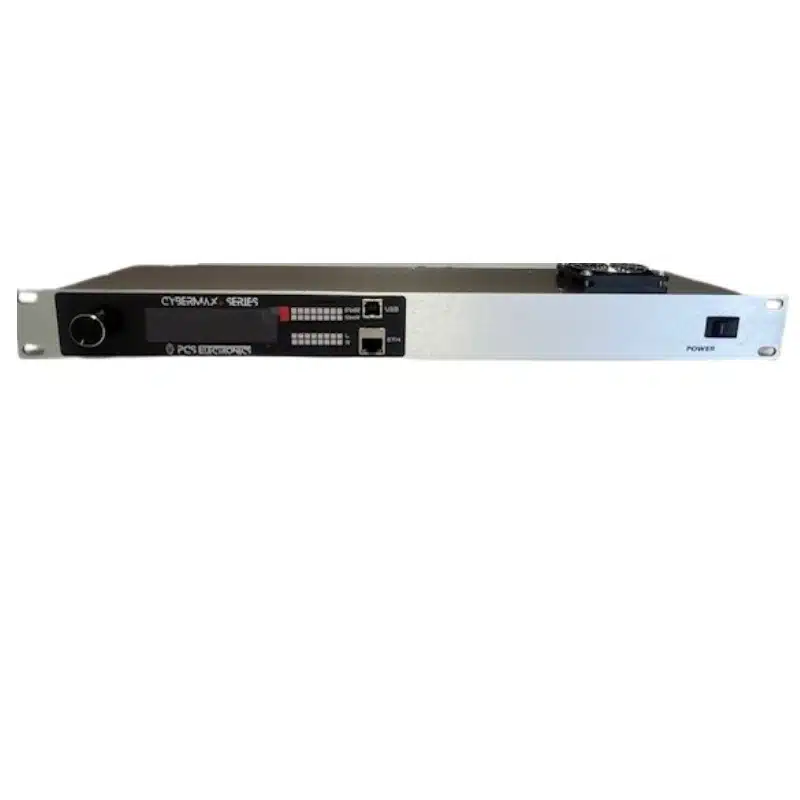

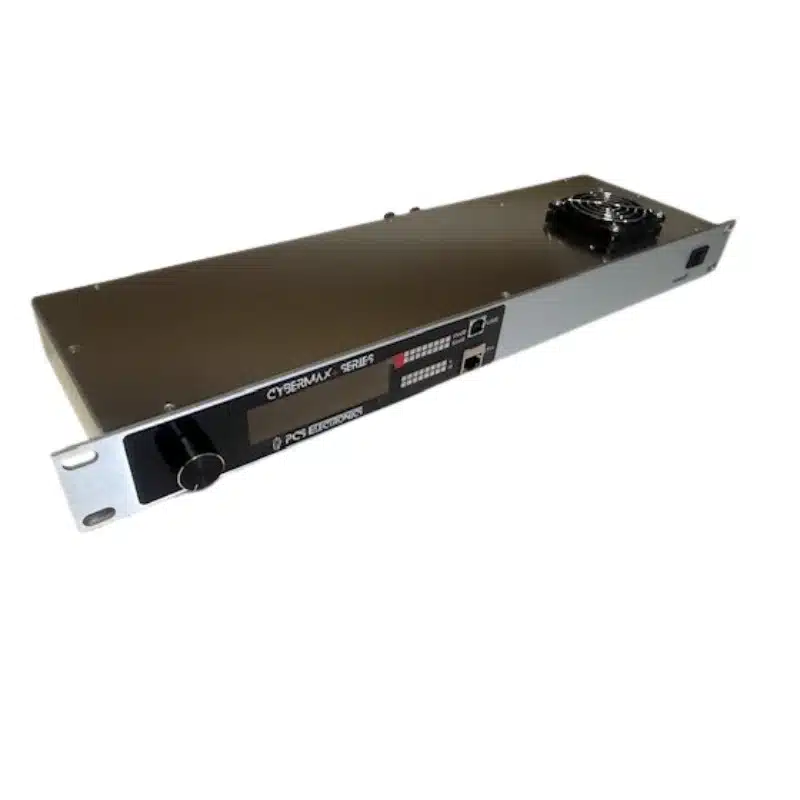

– CyberMaxAM+ BE transmitter in 1H rack
– Audio input board + AMMAX8000+ are installed inside
– 48V mains power supply is included

– RF Output Power AM: ~100W peak, 10-25W carrier (24V-50V DC stabilized, use 50V for maximum power), varies with band and frequency

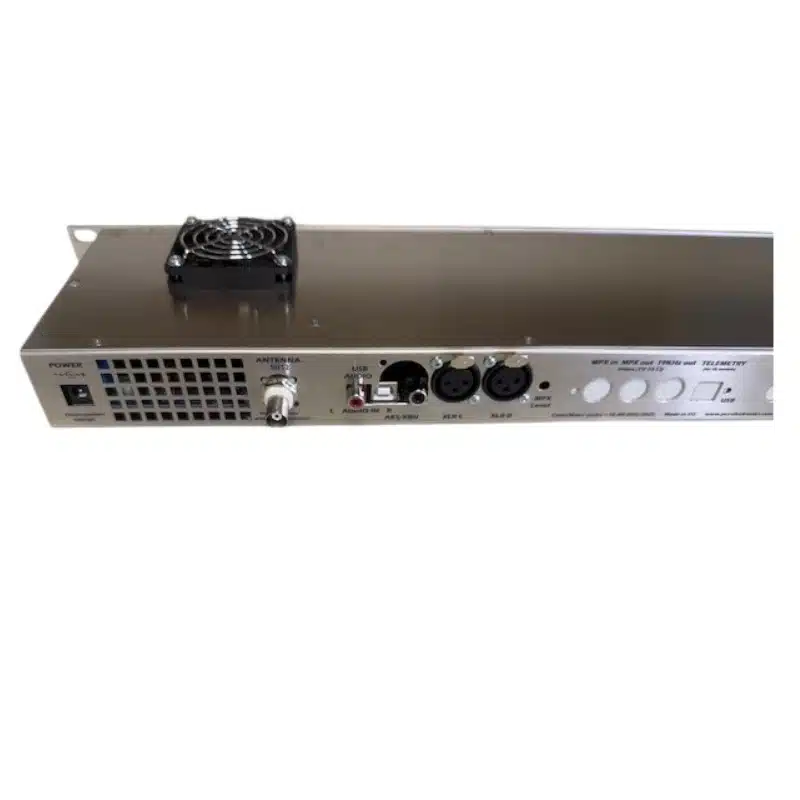

– Output connector: BNC (1H version)
– Output Impedance: 50 Ohms
– Frequency Range (MW version): 530-2000KHz
– Frequency Range (shortwave version): 160m, 80m, 40m (other SW bands also available, please ask)
– PLL Steps: 1KHz
– Frequency stability: +/- 50Hz
– RF output: Harmonics: -30dBc typ (varies with frequency, if necessary use external filter or high-q resonant antenna)
– RF output (spurious): -70dBc
– Power Supply: 48V/2.5A DC stabilized (1H rack)
– Wideband design, no tuning required
– Audio performance: compressor, low pass filter, limiter, treble, bass adjustment
– RF output ruggedness: > 2:1 VSWR
– Modulation: AM (CW input on-board. TTL 5V for disable)
– Exciter board inside: AMMAX8000 board, PCB size: 100x125mm

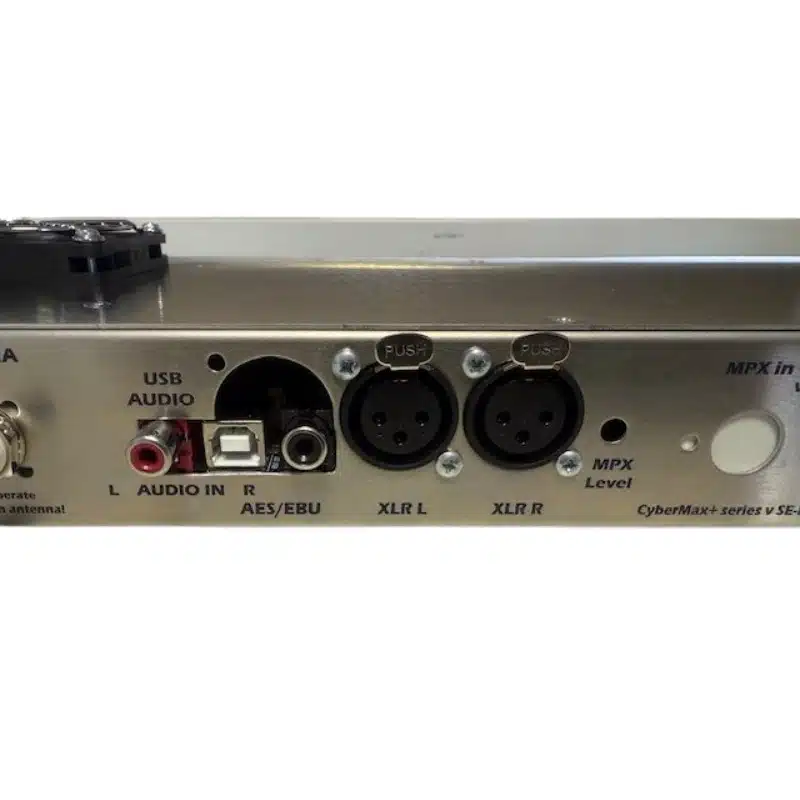

– Audio input board inside: 2x XLR, 2x RCA + USB audio inputs, accepts either mono or stereo signal (transmission is mono, channels are added up)
– DRM support: On-board jumper inside can disable DSP processing which is great for DRM modulation
– Modulation: AM, >125% positive mod
– PWM circuit is opto-isolated and can be used to drive high power external stage
