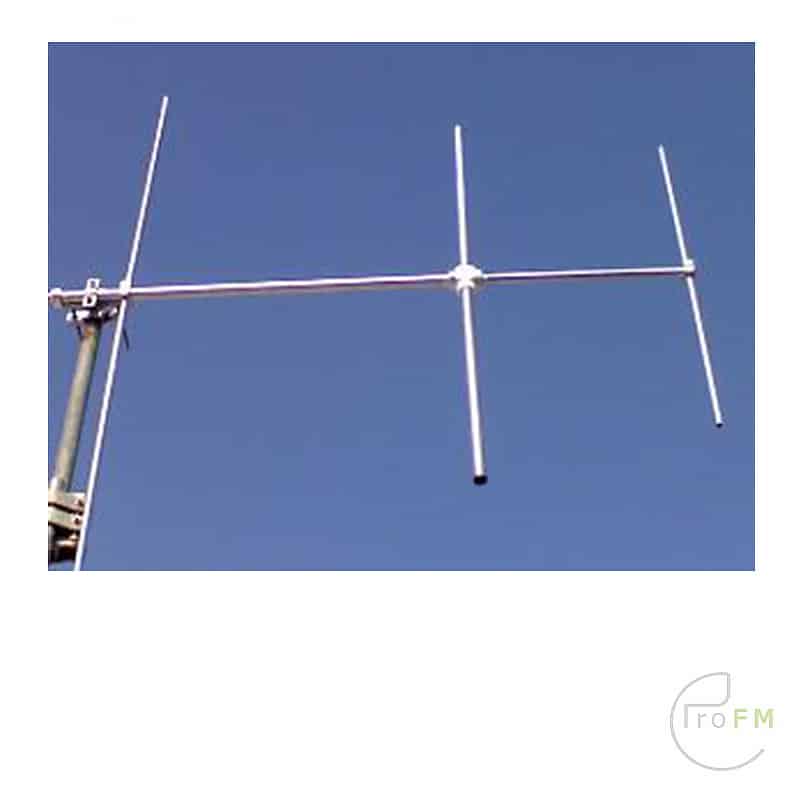

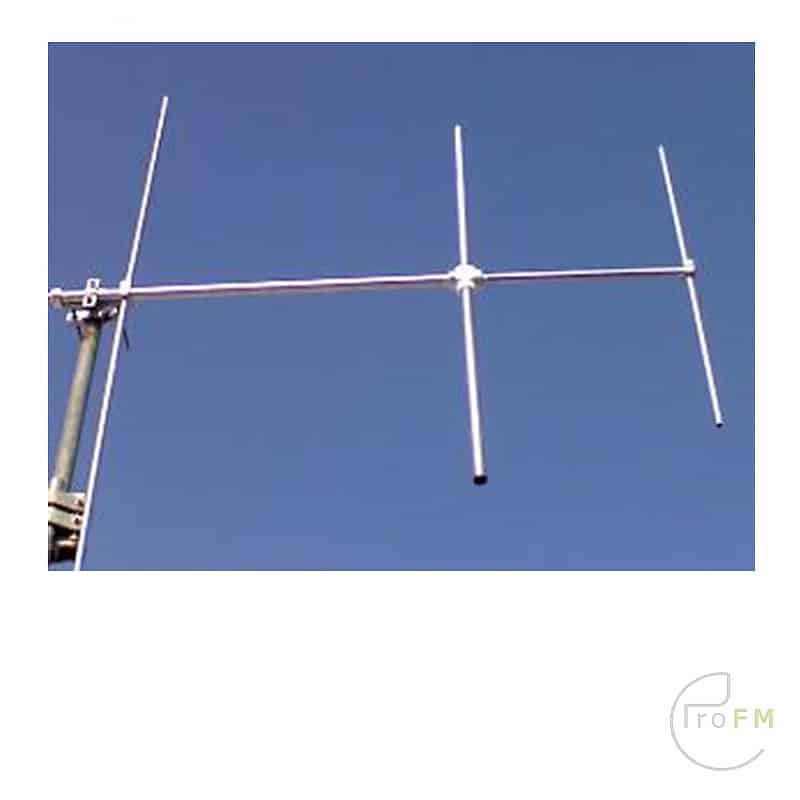

ProFM BBYG3 Broadband Yagi 3 Element FM Antenna

 450,00

ProFM BBYG3 Broadband Yagi 3 Element FM Antenna

This very sturdy antenna was created to be used by itself or as an element of a system made up of various units. ideal for medium and high power repeaters.

Shipping duration: 7 - 14 days

Antenne Material

Choose you material version

Standard version

Version in Steel

N-Connector

7/16 Connector

7/8 EIA Connector

Product price:  450,00
Total options:
Order total:
Category: SKU: 1202 Tag:

Description

ProFM BBYG3 Broadband Yagi 3 Element FM Antenna

A robust and versatile solution designed to excel as a standalone unit or as part of a larger system configuration.

Crafted with durability in mind, this antenna boasts a sturdy construction, ensuring reliability in any operating environment. Its unique design features a 90-degree radiation angle, providing optimal gain within a smaller coverage area. This makes it an ideal choice for medium and high-power repeaters, where precision and efficiency are paramount.

Equipped with various connectors to suit your specific requirements, the ProFM BBYG3 offers flexibility and compatibility. With a maximum input power of 2 kW and the option for a 7/8 connector, it can handle even higher power levels, up to an impressive 5 kW.

Available in both lightweight aluminum with gold-colored corrosion treatment and rugged stainless steel, this antenna caters to diverse installation needs. Its demountable design ensures easy shipping and hassle-free installation, saving you time and effort during setup.

Whether you’re setting up a new broadcasting system or upgrading an existing one, the ProFM BBYG3 Broadband Yagi 3 Element FM Antenna delivers unparalleled performance and versatility. Trust in its robust construction and precise engineering to elevate your broadcasting capabilities.

Experience the power and reliability of the ProFM BBYG3 – the ultimate choice for broadband Yagi antennas. Contact us today to learn more about how the ProFM BBYG3 can enhance your broadcasting infrastructure and maximize your reach.

Max Power: 600 Watt – N-Connector
Max Power: 2000 Watt – 7/16 Connector
Max Power: 5000 Watt – 7/8 connector
Gain (at mid band, ref. to Λ /2 dipole) 4,5 dB
VSWR (in the whole band) < 1.2 :1
Impedance 50 &Omega
Wind load (ref 150 Km/h): Frontal 75 Kg
Max Wind Velocity:200 km/p/h
Grounding:Via clamps

MOUNTING: WHITH STANDARD -CLAMP 50-110 MM.

WEIGHT: Kg. 13.5 STAINLESS STEEL

DIMENSIONS: 1365X1150X60 MM.

Description

ProFM BBYG3 Broadband Yagi 3 Element FM Antenna

A robust and versatile solution designed to excel as a standalone unit or as part of a larger system configuration.

Crafted with durability in mind, this antenna boasts a sturdy construction, ensuring reliability in any operating environment. Its unique design features a 90-degree radiation angle, providing optimal gain within a smaller coverage area. This makes it an ideal choice for medium and high-power repeaters, where precision and efficiency are paramount.

Equipped with various connectors to suit your specific requirements, the ProFM BBYG3 offers flexibility and compatibility. With a maximum input power of 2 kW and the option for a 7/8 connector, it can handle even higher power levels, up to an impressive 5 kW.

Available in both lightweight aluminum with gold-colored corrosion treatment and rugged stainless steel, this antenna caters to diverse installation needs. Its demountable design ensures easy shipping and hassle-free installation, saving you time and effort during setup.

Whether you’re setting up a new broadcasting system or upgrading an existing one, the ProFM BBYG3 Broadband Yagi 3 Element FM Antenna delivers unparalleled performance and versatility. Trust in its robust construction and precise engineering to elevate your broadcasting capabilities.

Experience the power and reliability of the ProFM BBYG3 – the ultimate choice for broadband Yagi antennas. Contact us today to learn more about how the ProFM BBYG3 can enhance your broadcasting infrastructure and maximize your reach.

Specifications

Max Power: 600 Watt – N-Connector
Max Power: 2000 Watt – 7/16 Connector
Max Power: 5000 Watt – 7/8 connector
Gain (at mid band, ref. to Λ /2 dipole) 4,5 dB
VSWR (in the whole band) < 1.2 :1
Impedance 50 &Omega
Wind load (ref 150 Km/h): Frontal 75 Kg
Max Wind Velocity:200 km/p/h
Grounding:Via clamps

MOUNTING: WHITH STANDARD -CLAMP 50-110 MM.

WEIGHT: Kg. 13.5 STAINLESS STEEL

DIMENSIONS: 1365X1150X60 MM.

Additional information

Weight 7 kg
Dimensions 170 × 20 × 20 cm
