Description

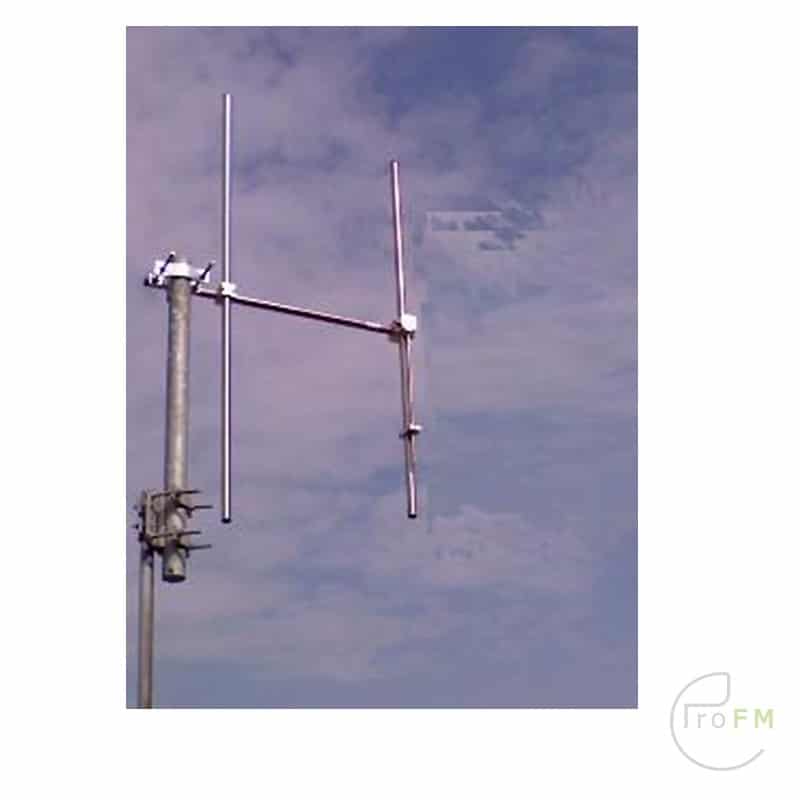

ProFM TY2 Tuned 2 Element Yagi FM Antenna
This narrowband tuned FM antenna is specially made for your broadcast frequency and is available in two versions: aluminum and stainless steel.
The solid construction makes it ideal for local, low power stations, but also suitable for medium and high power systems by using a different connector.
With the different input connectors, the antenna can handle the following powers: 500w with an “N” connector, 2 kW with a 7/16 connector and 3 kW with a 7/8 connector. choose your desired configuration easy.
This type of antenna is recommended for stations that want to broadcast in a targeted manner.
Features:
- Yagi 2 elements tuned antenna.
- Vertical or horizontal polarization.
- Bandwidth 0.2 MHz.
- Directional radiation pattern.
- Stainless steel.
- Demountable.
WEIGHT: 4Kg.
IMPEDANCE: 50 ohm
MOUNTING: WHITH STANDARD CLAMP 50-110 mm .
FREQUENCY RANGE: 87.500-108 Mhz
HALF POWER BEAMWIDTH: E-Plane – 70° H-Plane – 131°
POLARIZATION: Vertical or Horizontal
BANDWIDTH: 0,5 Mhz
DIMENSIONS: 160 X 100 X 6 CM
GAIN: 5 dB (half wave dipole)
MATERIALS HARDWARE MOUNTING: STEEL GALVANIZED.
TYPICAL V.S.W.R: <1.2:1 ISULATOR: PTFE (TEFLON)
MAX. POWER: MEDIUM POWER 500 W H POWER 2 KW DIPOLE:
MATERIAL: ALUMINIUM OR STAINLESS STEEL
CONNECTOR TYPE: N female-7/16 or LC female- 7/8
WIND LOAD: Kg. 40 Km. 150Hora
