ProFM ECOCIR-DR Circulair FM Antenna INOX

Circularly polarized, made of stainless steel treated for extreme atmospheric conditions. The standard connector is a 7/16 female connector, The maximum antenna power is 2500 W with the 7/16 connector. Robust and solid antenna with a double radiation ring. Antenna is constructed out of stainless steel and is fully demountable for easy shipping

Max power: 2500W 7/16 female
Frequency: 87.5 – 108 Mhz Tuned.
VSWR: >1.1:1 +/- 100 Khz
Gain : -1,5 dB

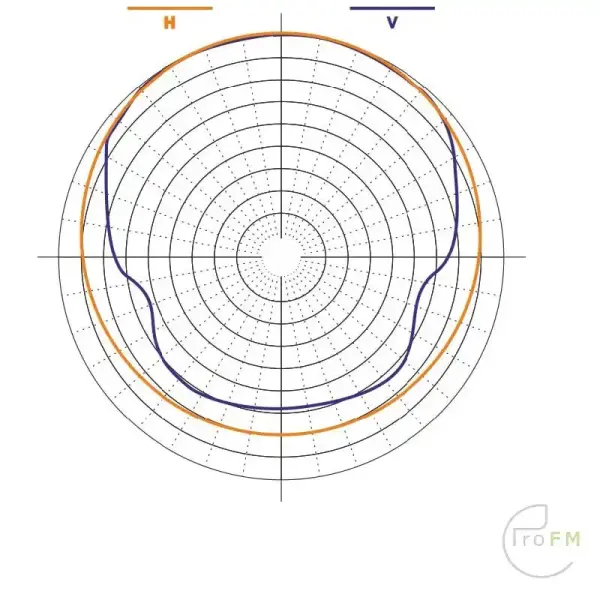

Polaritation:Circular omnidirectional
Weight: 5 Kgrms
Impedance: 50 Ohms
Wind load: 9 Kgrms @ 160 Km/h
Max wind speed:190 Km / h
Ligthning Protection; grounded
Vertical amplitude: 75º @ -3dB E plane
Mounting Brackets:Mast 30 / 70 mm

Dipoles – Vertical Amplitude
1 75º
2 38º
4 19º
6 15º
8 9º

Gain:

Dioples – Gain

1 -1,5dB

2 0dB

4 3,1dB

6 4,2dB

8 6dB

Description: ProFM ECOCIR-DR Circulair FM Antenna INOX

Circularly polarized, made of stainless steel treated for extreme atmospheric conditions. The standard connector is a 7/16 female connector, The maximum antenna power is 2500 W with the 7/16 connector. Robust and solid antenna with a double radiation ring. Antenna is constructed out of stainless steel and is fully demountable for easy shipping
Specifications: Max power: 2500W 7/16 female
Frequency: 87.5 – 108 Mhz Tuned.
VSWR: >1.1:1 +/- 100 Khz
Gain : -1,5 dB
Polaritation:Circular omnidirectional
Weight: 5 Kgrms
Impedance: 50 Ohms
Wind load: 9 Kgrms @ 160 Km/h
Max wind speed:190 Km / h
Ligthning Protection; grounded
Vertical amplitude: 75º @ -3dB E plane
Mounting Brackets:Mast 30 / 70 mm

Dipoles – Vertical Amplitude
1 75º
2 38º
4 19º
6 15º
8 9º

Gain:

Dioples – Gain

1 -1,5dB

2 0dB

4 3,1dB

6 4,2dB

8 6dB

Additional information

Weight	8 kg
Dimensions	100 × 40 × 20 cm
