ProFM TD2 FM Tuned Dipole stacked array of 2

 799,00

ProFM TD2 FM Tuned Dipole stacked array of 2

ProFM TD2 FM Tuned Dipole Narrowband tuned dipole antenna system suitable for most radiostations. To be manufactured on your broadcast frequency. Available in aluminium and stainless steel. Complete set of 2 antennas, powersplitter and coupling cables.

Description

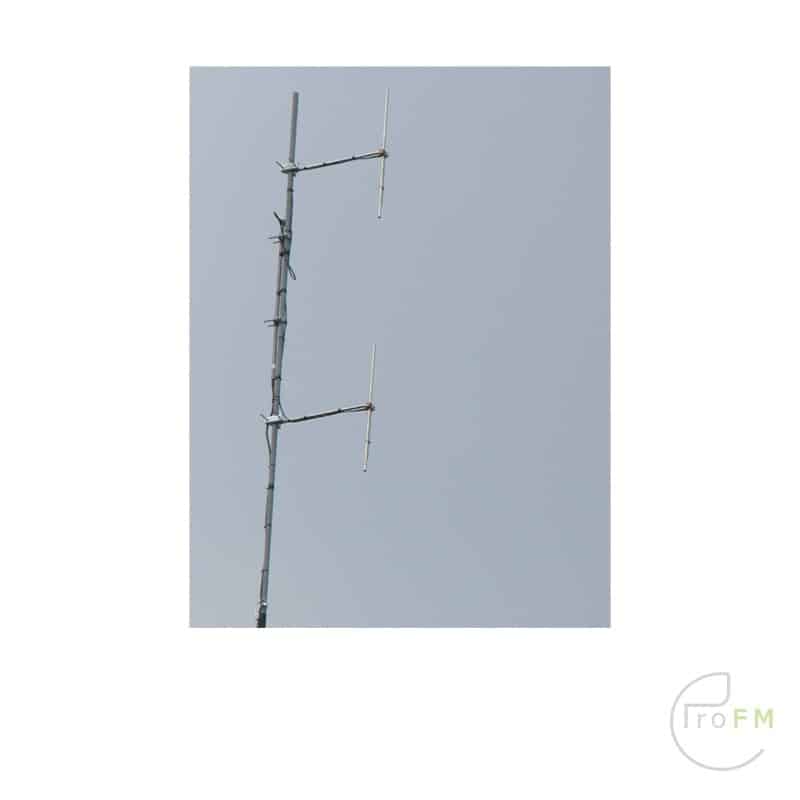

ProFM TD2 Tuned Radio Broadcast FM Dipole Antenna stacked array 2 way

Stacked array of 2 dipoles, powersplitter and coupling cables. ideal for local commercial or community station (most used system in the Netherlands)

This narowband dipole is antenna constructed in two versions: all alluminium, and all stainless steel.

Because of its construction it can support up to 800w with connector “”N””, 2 – kw of input power with the 7/16 , 3 – kw of 7/8.

This type of antenna is recomended for service of 360 degree . It’s specially manufactured on your desired broadcast frequency.

FREQUENCY RANGE 87.5 ÷ 108 MHz
IMPEDANCE 50 ohm
CONNECTOR N- 7/16 or EIA flange according to system power rating
POWER RATING The antenna system can accept any power according to requirements
VSWR ≤ 1.1 in the working frequency Antenna system VSWR value also depending from the supporting structure
POLARIZATION Vertical
GAIN 5,2 dB (3,31 x gain times)

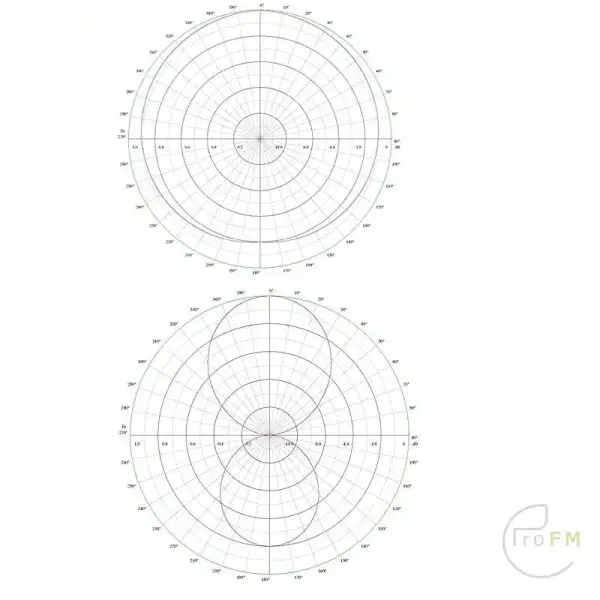

HORIZONTAL PATTERN Any type according to requirement
VERTICAL PATTERN Null fill, beam tilt and special requirements to order
Description

ProFM TD2 Tuned Radio Broadcast FM Dipole Antenna stacked array 2 way

Stacked array of 2 dipoles, powersplitter and coupling cables. ideal for local commercial or community station (most used system in the Netherlands)

This narowband dipole is antenna constructed in two versions: all alluminium, and all stainless steel.

Because of its construction it can support up to 800w with connector “”N””, 2 – kw of input power with the 7/16 , 3 – kw of 7/8.

This type of antenna is recomended for service of 360 degree . It’s specially manufactured on your desired broadcast frequency.

Specifications
FREQUENCY RANGE 87.5 ÷ 108 MHz
IMPEDANCE 50 ohm
CONNECTOR N- 7/16 or EIA flange according to system power rating
POWER RATING The antenna system can accept any power according to requirements
VSWR ≤ 1.1 in the working frequency Antenna system VSWR value also depending from the supporting structure
POLARIZATION Vertical
GAIN 5,2 dB (3,31 x gain times)
HORIZONTAL PATTERN Any type according to requirement
VERTICAL PATTERN Null fill, beam tilt and special requirements to order

Additional information

Weight 25 kg
Dimensions 170 × 17 × 17 cm
