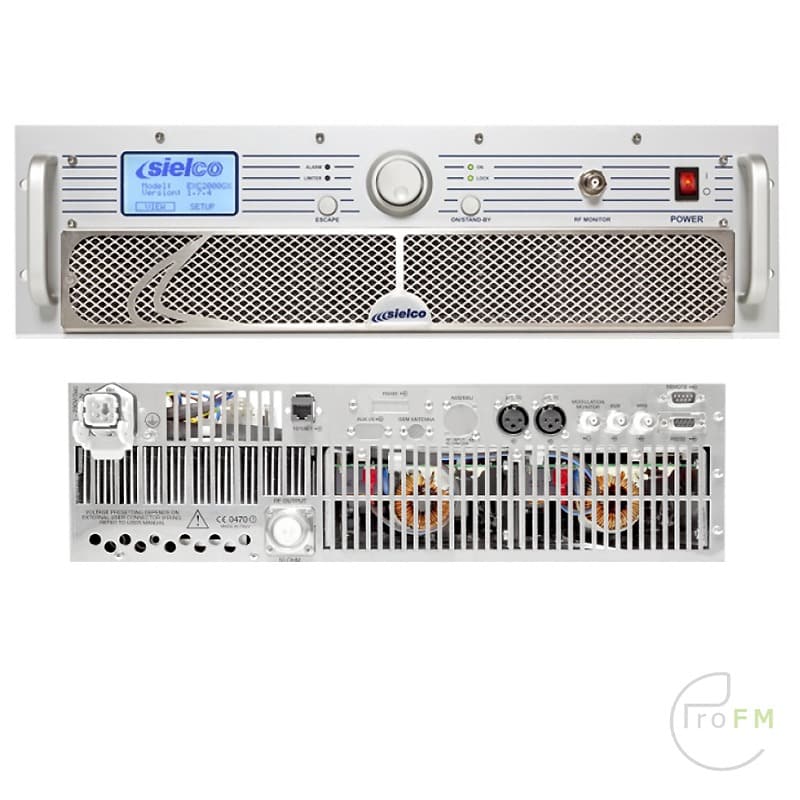

SielCo EXC2000GX FM Transmitter 2 KW / 2000 Watt

The EXC2000GX is Sielco’s 2 kW model. The EXC2000GX is also convenient during installation: it works in an instant and is easy to set up using an intuitive operating interface common to all GT models, equipped with a common graphic LCD screen, a practical multifunction button, and several other keys.

This basic digital version can even be expanded with other important options such as telemetry/remote control via GSM cellular networks, the Ethernet cable with SNPM protocol, the high-quality stereo encoder, the digital audio input compliant with the AES/EBU directive, and the RS232/485 serial remote control ports that enable normal integration with other machines in a system. The modern and relevant design of GX transmitters incorporates a modular design philosophy aimed at reducing the number of maintenance interventions and lowering relevant costs. All of this is complemented by contact with the sales department, which has the utmost confidence in the sales process.

Features:

• Digital control
• Compact chassis
• Flexible frequency – The user can select a channel between 87.6 MHz and 108 MHz.
• Auto Power Control – Output power is maintained at the level you select, both for power and as displayed on the front panel.
• Display – Blue colored screen for ambient display of all parameters in bright light conditions.
• Transmitter complies with CCIR EN FCC standards.
• Extensive transmitter protection minimizes system failure. Audio/MPX input level adjustable -3.5 ÷ 12.5 dBm
• Adjustable in 10 kHz increments
• Pre-enphasis 50 ~s ±3% (0, 25, 50, 75 ~s selectable)
• Audio/MPX input impedance 10k/600 ohm balanced
• Deviation limiter adjustable from 0 to 7dB

TECHNICAL SPECIFICATIONS
Frequency range: from 87.5 to 108 MHz
Transmitter tuning steps: 10/100 kHz
Frequency stability/error: ± 250 Hz over temperature range – 100 Hz/year
Modulation: FM 75 kHz peak, adjustable (180 kHz 3E/256 kHz 8E)
Audio and MPX input level: from -3.5 to +12.5 dBm @ 75 kHz deviation
Auxiliary input channel level: SCA from -12.5 to +3.5 dBm @ 7.5 kHz deviation
RDS: from -24 to -8 dBm @ 2 kHz deviation
Modulation distortion: 75 kHz deviation <0.03%, 0.02% typical
S/N ratio, mono 30÷20000Hz >76 dB, 83 typical
CCIR >75 dB, 79 typical
S/N ratio, stereo 30÷20000Hz >72 dB, 77 typical
CCIR >68 dB, 72 typical
Audio channel frequency response: 30÷15000 Hz ±0.1 dB
MPX input frequency response: 30÷100000 Hz ±0.1 dB
Pre-emphase time constant: 0/50/75 μs selectable
Nominal RF output power: 2000W
RF driver power 25W
Output power ALC stability ±3%
Harmonic and interference emissions: <70dB (harmonic), <80 dBc (interference)
RF output connector: 7/16″
Power supply: Single-phase 230 Vac +10/-15%
Three-phase: 230Vac 3 wires, 400Vac 3+N +10/-15%.
Total consumption at nominal RF power: 2800W typ. 3200W max.
Efficiency: > 67% typical
Operating temperature range: recommended from 0 to 35 °C
extreme: from -10 to +45 °C (50 °C max with derating)
Relative humidity: up to 95% non-condensing
Dimensions (WxHxD): 483x133x586 mm
Weight: 21kg
