Description

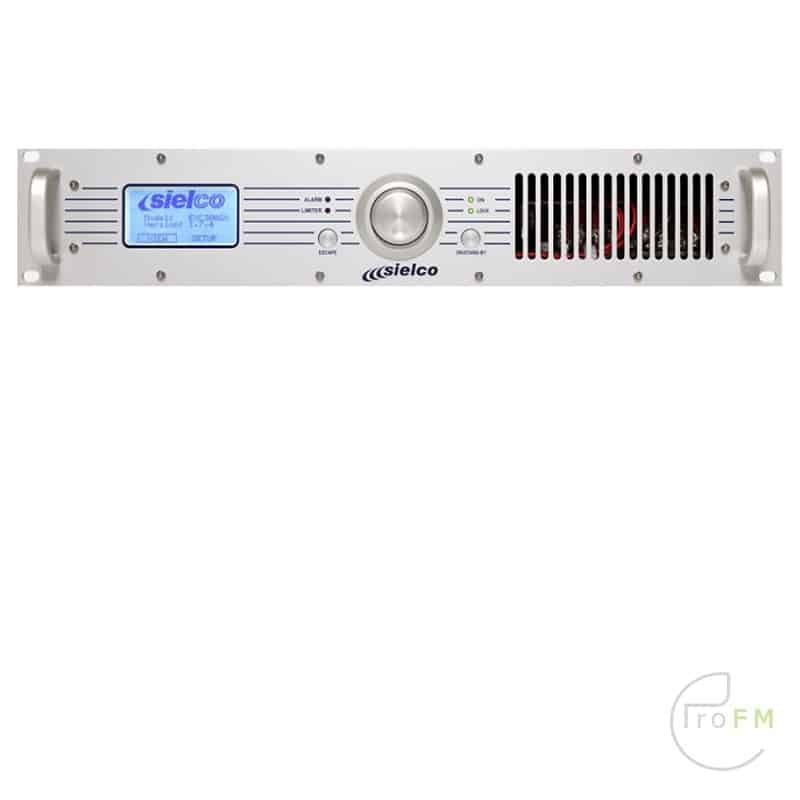

SielCo EXC FM Transmitter 300 Watts
The EXC300GX is the 300W rated model of the innovative GX Transmitter family appreciated for their great efficiency and versatility, due to 3 intrinsic factors: decreased weight, minimal size and reduced consumptions. As per all the GT devices, deciding to buy a EXC300GX represents a winning choice because it allows to obtain remarkable benefits for all the product life. Once bought, it ensures savings on the transport costs and rent burdens of the station where it is installed only for its small size and weight. Even more important, also during its normal job it pays back day by day, thanks to the lowest electrical costs of its class which minimize the electric bill.
The Sielco EXC300GX is convenient also at the moment of the installation: it is operative in a blink and it is easy to set up thanks to an intuitive control interface – common to all GX models – equipped of a detailed LCD graphic display, a multifunction practical knob and few other buttons. This remarkable basic flexibility can be even increased by other important options, as the Telemetry / Remote Control System possible through GSM cellular networks, the Ethernet connectivity with SNMP protocol, the high quality Stereo Encoder, the Digital Audio input conforming to the AES/EBU directive and the RS232/485 Serial Remote Control ports which enable an easier integration with other machines in a system.
The modern and attractive shape of GX transmitters reflects the trustable modular project philosophy aimed to reduce the number of maintenance interventions and make them easier to minimize the relevant costs. All that is completed by an efficient Sielco post-sale service, ensuring the best trust for the final user. For all the product life.
Features
- Digital control
- Compact Chasis
- Frequency Agile – User can select any channel from 87.6 MHz to 108MHz.
- Auto Power Control – Output power is maintained at your selected level, both forward and reflected power are diplayed on the front panel.
- Display -Blue coloredscreen provide easy viewing off all parameters under high ambient light.
- Transmitter fulfils CCIR AND FCC standards.
- Extensive transmitter protection minimizes system downtime.
- Audio/mpx input level -3.5 ÷ 12.5 dBm adjustable
- Adjustable at 10kHz steps
- Pre-enphasis 50 ~s ±3% (0, 25, 50, 75 ~s selectable)
- Audio/mpx input impedance 10k/600 ohm balanced
- Deviation limiter from 0 to 7dB adjustable
Afstemstappen zender: 10/100 kHz
Frequentiestabiliteit/fout: ± 250 Hz over temperatuurbereik – 100 Hz/jaar
Modulatie: FM 75 kHz piek, instelbaar (180KF3E/256KF8E)
Audio- en Mpx-ingangsniveau: van -3,5 tot 12,5 dBm bij 75 kHz Controle
Hulpingangskanaalniveau
SCA: van -12,5 tot 3,5 dBm bij 7,5 kHz
RDS: van -24 tot -8 dBm bij 2 kHz karakteristieke
Modulatievervorming: 75 kHz <0,03%, 0,02% typische
S/N-verhouding, mono: 30÷20000Hz >76 dB, 83 typische
CCIR: >75 dB, 79 typische
S/N-verhouding, stereo: 30÷20000Hz >72 dB, 77 typische
CCIR: >68 dB, 72 typische
Frequentiebereik audiokanalen: 30÷15000 Hz ±0,1 dB
Frequentiebereik MPX-ingang: 30÷100000 Hz ±0,1 dB
Pre-emphasis tijdconstante: 25/50/75 μs geselecteerdbaar
Nominaal RF-uitgangsvermogen: 300W
ALC-stabiliteit uitgangsvermogen: ±3%
Harmonische en storende emissie: <70 dB (harmonisch), <80 dBc (spurious)
RF-uitgangsconnector: N
Voeding: Eenfasig 115÷230 Vac 10/-15%
Driefase NA
Totaal bij nominaal RF-vermogen: <550W (EXC300GX)
Aanbevolen bedrijfstemperatuurbereik van 0 tot 35 °C,
extreem van -10 tot 45 °C (max. 50 °C met vermogensreductie)
Relatieve verbruikt: tot 95% niet-condenserend
Afmetingen (BxHxD): 483x88x395 mm
Gewicht: 8 kg (EXC300GX)
