Axia IQ 6 Faders Digital Expansion Frame

Axia IQ 6 Faders Digital Expension Frame

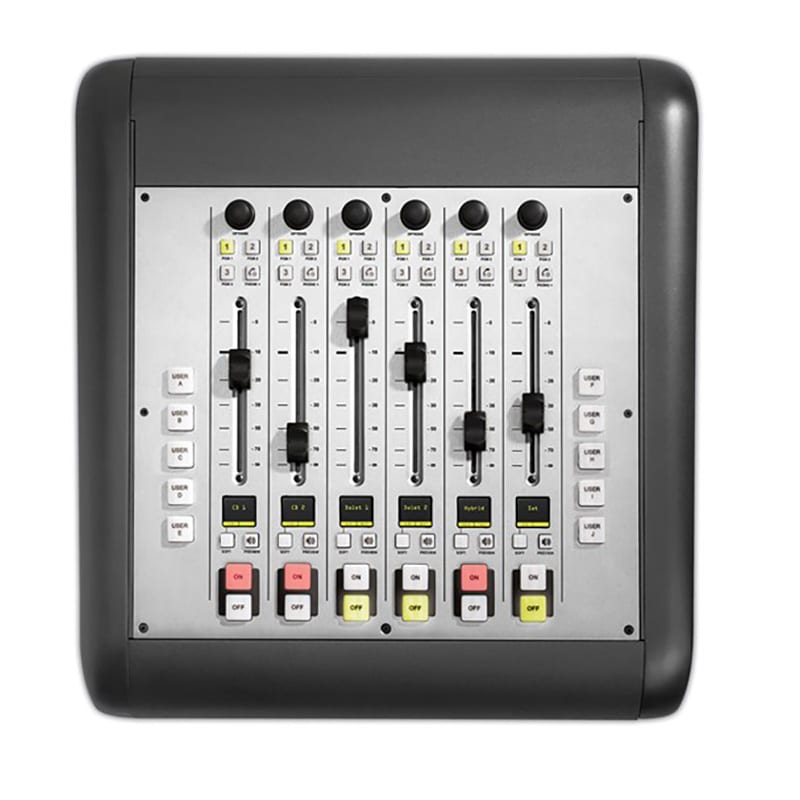

The IQ 6 Fader Expansion frame with Usser Buttons plugs in to the IQ Core using the available CANbus connector. Adds six faders to your IQ main frame, plus ten buttons for control of your GPIO closures to pheriphial audio devices.

Category: SKU: 515 Tags:

Description

Axia IQ 6 Faders Digital Expansion Frame
The Axia IQ 6-Fader Expansion Frame with User Buttons, a versatile addition engineered to enhance your broadcasting setup. Seamlessly connecting to the IQ Core via the available CANbus connector, this expansion frame effortlessly expands your control options. With six additional faders integrated into your IQ main frame, along with ten user buttons for GPIO closure control of peripheral audio devices, you gain unprecedented command over your audio workflow.

Crafted with precision and durability in mind, this expansion frame features 100mm conductive plastic faders, aircraft-quality switches, and LED key backlighting for enhanced visibility and tactile feedback. Whether placed on a desk surface or mounted drop-in style, its ergonomic design ensures seamless integration into your workspace.

Furthermore, the Axia Expansion Frame offers flexibility in configuration, allowing IQ frames to be physically joined using the included hardware, ensuring a cohesive and streamlined setup.

Experience enhanced control and efficiency in your broadcasting operations with the Axia IQ 6-Fader Expansion Frame with User Buttons. Elevate your audio workflow today and unlock new possibilities for your broadcasting endeavors.

SPECIFICATIONS QOR.32

Connections
• Microphone Inputs: 4x balanced XLR-F, with selectable Phantom power
• Analog Inputs: 16x RJ-45, StudioHub+ standard. • Analog Outputs: 8x RJ-45, StudioHub+ standard.
• AES/EBU Inputs: 2x RJ-45, StudioHub+ standard. • AES/EBU Outputs: 2x RJ-45, StudioHub+ standard.
• GPIO: 8x DB-15 • Livewire:
• 4x 100BASE-T with PoE, RJ-45
• 2x 100BASE-T, RJ-45 • 2x 1000BASE-T, RJ-45
• 2x Gigabit, SFP (Small Form Pluggable) • Console Frame Connections: 3x, 6-pin “latch and lock” style
• Accessory Connections: 1x, 6-pin “latch and lock” style

Microphone Preamplifiers
• Source Impedance: 150 Ohms • Input Impedance: 4 k Ohms minimum, balanced
• Nominal Level Range: Adjustable, -75 dBu to -20 dBu
• Input Headroom: >20 dB above nominal input
• Output Level: +4 dBu, nominal Analog Line Inputs
• Input Impedance: 20 k Ohms
• Nominal Level Range: Selectable, +4 dBu or -10dBv
• Input Headroom: 20 dB above nominal input

Analog Line Outputs
• Output Source Impedance: <50 Ohms balanced
• Output Load Impedance: 600 Ohms, minimum • Nominal Output Level: +4 dBu
• Maximum Output Level: +24 dBuAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Digital Audio Inputs And Outputs
• Reference Level: +4 dBu (-20 dB FSD)
• Impedance: 110 Ohm, balanced (XLR)
• Signal Format: AES-3 (AES/EBU)
• AES-3 Input Compliance: 24-bit with selectable sample rate conversion, 20 kHz to 216kHz input sample rate capable.
• AES-3 Output Compliance: 24-bit
• Digital Reference: Internal (network timebase) or external reference 48 kHz, +/- 2 ppm
• Internal Sampling Rate: 48 kHz
• Output Sample Rate: 48 kHz
• A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling
• D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling
• Latency <3 ms, mic in to monitor out, including network and processor loop

Frequency Response
• Any input to any output: +0.5 / -0.5 dB, 20 Hz to 20 kHz

Dynamic Range
• Analog Input to Analog Output: 102 dB referenced to 0 dBFS, 105 dB “A” weighted to 0 dBFS
• Analog Input to Digital Output: 105 dB referenced to 0 dBFS
• Digital Input to Analog Output: 103 dB referenced to 0 dBFS, 106 dB “A” weighted
• Digital Input to Digital Output: 125 dB Equivalent Input Noise
• Microphone Preamp: -128 dBu, 150 Ohm source, reference -50 dBu input level Total

Harmonic Distortion + Noise
• Mic Pre Input to Analog Line Output: <0.005%, 1 kHz, -38 dBu input, +18 dBu output
• Analog Input to Analog Output: <0.008%, 1 kHz, +18 dBu input, +18 dBu output
• Digital Input to Digital Output: <0.0003%, 1 kHz, -20 dBFS
• Digital Input to Analog Output: <0.005%, 1 kHz, -6 dBFS input, +18 dBu outputAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Crosstalk Isolation, Stereo Separation And CMRR
• Analog Line channel to channel isolation: 90 dB isolation minimum, 20 Hz to 20 kH
• Microphone channel to channel isolation: 80 dB isolation minimum, 20 Hz to 20 kHz
• Analog Line Stereo separation: 85 dB isolation minimum, 20Hz to 20 kHz
• Analog Line Input CMRR: >50 dB, 20 Hz to 20 kHz Microphone Input CMRR: >50 dB, 20 Hz to 20 kHz

Audio Processing
• Mic Equalizer (applicable to up to 6 faders)
• Frequency Bands: 20Hz to 320Hz, 125Hz to 2KHz, 1.25KHz to 20KHz.
• Cut/Boost range on each band: -25dB to +15dB.
• Q-factor: Automatic – bandwidth varies based on amount of cut or boost.

Power Supply AC Input, QOR.32 with iQ Console
• Auto-sensing supply, 90VAC to 240VAC, 50 Hz to 60 Hz, IEC receptacle, internal fuse
• Power consumption: 100 Watts Operating

Temperatures
• -10 degrees C to +40 degrees C, <90% humidity, no condensation

Dimensions
• iQ Main Frame 20.5” x 19” x 4.5” (52,07 cm x 48,26 cm x 11,43 cm) (desktop to meter bridge)
• iQ Expansion Frames 17.5” x 18.25” x 3”(44,45 cm x 46,36 cm x 7,62 cm) (desktop to tallest control)

Description

Axia IQ 6 Faders Digital Expansion Frame
The Axia IQ 6-Fader Expansion Frame with User Buttons, a versatile addition engineered to enhance your broadcasting setup. Seamlessly connecting to the IQ Core via the available CANbus connector, this expansion frame effortlessly expands your control options. With six additional faders integrated into your IQ main frame, along with ten user buttons for GPIO closure control of peripheral audio devices, you gain unprecedented command over your audio workflow.

Crafted with precision and durability in mind, this expansion frame features 100mm conductive plastic faders, aircraft-quality switches, and LED key backlighting for enhanced visibility and tactile feedback. Whether placed on a desk surface or mounted drop-in style, its ergonomic design ensures seamless integration into your workspace.

Furthermore, the Axia Expansion Frame offers flexibility in configuration, allowing IQ frames to be physically joined using the included hardware, ensuring a cohesive and streamlined setup.

Experience enhanced control and efficiency in your broadcasting operations with the Axia IQ 6-Fader Expansion Frame with User Buttons. Elevate your audio workflow today and unlock new possibilities for your broadcasting endeavors.

Specifications

SPECIFICATIONS QOR.32

Connections
• Microphone Inputs: 4x balanced XLR-F, with selectable Phantom power
• Analog Inputs: 16x RJ-45, StudioHub+ standard. • Analog Outputs: 8x RJ-45, StudioHub+ standard.
• AES/EBU Inputs: 2x RJ-45, StudioHub+ standard. • AES/EBU Outputs: 2x RJ-45, StudioHub+ standard.
• GPIO: 8x DB-15 • Livewire:
• 4x 100BASE-T with PoE, RJ-45
• 2x 100BASE-T, RJ-45 • 2x 1000BASE-T, RJ-45
• 2x Gigabit, SFP (Small Form Pluggable) • Console Frame Connections: 3x, 6-pin “latch and lock” style
• Accessory Connections: 1x, 6-pin “latch and lock” style

Microphone Preamplifiers
• Source Impedance: 150 Ohms • Input Impedance: 4 k Ohms minimum, balanced
• Nominal Level Range: Adjustable, -75 dBu to -20 dBu
• Input Headroom: >20 dB above nominal input
• Output Level: +4 dBu, nominal Analog Line Inputs
• Input Impedance: 20 k Ohms
• Nominal Level Range: Selectable, +4 dBu or -10dBv
• Input Headroom: 20 dB above nominal input

Analog Line Outputs
• Output Source Impedance: <50 Ohms balanced
• Output Load Impedance: 600 Ohms, minimum • Nominal Output Level: +4 dBu
• Maximum Output Level: +24 dBuAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Digital Audio Inputs And Outputs
• Reference Level: +4 dBu (-20 dB FSD)
• Impedance: 110 Ohm, balanced (XLR)
• Signal Format: AES-3 (AES/EBU)
• AES-3 Input Compliance: 24-bit with selectable sample rate conversion, 20 kHz to 216kHz input sample rate capable.
• AES-3 Output Compliance: 24-bit
• Digital Reference: Internal (network timebase) or external reference 48 kHz, +/- 2 ppm
• Internal Sampling Rate: 48 kHz
• Output Sample Rate: 48 kHz
• A/D Conversions: 24-bit, Delta-Sigma, 256x oversampling
• D/A Conversions: 24-bit, Delta-Sigma, 256x oversampling
• Latency <3 ms, mic in to monitor out, including network and processor loop

Frequency Response
• Any input to any output: +0.5 / -0.5 dB, 20 Hz to 20 kHz

Dynamic Range
• Analog Input to Analog Output: 102 dB referenced to 0 dBFS, 105 dB “A” weighted to 0 dBFS
• Analog Input to Digital Output: 105 dB referenced to 0 dBFS
• Digital Input to Analog Output: 103 dB referenced to 0 dBFS, 106 dB “A” weighted
• Digital Input to Digital Output: 125 dB Equivalent Input Noise
• Microphone Preamp: -128 dBu, 150 Ohm source, reference -50 dBu input level Total

Harmonic Distortion + Noise
• Mic Pre Input to Analog Line Output: <0.005%, 1 kHz, -38 dBu input, +18 dBu output
• Analog Input to Analog Output: <0.008%, 1 kHz, +18 dBu input, +18 dBu output
• Digital Input to Digital Output: <0.0003%, 1 kHz, -20 dBFS
• Digital Input to Analog Output: <0.005%, 1 kHz, -6 dBFS input, +18 dBu outputAxia iQ | The Smarter IP Console TelosAlliance.com/Axia/iQ

Crosstalk Isolation, Stereo Separation And CMRR
• Analog Line channel to channel isolation: 90 dB isolation minimum, 20 Hz to 20 kH
• Microphone channel to channel isolation: 80 dB isolation minimum, 20 Hz to 20 kHz
• Analog Line Stereo separation: 85 dB isolation minimum, 20Hz to 20 kHz
• Analog Line Input CMRR: >50 dB, 20 Hz to 20 kHz Microphone Input CMRR: >50 dB, 20 Hz to 20 kHz

Audio Processing
• Mic Equalizer (applicable to up to 6 faders)
• Frequency Bands: 20Hz to 320Hz, 125Hz to 2KHz, 1.25KHz to 20KHz.
• Cut/Boost range on each band: -25dB to +15dB.
• Q-factor: Automatic – bandwidth varies based on amount of cut or boost.

Power Supply AC Input, QOR.32 with iQ Console
• Auto-sensing supply, 90VAC to 240VAC, 50 Hz to 60 Hz, IEC receptacle, internal fuse
• Power consumption: 100 Watts Operating

Temperatures
• -10 degrees C to +40 degrees C, <90% humidity, no condensation

Dimensions
• iQ Main Frame 20.5” x 19” x 4.5” (52,07 cm x 48,26 cm x 11,43 cm) (desktop to meter bridge)
• iQ Expansion Frames 17.5” x 18.25” x 3”(44,45 cm x 46,36 cm x 7,62 cm) (desktop to tallest control)

Additional information

Weight 6,5 kg
Dimensions 44,45 × 46,36 × 7,62 cm

Brand

Axia Audio
