D&R Airence 12 Fader USB Broadcast Mixer

 3.599,00

D&R Airence 12 Fader USB Broadcast Mixer

TheD&R Airence 12 Fader USB Broadcast Radio / Production Mixer is the slightly bigger brother of the Airmate mixer. The perfect mixer for small to medium local broadcasting, Internetradio or home studio.

Select an option:

De D&R Airence is availlable in these configurations:

D&R Airmate 8 With 2 x VoIP Hybrids

D&R Airmate 8 With 2 x POTS Hybrids

D&R Airmate 8 With 2 x Bluetooth Hybrids

D&R Airmate 8 With 1 x VoIP & 1 X POTS Hybrid

D&R Airmate 8 With 1 x Bluetooth & 1 X VoIP Hybrid

D&R Airmate 8 With 1 x Bluetooth & 1 X POTS Hybrid

AES / EBU Option

Digital output option

AES / EBU Digital output option

Analog Outputs

Product price:  3.599,00
Total options:
Order total:

Description

D&R Airence 12 Fader USB Broadcast Mixer /console

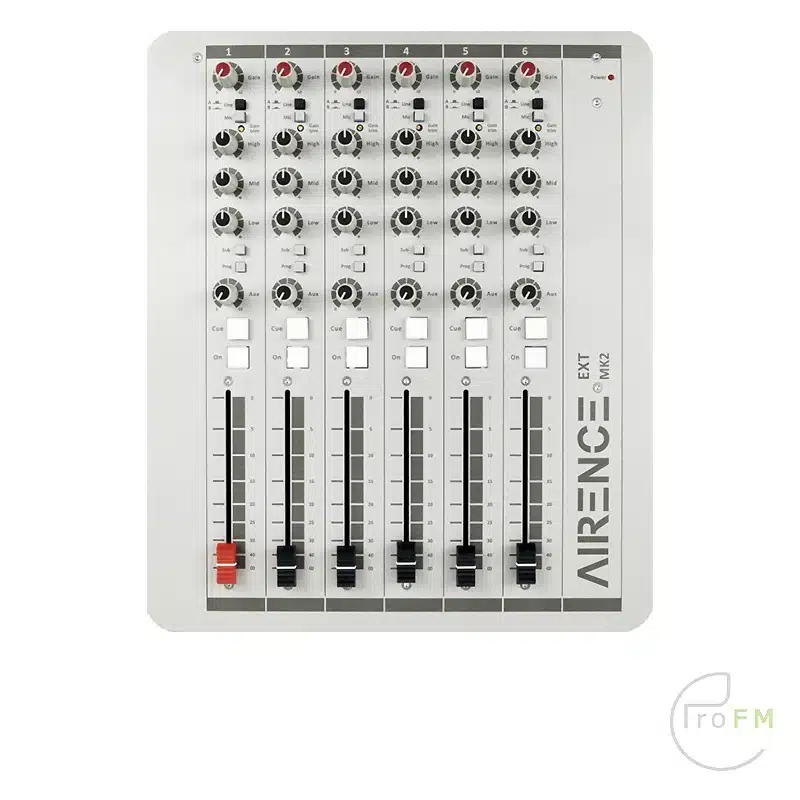

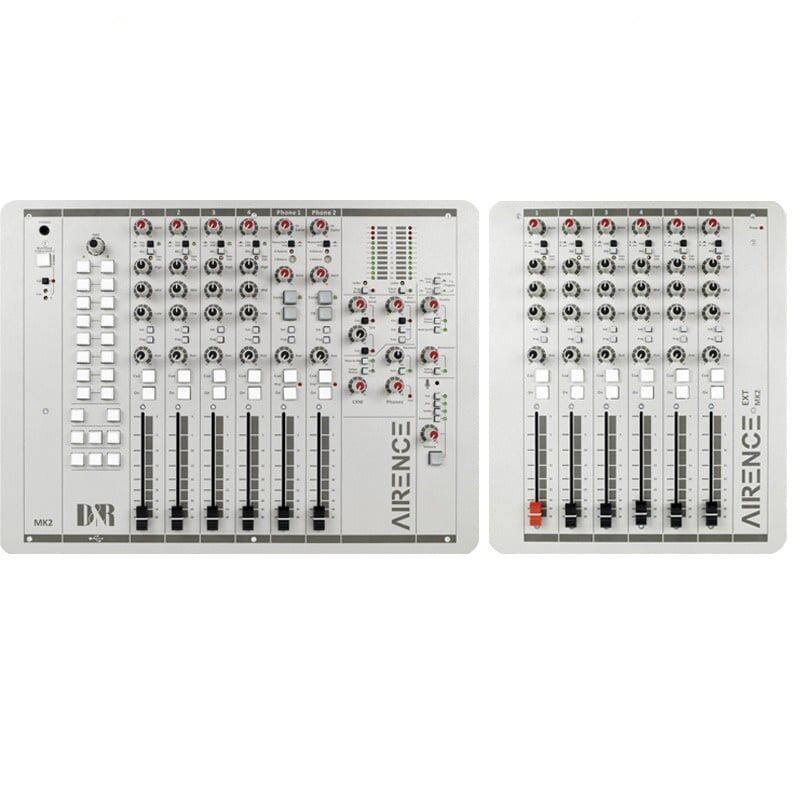

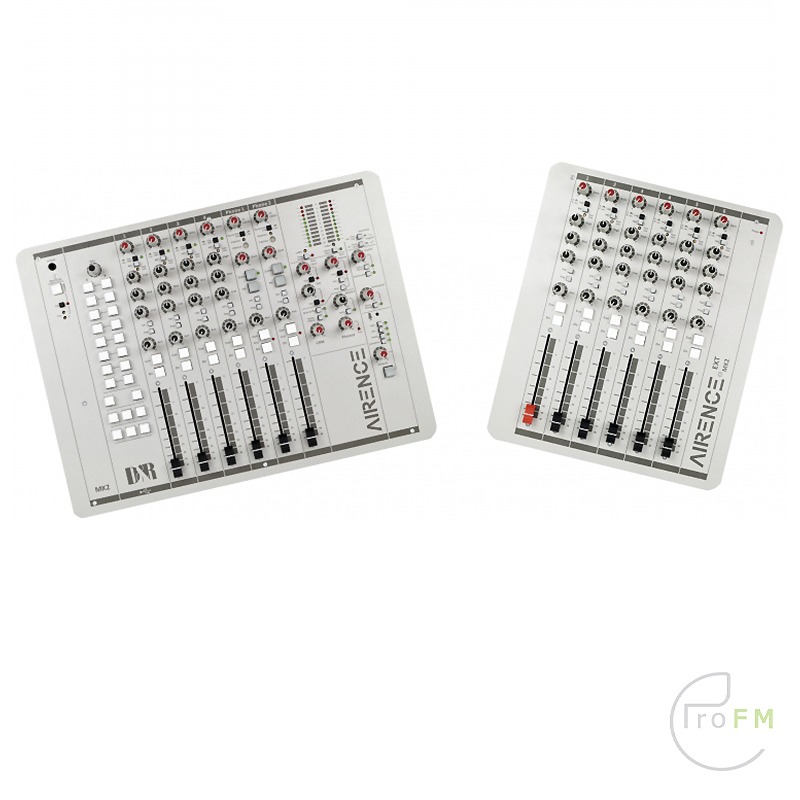

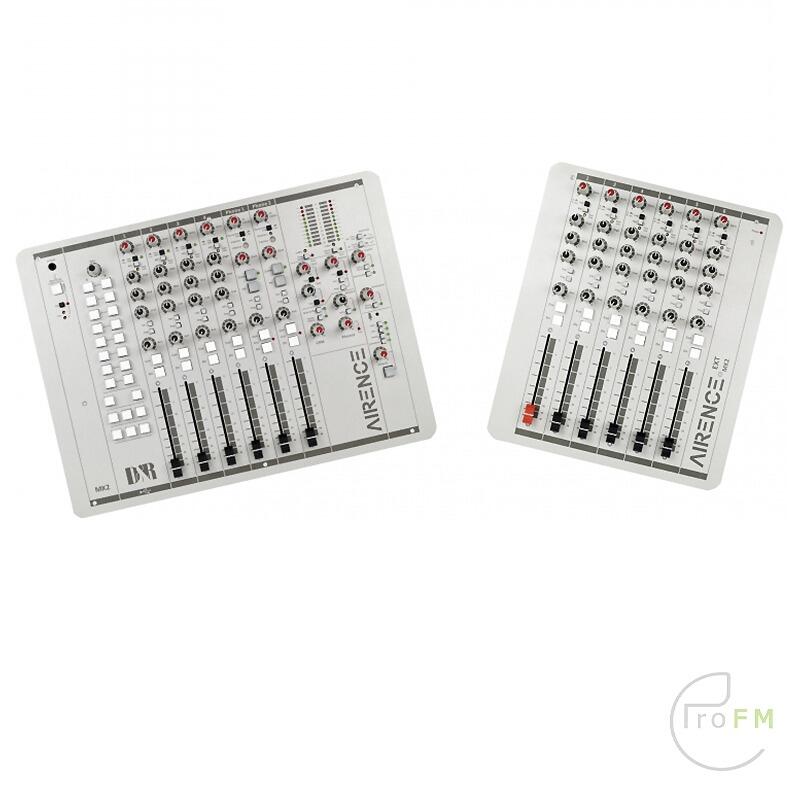

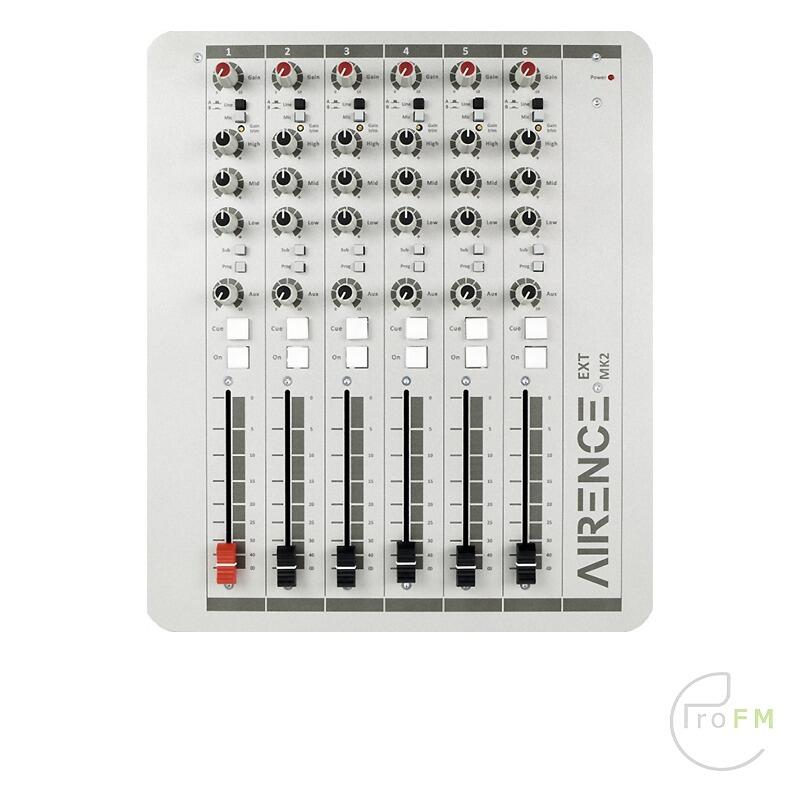

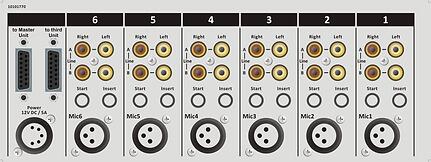

The D&R AIRENCE USB is designed to be the focal point for local radio production work in the studio or… at home. It’s understandable features makes it the ideal companion for rapid on-the-spot radio programs. The AIRENCE is compact, reliable and 19″” rack mounting ideal for production rooms. It can also double as an On-Air mixer or implemented as your own Internet Internet Radio station. If your budget is tight start with the 6 channel version which is a complete system to begin with. And it never becomes obsolete as it can be used as pre-production mixer, if, at a later date, you fit in a larger On-Air mixer. And.. if more inputs are needed hook up the AIRENCE-EXT and instantly you have 6 more triple inputs with each giving you a low noise Mic and 2x stereo line inputs under control. The Cue buss is of course linked. Not enough? Buy another 6 channel unit to expand to 18 or even more input channels. Every unit is individually powered by a modern digitally switched power supply to create high efficiency in power consumption. Also power supply redundancy is an option because the power supply unit is external.

CONTROL SECTION

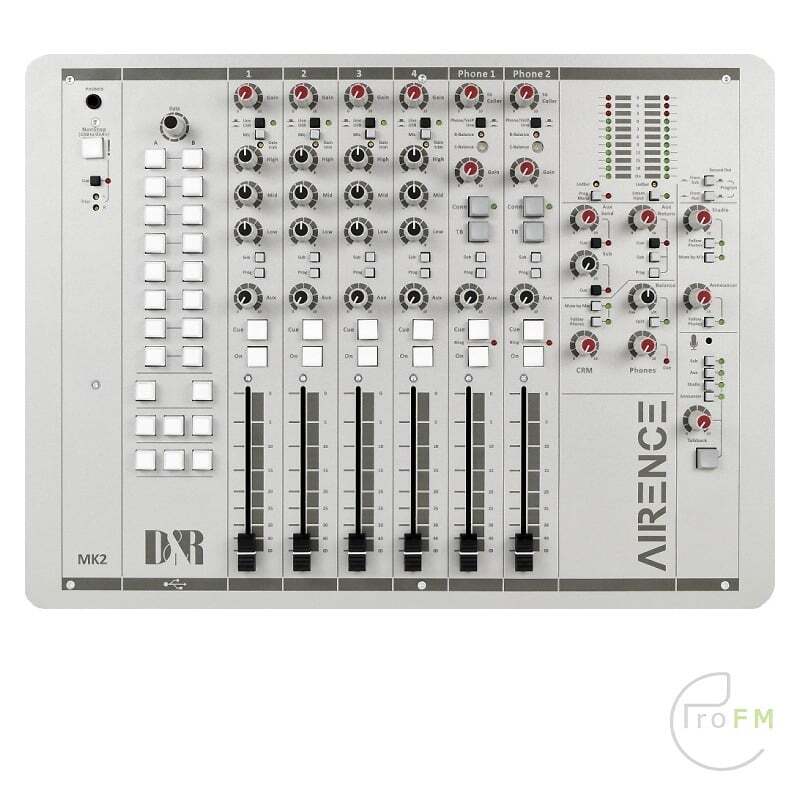

On the right side of the mixer you see 24 illuminated (green/red or yellow) switches. These switches can be used to control functions in your Radio Automation such as starting jingle machines and switching between live and NON stop. Recording a voice track while ON-AIR is one of the possibilities.A built in USB controller, specially tailored by D&R and programmable by yourself, to make radio even more exciting.

SOFTWARE

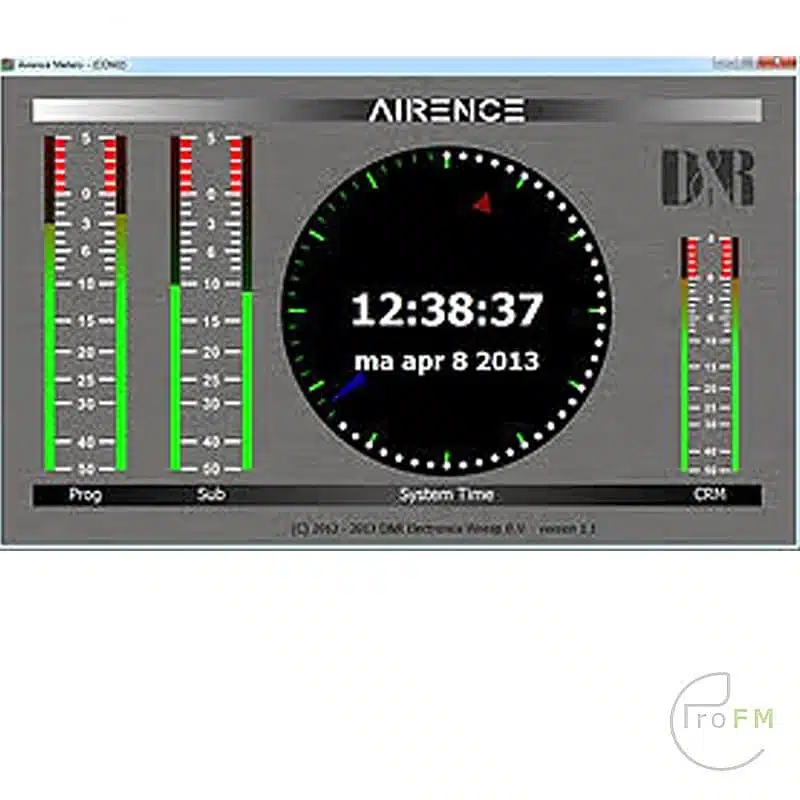

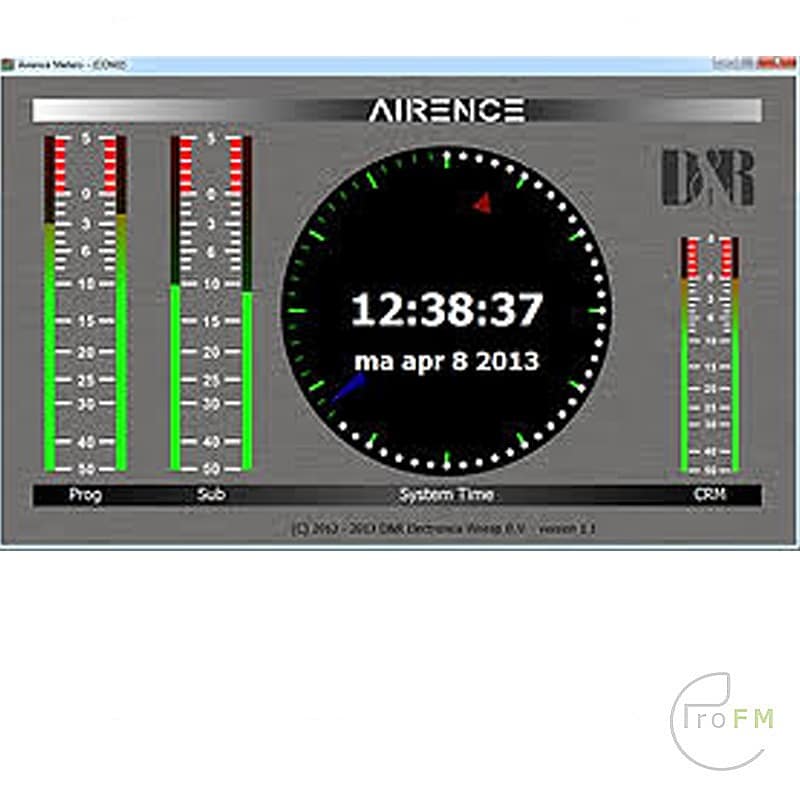

The AIRENCE sends out control signals over USB based on the HID protocol. This means that the main output signals can be displayed on a TFT screen in a beautiful meter application. Both Program and Sub stereo signals are shown on a high resolution PPM. A smaller separate stereo meter shows all signals heard through the CRM speakers. At the same time this software application shows you a professional looking Radio clock that is synchronized by the nearest NTP server over he Internet.

MIC, LINE, USB AND TELEPHONE IN-OUTPUTS.

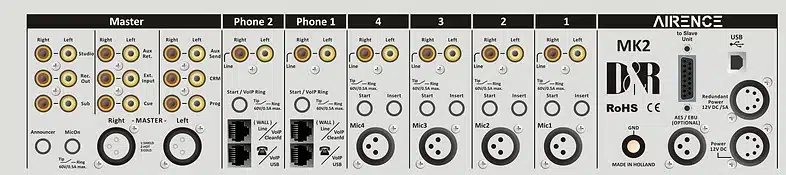

This brand new AIRENCE-USB model has 4 balanced mic inputs ( 48 phantom is standard) with inserts for signal processors, 6 stereo line inputs, 4x USB channels and 2x Telephone Hybrids. One physical USB connection is the interface to transfer 4 stereo audio channels from and to your PC. Channel 5 and 6 have, apart from the stereo line input, also RJ-11 connectors to interface with an analog telephone line and a common dial unit. High quality built in Hybrids with R and C balance and direct Talk back to the Hybrid channels makes conversation with callers very easy. The illuminated front panel ON switch is wired in series with the built in mechanical faders start enabling selection of a play-out start either by fader or via the ON switch. Fader start generates in the Mic mode a Mic-on signalling to switch ON-Air lights. There is a 3 band Equalizer on channel 1-4 and on all 6 Triple input channels of the Extender Unit. The stereo Aux send can be set pre or post fader. All high quality mic inputs have low cut jumpers.

EXTENSIVE MASTER SECTION DE-SIGNED WITH RADIO IN MIND.

The AIRENCE-USB has all the master controls such as 100 mm stereo master faders, stereo Aux send and return, monitor master with “”follow phones”” and a phones output with a split listen function. There is a balance control to continuously adjust the volume between main output and stereo Cue signal. In addition, there is a special Radio On-air/production section featuring: Self-op switching (Mute Active) to automatically cut control room level when the D.J. mic is active. A special Studio output that normally follows main output but can be switched so that the main output, or any cue signal that is selected, can be heard when in the “”follow phones”” mode. Also here is a Speaker Mute-Activation possible when presenters use loudspeakers in the studio room. You might have noticed that the channels have Sub and Program routing. It means that production (voice tracking) can be done on the sub output while ON-AIR. The AIRENCE can also be used for production while ON-AIR when it is put into the NON-STOP mode. A single switch routes one of the 4 USB channels directly to the main outputs A large Talkback switch activates the built-in electret talkback microphone for communication.

Mic inputs: bal, 2kOhm, XLR. Phantom: 48 volt.
Noise: – 122 dBr (A-weighted).
Sensitivity: – 70dB min, OdB max.
Line inputs: unbal., 10kOhm, Cinch.
Gain: range of 40dB.
Phono inputs: unbal. 47kOhm, 5 mV.
2 Track return: – 10 dBV at 10kOhm.
Aux returns: – 10 dBv at 10kOhm stereo
Fully compliant with USB 2.0 playback and record mode.
HID Functions: Volume/Mute
RJ-11 connectors for phone line/dialler
Mix Minus rejection @1kHz -60dB.
Left/Right: 4 dBu bal. XLR
Monitor/Aux : 4dBu unbal. on Cinch.
Cleanfeed/Announcer:   4dBu, Jacks. Tape outp: -10dBv, unbal. Cinch.
Headphone:  16-600 Ohm, Jack.
Announcer:  16-600 Ohm, Jack.
High: / -12 dB at 12kHz shelving.
Mid: / -12dB at 1 kHz bell curve.
Low: / -12dB at 60 Hz bell curve.
Frequency response: 10 – 60.000Hz.
Distortion: < 0.009% max at 1 kHz.
Start switch: reed relay.
Ledbars: 21 segment.
Height: 356mm (8HE).
Depth: 95mm.
Weight: 11 Kg
Description

D&R Airence 12 Fader USB Broadcast Mixer /console

The D&R AIRENCE USB is designed to be the focal point for local radio production work in the studio or… at home. It’s understandable features makes it the ideal companion for rapid on-the-spot radio programs. The AIRENCE is compact, reliable and 19″” rack mounting ideal for production rooms. It can also double as an On-Air mixer or implemented as your own Internet Internet Radio station. If your budget is tight start with the 6 channel version which is a complete system to begin with. And it never becomes obsolete as it can be used as pre-production mixer, if, at a later date, you fit in a larger On-Air mixer. And.. if more inputs are needed hook up the AIRENCE-EXT and instantly you have 6 more triple inputs with each giving you a low noise Mic and 2x stereo line inputs under control. The Cue buss is of course linked. Not enough? Buy another 6 channel unit to expand to 18 or even more input channels. Every unit is individually powered by a modern digitally switched power supply to create high efficiency in power consumption. Also power supply redundancy is an option because the power supply unit is external.

CONTROL SECTION

On the right side of the mixer you see 24 illuminated (green/red or yellow) switches. These switches can be used to control functions in your Radio Automation such as starting jingle machines and switching between live and NON stop. Recording a voice track while ON-AIR is one of the possibilities.A built in USB controller, specially tailored by D&R and programmable by yourself, to make radio even more exciting.

SOFTWARE

The AIRENCE sends out control signals over USB based on the HID protocol. This means that the main output signals can be displayed on a TFT screen in a beautiful meter application. Both Program and Sub stereo signals are shown on a high resolution PPM. A smaller separate stereo meter shows all signals heard through the CRM speakers. At the same time this software application shows you a professional looking Radio clock that is synchronized by the nearest NTP server over he Internet.

MIC, LINE, USB AND TELEPHONE IN-OUTPUTS.

This brand new AIRENCE-USB model has 4 balanced mic inputs ( 48 phantom is standard) with inserts for signal processors, 6 stereo line inputs, 4x USB channels and 2x Telephone Hybrids. One physical USB connection is the interface to transfer 4 stereo audio channels from and to your PC. Channel 5 and 6 have, apart from the stereo line input, also RJ-11 connectors to interface with an analog telephone line and a common dial unit. High quality built in Hybrids with R and C balance and direct Talk back to the Hybrid channels makes conversation with callers very easy. The illuminated front panel ON switch is wired in series with the built in mechanical faders start enabling selection of a play-out start either by fader or via the ON switch. Fader start generates in the Mic mode a Mic-on signalling to switch ON-Air lights. There is a 3 band Equalizer on channel 1-4 and on all 6 Triple input channels of the Extender Unit. The stereo Aux send can be set pre or post fader. All high quality mic inputs have low cut jumpers.

EXTENSIVE MASTER SECTION DE-SIGNED WITH RADIO IN MIND.

The AIRENCE-USB has all the master controls such as 100 mm stereo master faders, stereo Aux send and return, monitor master with “”follow phones”” and a phones output with a split listen function. There is a balance control to continuously adjust the volume between main output and stereo Cue signal. In addition, there is a special Radio On-air/production section featuring: Self-op switching (Mute Active) to automatically cut control room level when the D.J. mic is active. A special Studio output that normally follows main output but can be switched so that the main output, or any cue signal that is selected, can be heard when in the “”follow phones”” mode. Also here is a Speaker Mute-Activation possible when presenters use loudspeakers in the studio room. You might have noticed that the channels have Sub and Program routing. It means that production (voice tracking) can be done on the sub output while ON-AIR. The AIRENCE can also be used for production while ON-AIR when it is put into the NON-STOP mode. A single switch routes one of the 4 USB channels directly to the main outputs A large Talkback switch activates the built-in electret talkback microphone for communication.

Specifications
Mic inputs: bal, 2kOhm, XLR. Phantom: 48 volt.
Noise: – 122 dBr (A-weighted).
Sensitivity: – 70dB min, OdB max.
Line inputs: unbal., 10kOhm, Cinch.
Gain: range of 40dB.
Phono inputs: unbal. 47kOhm, 5 mV.
2 Track return: – 10 dBV at 10kOhm.
Aux returns: – 10 dBv at 10kOhm stereo
Fully compliant with USB 2.0 playback and record mode.
HID Functions: Volume/Mute
RJ-11 connectors for phone line/dialler
Mix Minus rejection @1kHz -60dB.
Left/Right: 4 dBu bal. XLR
Monitor/Aux : 4dBu unbal. on Cinch.
Cleanfeed/Announcer:   4dBu, Jacks. Tape outp: -10dBv, unbal. Cinch.
Headphone:  16-600 Ohm, Jack.
Announcer:  16-600 Ohm, Jack.
High: / -12 dB at 12kHz shelving.
Mid: / -12dB at 1 kHz bell curve.
Low: / -12dB at 60 Hz bell curve.
Frequency response: 10 – 60.000Hz.
Distortion: < 0.009% max at 1 kHz.
Start switch: reed relay.
Ledbars: 21 segment.
Height: 356mm (8HE).
Depth: 95mm.
Weight: 11 Kg

Additional information

Weight 15 kg
Dimensions 54 × 46 × 40 cm

Brand

D&R Broadcast

D&R Broadcast

D&R is a Dutch manufacturer of Radio Broadcast Mixers / Consoles Analog and digital and other studio equipment like f Telephone Hybrids and radio automation software. A household name in the Netherlands for over 50 years and now far beyond! As time went on, the production of PA mixers added to this, recording mixers and broadcast mixing desks. The massive worldwide increase in radio and TV broadcasters in recent years means that there has been an increasing demand for D&R products. The company mainly involved in Broadcast related products, such as the analog mixing desks: Webstation, Airmate, Airence, Airlab, Airlite. For a digital Broadcast mixers you can also go to D&R , they have the: Axite and Axum digital broadcast consoles. The D&R Telephone hybrids, On-air signaling and the Radio software are also very popular products. Feel free to take a look in the webshop, and if you have any questions call or email us, we are happy to help you!
