Deva Broadcast DB90 TX Audio over IP Encoder

 355,00

Deva Broadcast DB90 TX Audio over IP Encoder

DEVA Broadcast DB90-TX is an integrated audio converter that converts audio signal into a high quality compressed audio stream. The signal can be compressed by HE-AAC, MPEG-1 Layer 3 encoder. DB90-TX also supports uncompressed PCM stream in order to ensure audio transmission without quality loss.

Category: SKU: 613 Tags:

Description

Deva Broadcast DB90 TX Audio over IP Encoder

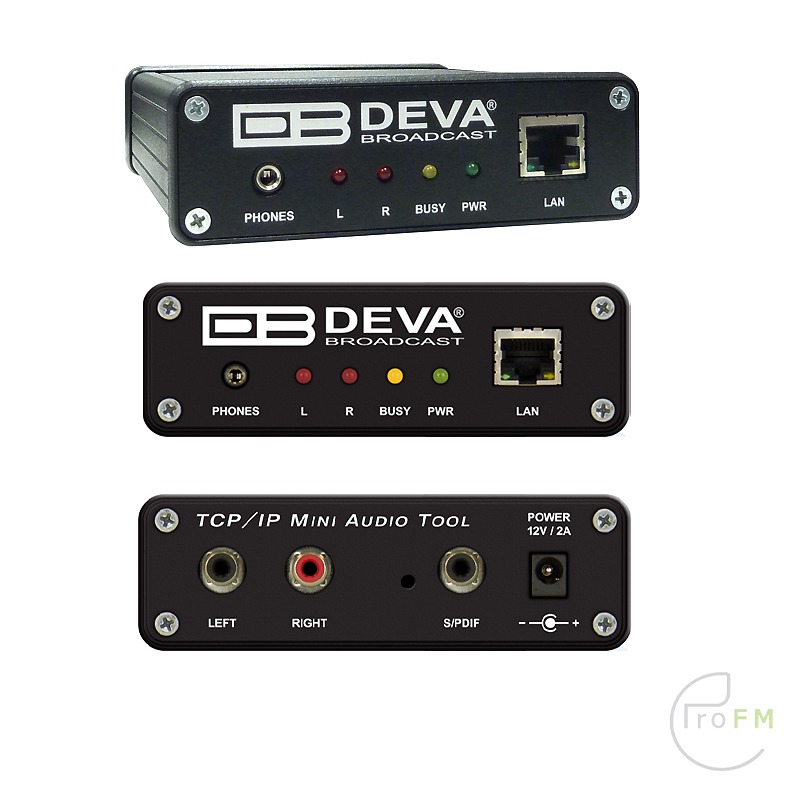

DB90-TX is an integrated audio converter that converts audio signal into a high quality compressed audio stream. The signal can be compressed by HE-AAC, MPEG-1 Layer 3 encoder. DB90-TX also supports uncompressed PCM stream in order to ensure audio transmission without quality loss. Compression is performed in real time, and the output signal is transmitted directly by IP-based networks. DB90-TX can work with both analog and digital audio signal. No matter how sophisticated, DB90-TX is located in a small and compact housing. All this allows you to quickly and painlessly integrate existing audio systems to the Internet.

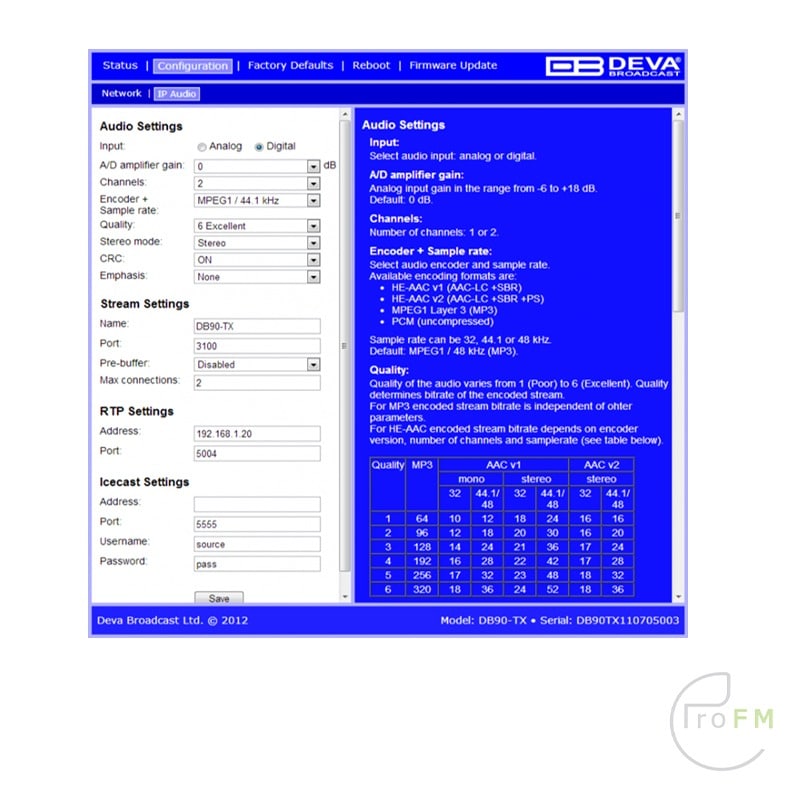

Developed with the thought of easiness of use, DB90-TX can be managed through a standard Web browser, PC, PDA or other device, making it the best choice for professional and consumer use.

Application:

Audio transmission over IP-based networks Point-to-Point Audio Transfer
(DB90-RX is required at the opposite site)
Suitable for professional and consumer use

Features:

  • High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer-3 Compression
  • 32 kHz, 44.1, 48 and 96 kHz sample rates support
  • Up to 56 kbps bitrate for HE-AAC Up to 320 kbps bitrate for MPEG-1 Layer-3
  • Up to 3072 kbps for PCM 6 LEDs and Phones output for quick diagnostics IP address pronunciation at startup (through the headphones)
  • DHCP Client automatically assigning Network Settings
  • Full Control and easy setup via a standard web browser UPnP for easy discovery in Local Networks
  • Shoutcast / Icecast compatible TCP/IP stream
  • Analog Audio Input (2 x RCA connectors)
  • Digital Audio Input (RCA Connector)
  • RJ-45 Ethernet Connector Up to 10 simultaneously connected clients
Audio codec
Codec HE-AAC (v.1 and v.2), MPEG-1 Layer 3 or raw PCM
Sample rates 32 kHz, 44.1 kHz and 48 kHz
Channels 1 or 2
Bitrate Up to 56 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 3072 kbps (PCM);
MPEG-1 Layer 3 specific
Encoding mode Mono and Stereo, Joint Stereo or Dual Channel
Emphasis 50µs, CCITT J.17 or none
PCM codec
Channels 1 or 2
Bitrate Up to 3072 kbps
Analog audio input
Connector 2 x RCA, stereo
Type Unbalanced
Level 6 dBu (max. 8dBu)
Sample rate 96 kHz; Build-in sample rate converter used to produce lower sample rates
Dynamic range 102 dB
Digital audio input
Connector RCA
Type S/PDIF (IEC 60958)
Resampling Thru build-in sample rate converter
Phones audio output
Connector 3.5mm jack, stereo
Type Headphones
User interface
Indicators 6 LEDs on front panel

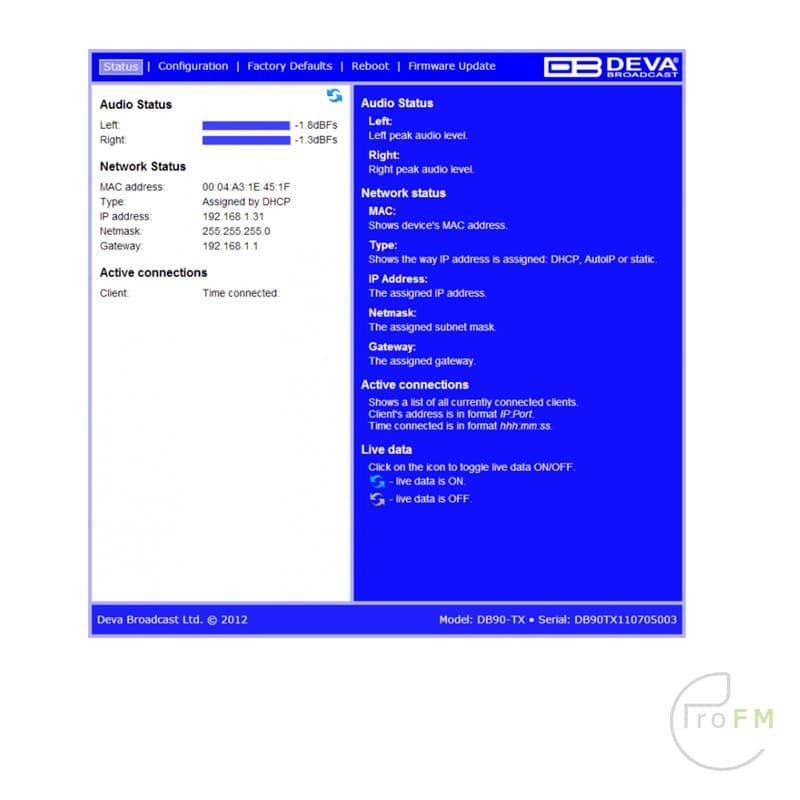

Web interface Full control and status information
Streaming server
Type Shoutcast / Icecast compatible TCP/IP stream
Clients Limit Up to 10 simultaneous clients
Network
Connector RJ-45
Type Ethernet
Device discovery UPnP support
Operating conditions
Temperature 10°C – 45°C
Humidity < 75%, non-condensing
Power requirements
Connector Power Jack 6,3mm
Power supply 12V DC, 1A
Size and Weight
Dimensions (W;H;D) 106 x 33 x 128 mm
Shipping Weight 230 x 54 x 172 mm / 0.7kg
Description

Deva Broadcast DB90 TX Audio over IP Encoder

DB90-TX is an integrated audio converter that converts audio signal into a high quality compressed audio stream. The signal can be compressed by HE-AAC, MPEG-1 Layer 3 encoder. DB90-TX also supports uncompressed PCM stream in order to ensure audio transmission without quality loss. Compression is performed in real time, and the output signal is transmitted directly by IP-based networks. DB90-TX can work with both analog and digital audio signal. No matter how sophisticated, DB90-TX is located in a small and compact housing. All this allows you to quickly and painlessly integrate existing audio systems to the Internet.

Developed with the thought of easiness of use, DB90-TX can be managed through a standard Web browser, PC, PDA or other device, making it the best choice for professional and consumer use.

Application:

Audio transmission over IP-based networks Point-to-Point Audio Transfer
(DB90-RX is required at the opposite site)
Suitable for professional and consumer use

Features:

  • High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer-3 Compression
  • 32 kHz, 44.1, 48 and 96 kHz sample rates support
  • Up to 56 kbps bitrate for HE-AAC Up to 320 kbps bitrate for MPEG-1 Layer-3
  • Up to 3072 kbps for PCM 6 LEDs and Phones output for quick diagnostics IP address pronunciation at startup (through the headphones)
  • DHCP Client automatically assigning Network Settings
  • Full Control and easy setup via a standard web browser UPnP for easy discovery in Local Networks
  • Shoutcast / Icecast compatible TCP/IP stream
  • Analog Audio Input (2 x RCA connectors)
  • Digital Audio Input (RCA Connector)
  • RJ-45 Ethernet Connector Up to 10 simultaneously connected clients
Specifications
Audio codec
Codec HE-AAC (v.1 and v.2), MPEG-1 Layer 3 or raw PCM
Sample rates 32 kHz, 44.1 kHz and 48 kHz
Channels 1 or 2
Bitrate Up to 56 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 3072 kbps (PCM);
MPEG-1 Layer 3 specific
Encoding mode Mono and Stereo, Joint Stereo or Dual Channel
Emphasis 50µs, CCITT J.17 or none
PCM codec
Channels 1 or 2
Bitrate Up to 3072 kbps
Analog audio input
Connector 2 x RCA, stereo
Type Unbalanced
Level 6 dBu (max. 8dBu)
Sample rate 96 kHz; Build-in sample rate converter used to produce lower sample rates
Dynamic range 102 dB
Digital audio input
Connector RCA
Type S/PDIF (IEC 60958)
Resampling Thru build-in sample rate converter
Phones audio output
Connector 3.5mm jack, stereo
Type Headphones
User interface
Indicators 6 LEDs on front panel
Web interface Full control and status information
Streaming server
Type Shoutcast / Icecast compatible TCP/IP stream
Clients Limit Up to 10 simultaneous clients
Network
Connector RJ-45
Type Ethernet
Device discovery UPnP support
Operating conditions
Temperature 10°C – 45°C
Humidity < 75%, non-condensing
Power requirements
Connector Power Jack 6,3mm
Power supply 12V DC, 1A
Size and Weight
Dimensions (W;H;D) 106 x 33 x 128 mm
Shipping Weight 230 x 54 x 172 mm / 0.7kg
Video

Additional information

Weight 1,5 kg
Dimensions 25 × 20 × 7 cm
