Deva DB8008 Digital Silence Monitor MP3/ IP/ Backup Player

 1.650,00

Digital Silence Monitor with MP3 and IP Audio Backup Player

The DEVA Broadcast DB8008 is a silence monitor and backup audio player via Mp3 and IP.. The basic principle of the DB8008 is that this device can detect silence and start an alternative playlist from the built-in MP3 player or IP stream.

Description

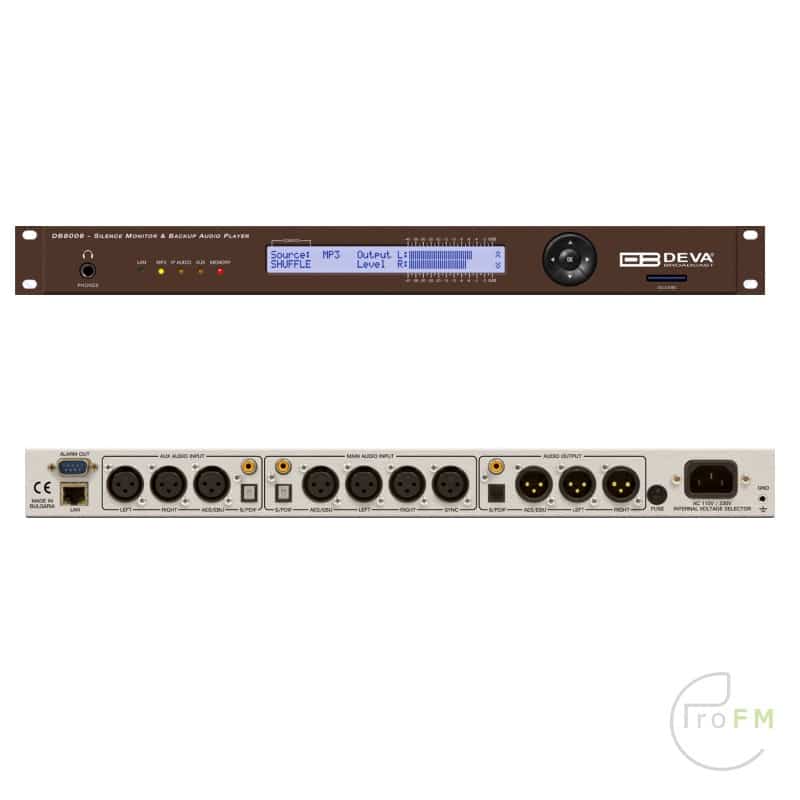

Deva DB8008 Digital Silence Monitor MP3/ IP/ Backup Player

DEVA’s DB8008 is a flexible and reliable tool, designed by our engineers specifically with the aim of solving one of the most significant problems in the radio industry – the one of radio silence. DEVA’s smart and highly practical solution detects signal loss and immediately switches the output to one of two alternative built-in backup players – MP3 or IP Audio. As an additional advantage, it also allows for easy integration into the existing setups of a single station and large radio networks alike.

The MP3 backup audio files and playlists can be uploaded to the device using any FTP client, making this model not only efficient but also easy to use. The audio storage capacity of the unit is an impressive 2GB for over 24 hours of audio playback without repetition. Moreover, the backup sources priority is selected by users themselves.

The DB8008 features a fully DSP-based core, professional AES/EBU digital audio inputs and outputs, and additionally allows for TCP/IP remote monitoring and control via SNMP and the WEB Interface, which means that the device can also be used for local content or regional advertisement spots. Another option provided by the model is the alert notifications via email, SNMP or analog opto-coupled outputs in case of signal loss. As an addition, if power failure is detected, the MAIN Audio inputs will switch directly to the Audio outputs. Once the power is restored, the DB8008 will resume its proper operation.

Developed to provide users with a tool for an infallible and constant audio feed, the DB8008 is trademark DEVA device offering a simple and subtle solution to the problem of radio silence.

FEATURES:

    • Fully DSP based core
    • Intelligent Silence Detector and Backup Audio Switcher
    • User selectable backup audio sources priority
    • Configuration and Monitoring via SNMP, WEB, Front Panel LCD and Keyboard
    • Alert Notifications via E-mail, SNMP, Analog opto-coupled Outputs
    • Lots of Storage for over 24 hours of non-repeating audio playback
    • Always Fresh Backup Audio Tracks with Embedded FTP server
    • Professional Balanced Stereo analog inputs and outputs on XLR connectors
    • Professional AES/EBU Digital audio inputs and output on XLR connectors
    • Consumer S/PDIF Digital audio inputs and output on Optical and Coaxial connectors
    • Headphones Jack on the front panel for local monitoring of the Audio Signal
    • TCP/IP Remote monitoring and control via SNMP and WEB Interface
    • Variety of Audio Sources
    • Multiformat IP Audio Stream (three separate sources)
    • Built-in MP3 Player
    • External or internal Digital clock sync
    • Digital Volume Control of all Audio Sources
    • Protected access to the device settings
    • UPnP for easy discovery in Local Networks
    • Professional 19 inches, 1U aluminum rack mount chassis
    • Wide Range Internal Power Supply 100-240VAC 50-60Hz
    • Easy installation and operation
    • Remote Firmware Upgrade for future-proof operation
    • 2 Years Warranty

Main Analog Audio Inputs
Connectors Balanced XLR
Impedance 600Ω or high impedance
Level 2 ranges: 0 dBu or +12 dBu Jumper selectable, with software adjustments
Dynamic range >80dB
Digital Gain Adjust -10db to +10dB
Main Digital Audio Inputs
Connectors Balanced XLR, Coaxial, Optical
Sample Rates 32, 44.1, 48, 96 kHz
Digital Gain Adjust -10db to +10dB
Aux Analog Audio Inputs
Connectors Balanced XLR
Impedance 600Ω or high impedance
Level 2 ranges: 0 dBu or +12 dBu Jumper selectable, with software adjustments
Dynamic range >80dB
Digital Gain Adjust -10db to +10dB
Aux Digital Audio Inputs
Connectors Balanced XLR, Coaxial, Optical
Sample Rates 32, 44.1, 48, 96 kHz
Digital Gain Adjust -10db to +10dB
IP Audio Source
Number of Streams one main and two alternative streams with auto-switch on failure
Stream Clients shoutcast, icecast
Stream Formats PCM, MPEG1 Layer 3 (MP3), HE-AAC (v.1 and v.2); all at 32, 44.1, 48kHz only
Bit Rates All standard bit rates, including VBR
Number of Channels Mono, Stereo
Buffer Size Adjust 5Kb to 64Kb
Digital Gain Adjust -10db to +10dB
Built-In MP3 Player
Storage Capacity 16GB on SD Card
Supported encoders HE-AAC (v.1 and v.2), MPEG-1 Layer 3
MP3 bit rates 32-320 kbps and VBR
Sample rates All sampling frequencies specified by MPEG1 L1/L2/L3 (32, 44.1 and 48kHz)
Supported file types *.MP3, *.AAC, *.M4A, *.M3U
Playback modes Alphabetical ascending and descending, Shuffle, Playlist and Shuffled playlist
Remote file management Build-in FTP server
Digital Gain Adjust -10db to +10dB
Analog Audio Output
Connector Balanced XLR
Frequency response ±0.5dB, 5Hz-20kHz
Distortion <0.01% THD+N
Level +6dBu, user selectable
Dynamic range >80dB
Digital Gain Adjust -10db to +10dB
Digital Audio Outputs
Connectors Balanced XLR, Coaxial, Optical
Sample rates 32, 44.1, 48kHz
Digital Gain Adjust -10db to +10dB
Phones Audio Output
Connector 1/4″ (6.3mm) jack, stereo
Type Headphones
Silence Detector
Threshold Adjustable from -40dBfs to -5dBfs
Trigger time 10-250 sec
User Interface
Indicators 5 LEDs on front panel, 2 LEDs on rear panel
Web interface control, configuration and status information
SNMP interface control, configuration and status information
Front Panel LCD with Keyboard
Network
Connector RJ-45
Type Ethernet
Device Discovery UPnP support
Operating conditions
Temperature 10°C – 45°C
Humidity < 75%, non-condensing
Power
Voltage 115/230V AC (internal switch)
Power Consumption 12VA
Connector IEC320, Fused and EMI-suppressed
Size and Weight
Dimensions (W;H;D) 483 x 45 x 160 mm
Shipping Weight 540 x 115 x 300 mm / 2.900 kg
Description

Deva DB8008 Digital Silence Monitor MP3/ IP/ Backup Player

DEVA’s DB8008 is a flexible and reliable tool, designed by our engineers specifically with the aim of solving one of the most significant problems in the radio industry – the one of radio silence. DEVA’s smart and highly practical solution detects signal loss and immediately switches the output to one of two alternative built-in backup players – MP3 or IP Audio. As an additional advantage, it also allows for easy integration into the existing setups of a single station and large radio networks alike.

The MP3 backup audio files and playlists can be uploaded to the device using any FTP client, making this model not only efficient but also easy to use. The audio storage capacity of the unit is an impressive 2GB for over 24 hours of audio playback without repetition. Moreover, the backup sources priority is selected by users themselves.

The DB8008 features a fully DSP-based core, professional AES/EBU digital audio inputs and outputs, and additionally allows for TCP/IP remote monitoring and control via SNMP and the WEB Interface, which means that the device can also be used for local content or regional advertisement spots. Another option provided by the model is the alert notifications via email, SNMP or analog opto-coupled outputs in case of signal loss. As an addition, if power failure is detected, the MAIN Audio inputs will switch directly to the Audio outputs. Once the power is restored, the DB8008 will resume its proper operation.

Developed to provide users with a tool for an infallible and constant audio feed, the DB8008 is trademark DEVA device offering a simple and subtle solution to the problem of radio silence.

FEATURES:

    • Fully DSP based core
    • Intelligent Silence Detector and Backup Audio Switcher
    • User selectable backup audio sources priority
    • Configuration and Monitoring via SNMP, WEB, Front Panel LCD and Keyboard
    • Alert Notifications via E-mail, SNMP, Analog opto-coupled Outputs
    • Lots of Storage for over 24 hours of non-repeating audio playback
    • Always Fresh Backup Audio Tracks with Embedded FTP server
    • Professional Balanced Stereo analog inputs and outputs on XLR connectors
    • Professional AES/EBU Digital audio inputs and output on XLR connectors
    • Consumer S/PDIF Digital audio inputs and output on Optical and Coaxial connectors
    • Headphones Jack on the front panel for local monitoring of the Audio Signal
    • TCP/IP Remote monitoring and control via SNMP and WEB Interface
    • Variety of Audio Sources
    • Multiformat IP Audio Stream (three separate sources)
    • Built-in MP3 Player
    • External or internal Digital clock sync
    • Digital Volume Control of all Audio Sources
    • Protected access to the device settings
    • UPnP for easy discovery in Local Networks
    • Professional 19 inches, 1U aluminum rack mount chassis
    • Wide Range Internal Power Supply 100-240VAC 50-60Hz
    • Easy installation and operation
    • Remote Firmware Upgrade for future-proof operation
    • 2 Years Warranty

Specifications
Main Analog Audio Inputs
Connectors Balanced XLR
Impedance 600Ω or high impedance
Level 2 ranges: 0 dBu or +12 dBu Jumper selectable, with software adjustments
Dynamic range >80dB
Digital Gain Adjust -10db to +10dB
Main Digital Audio Inputs
Connectors Balanced XLR, Coaxial, Optical
Sample Rates 32, 44.1, 48, 96 kHz
Digital Gain Adjust -10db to +10dB
Aux Analog Audio Inputs
Connectors Balanced XLR
Impedance 600Ω or high impedance
Level 2 ranges: 0 dBu or +12 dBu Jumper selectable, with software adjustments
Dynamic range >80dB
Digital Gain Adjust -10db to +10dB
Aux Digital Audio Inputs
Connectors Balanced XLR, Coaxial, Optical
Sample Rates 32, 44.1, 48, 96 kHz
Digital Gain Adjust -10db to +10dB
IP Audio Source
Number of Streams one main and two alternative streams with auto-switch on failure
Stream Clients shoutcast, icecast
Stream Formats PCM, MPEG1 Layer 3 (MP3), HE-AAC (v.1 and v.2); all at 32, 44.1, 48kHz only
Bit Rates All standard bit rates, including VBR
Number of Channels Mono, Stereo
Buffer Size Adjust 5Kb to 64Kb
Digital Gain Adjust -10db to +10dB
Built-In MP3 Player
Storage Capacity 16GB on SD Card
Supported encoders HE-AAC (v.1 and v.2), MPEG-1 Layer 3
MP3 bit rates 32-320 kbps and VBR
Sample rates All sampling frequencies specified by MPEG1 L1/L2/L3 (32, 44.1 and 48kHz)
Supported file types *.MP3, *.AAC, *.M4A, *.M3U
Playback modes Alphabetical ascending and descending, Shuffle, Playlist and Shuffled playlist
Remote file management Build-in FTP server
Digital Gain Adjust -10db to +10dB
Analog Audio Output
Connector Balanced XLR
Frequency response ±0.5dB, 5Hz-20kHz
Distortion <0.01% THD+N
Level +6dBu, user selectable
Dynamic range >80dB
Digital Gain Adjust -10db to +10dB
Digital Audio Outputs
Connectors Balanced XLR, Coaxial, Optical
Sample rates 32, 44.1, 48kHz
Digital Gain Adjust -10db to +10dB
Phones Audio Output
Connector 1/4″ (6.3mm) jack, stereo
Type Headphones
Silence Detector
Threshold Adjustable from -40dBfs to -5dBfs
Trigger time 10-250 sec
User Interface
Indicators 5 LEDs on front panel, 2 LEDs on rear panel
Web interface control, configuration and status information
SNMP interface control, configuration and status information
Front Panel LCD with Keyboard
Network
Connector RJ-45
Type Ethernet
Device Discovery UPnP support
Operating conditions
Temperature 10°C – 45°C
Humidity < 75%, non-condensing
Power
Voltage 115/230V AC (internal switch)
Power Consumption 12VA
Connector IEC320, Fused and EMI-suppressed
Size and Weight
Dimensions (W;H;D) 483 x 45 x 160 mm
Shipping Weight 540 x 115 x 300 mm / 2.900 kg
Video

Additional information

Weight 4 kg
Dimensions 54 × 30 × 12 cm
