Description

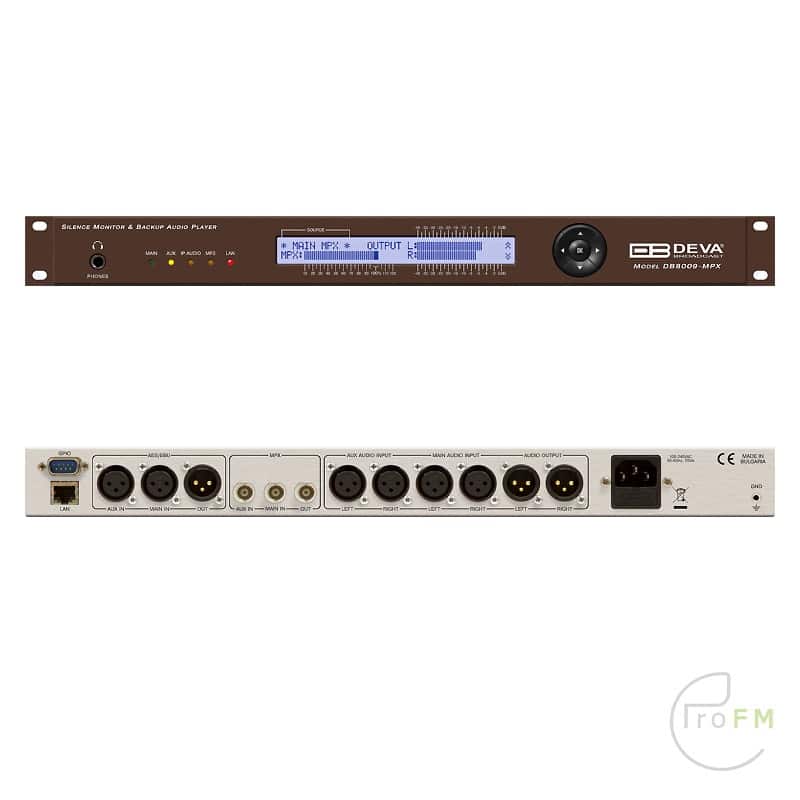

Deva Broadcast DB8009 MPX Audio Silence Monitor/ WatchDog/ Dead Air
DEVA DB8009-MPX: your ultimate solution for excellent silence monitoring and backup playback.
The DB8009-MPX from Deva is a powerful silence detector that fits seamlessly with Deva’s extensive range of broadcast tools. This versatile unit not only provides reliable monitoring of Composite Stereo, Analog and Digital Audio feeds, but also automatically switches to available backup sources in the event of signal loss.
What really sets the DB8009-MPX apart are its MPX inputs and outputs, allowing for accurate MPX monitoring and backup. In addition to the usual MP3 and IP Audio backup options, the DSP-based stereo encoder delivers a stable MPX signal at the output, even when the backup source is analog, digital or IP Audio.
Users can easily configure and monitor the unit via SNMP, the web interface, the front panel LCD screen and soft keys. The option for warning messages via e-mail, SNMP or via analogue outputs during radio silence is also important.
With UPnP for easy local networking, digital volume control of all audio sources and 4 GB of storage capacity for MP3 backup files, the DB8009-MPX provides 24 hours of continuous playback without repeats.
The DB8009-MPX combines the impeccable monitoring performance of Deva with the precise silence detection of Analog, Digital Audio and MPX, ensuring a constant, uninterrupted audio feed. Choose the DB8009-MPX and be assured that there is no radio silence.
Highlights:
- Fully DSP based core
- Intelligent Silence Detector and Backup Audio Switcher
- User selectable backup audio sources priority
- Configuration and Monitoring via SNMP, WEB, Front Panel LCD and Keyboard
- Alert Notifications via E-mail, SNMP
- Lots of Storage for over 24 hours of non-repeating audio playback
- Always Fresh Backup Audio Tracks with Embedded FTP server
- Professional Balanced Stereo analog inputs and outputs on XLR connectors
- Professional AES/EBU Digital audio inputs and output on XLR connectors
- Headphones Jack on the front panel for local monitoring of the Audio Signal
- TCP/IP Remote monitoring and control via SNMP and WEB Interface
- Multiformat IP Audio Stream (three separate sources)
- Built-in MP3 Player
- External or internal Digital clock sync
- Digital Volume Control of all Audio Sources
- Protected access to the device settings
- UPnP for easy discovery in Local Networks
- Professional 19 inches, 1U aluminum rack mount chassis
- Wide Range Internal Power Supply 100-240VAC 50-60Hz
- Easy installation and operation
- Remote Firmware Upgrade for future-proof operation
- 2 Years Warranty
Main MPX (Composite) Input:Connector BNC Unbalanced
Impedance 10 kΩ
Frequency Range 10 Hz to 200 kHz
Main Analog Audio Inputs:Connectors Balanced XLR
Impedance 600Ω or high impedance
Level 2 ranges: 0 dBu or 12 dBu Jumper selectable, with software adjustments
Dynamic range >80dB
Digital Gain Adjust -10db to 10dB
Main Digital Audio Inputs:Connectors Balanced XLR, Coaxial
32, 44.1, 48, 96 kHz
Digital Gain Adjust -10db to 10dB
Aux MPX (Composite) Input
Connector BNC Unbalanced
Impedance 10 kΩ
Frequency Range 10 Hz to 200 kHz
Aux Analog Audio Inputs:Connectors Balanced XLR
Impedance 600Ω or high impedance
Level 2 ranges: 0 dBu or 12 dBu Jumper selectable, with software adjustments
Dynamic range >80dB
Digital Gain Adjust -10db to 10dB
Aux Digital Audio Inputs
Connectors Balanced XLR, Coaxial
Sample Rates 32, 44.1, 48, 96 kHz
Digital Gain Adjust -10db to 10dB
IP Audio Source
Number of Streams one main and two alternative streams with auto-switch on failure
Stream Clients shoutcast, icecast
Stream Formats PCM, MPEG1 Layer 3 (MP3), HE-AAC (v.1 and v.2); all at 32, 44.1, 48kHz only
Bit Rates All standard bit rates, including VBR
Number of Channels Mono, Stereo
Buffer Size Adjust 5Kb to 64Kb
Digital Gain Adjust -10db to 10dB
Built-In MP3 Player
Storage Capacity 2Gb on SD Card
Supported encoders HE-AAC (v.1 and v.2), MPEG-1 Layer 3
MP3 bit rates 32-320 kbps and VBR
Sample rates All sampling frequencies specified by MPEG1 L1/L2/L3 (32, 44.1 and 48kHz)
Supported file types *.MP3, *.AAC, *.M4A, *.M3U
Playback modes Alphabetical ascending and descending, Shuffle, Playlist and Shuffled playlist
Remote file management Build-in FTP server
Digital Gain Adjust -10db to 10dB
MPX (Composite) Output
Connector BNC Unbalanced, EMI suppressed
Output level Digitally , up to 18dBu
Internal Stereo Encoder
Output level -18dBu to 18dBu
Pilot level 0% to 15%
D/A conversion 24 bit, differential
SNR >80 dB (20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted)
THD < 0.01% (20Hz – 15kHz bandwidth, Digital input referenced to -10dBFS, unweighted)
Stereo Separation >60dB
Crosstalk >70dB
Pilot protection >90dB relative to 9% pilot injection, ±250 Hz
38 kHz suppression >80dB (referenced to 100% modulation)
Analog Audio Output
Connector Balanced XLR
Frequency response ±0.5dB, 5Hz-20kHz
Distortion <0.01% THD N
Level 6dBu, user selectable
Dynamic range >80dB
Digital Gain Adjust -10db to 10dB
Digital Audio Outputs
Connectors Balanced XLR, Coaxial
Sample rates 32, 44.1, 48kHz
Digital Gain Adjust -10db to 10dB
Phones Audio Output
Connector 1/4″ (6.3mm) jack, stereo
Type Headphones
Silence Detector
Threshold Adjustable from -40dBfs to -5dBfs
Trigger time 10-250 sec
User Interface
Indicators 5 LEDs on front panel, 2 LEDs on rear panel
Web interface control, configuration and status information
SNMP interface control, configuration and status information
Front Panel LCD with Keyboard
Network
Connector RJ-45
Type Ethernet
Device Discovery UPnP support
Operating conditions
Temperature 10°C – 45°C
Humidity < 75%, non-condensing
Power Requirements
Voltage 115/230V AC (internal switch), 18VA
Connector IEC320, rear panel
