Description

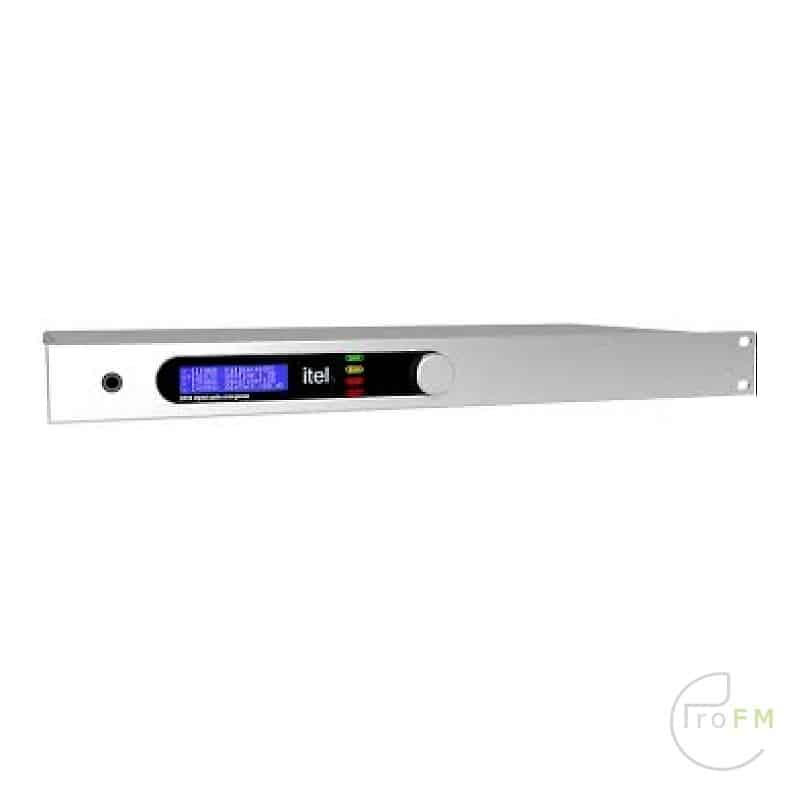

Itel DXVR 3- Digital Audio Changeover/ WatchDog
Introducing Itel DXVR 3, a cutting-edge audio changeover device with 3 inputs. Experience seamless audio transition with this innovative technology. Ideal for broadcasters, it ensures uninterrupted audio playback. Upgrade your audio setup with Itel DXVR 3 for professional, glitch-free performance. The DXVR is a Digital audio changeover silence detection and automatic switcher.
The MPX signal is decoded into L/R channels by a DSP-based stereo decoder which also provide stereo and RDS subcarriers level metering. The MPX source is considered valid only if the PI code matches with the one stored internally. The user can determine the switching priority of the various sources and the switching timings and thresholds, using the front panel display or with a dedicated software.
This unit include a passive emergency bypass, so that any input will be bypassed on its respective output, in case of hardware or software failure.
Analog audio input
Sampling frequency 48KHz/24bits
Input level 12/-12dBu
XLR connectors, electronically balanced
Digital audio input
accepts AES/EBU and SPDIF sample rates from 32 to 96KHz
XLR connector with balanced transformer.
MPX audio input
0dBu level (2.2Vpp / 775mV RMS 75KHz)
BNC Connector, impedance 10K ohm
Streaming IP audio input
Formats: AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
IP Streaming via TCP, UDP, RTP, Multicast
USB Flash Memory Interface
Level 12/-12dBu
Audio outputs
Analog level 12/-12dBu
Digital level 0/-12dBu
XLR connector, balanced
Headphones output
1/4″ front panel jack
Output: 100mW RMS over 50 ohm
Remote control
All functions can be managed remotely with an included software.
Power supply
100-240VAC 50/60Hz
Physical
1 x 19″ rack unit
44mm x 483mm x 156mm
Weight 2Kg
- Description
-
Itel DXVR 3- Digital Audio Changeover/ WatchDog
Introducing Itel DXVR 3, a cutting-edge audio changeover device with 3 inputs. Experience seamless audio transition with this innovative technology. Ideal for broadcasters, it ensures uninterrupted audio playback. Upgrade your audio setup with Itel DXVR 3 for professional, glitch-free performance. The DXVR is a Digital audio changeover silence detection and automatic switcher.
The MPX signal is decoded into L/R channels by a DSP-based stereo decoder which also provide stereo and RDS subcarriers level metering. The MPX source is considered valid only if the PI code matches with the one stored internally. The user can determine the switching priority of the various sources and the switching timings and thresholds, using the front panel display or with a dedicated software.
This unit include a passive emergency bypass, so that any input will be bypassed on its respective output, in case of hardware or software failure.
- Specifications
-
Analog audio input
Sampling frequency 48KHz/24bits
Input level 12/-12dBu
XLR connectors, electronically balancedDigital audio input
accepts AES/EBU and SPDIF sample rates from 32 to 96KHz
XLR connector with balanced transformer.MPX audio input
0dBu level (2.2Vpp / 775mV RMS 75KHz)
BNC Connector, impedance 10K ohmStreaming IP audio input
Formats: AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
IP Streaming via TCP, UDP, RTP, Multicast
USB Flash Memory Interface
Level 12/-12dBuAudio outputs
Analog level 12/-12dBu
Digital level 0/-12dBu
XLR connector, balancedHeadphones output
1/4″ front panel jack
Output: 100mW RMS over 50 ohmRemote control
All functions can be managed remotely with an included software.
Power supply
100-240VAC 50/60Hz
Physical
1 x 19″ rack unit
44mm x 483mm x 156mm
Weight 2Kg
