Description

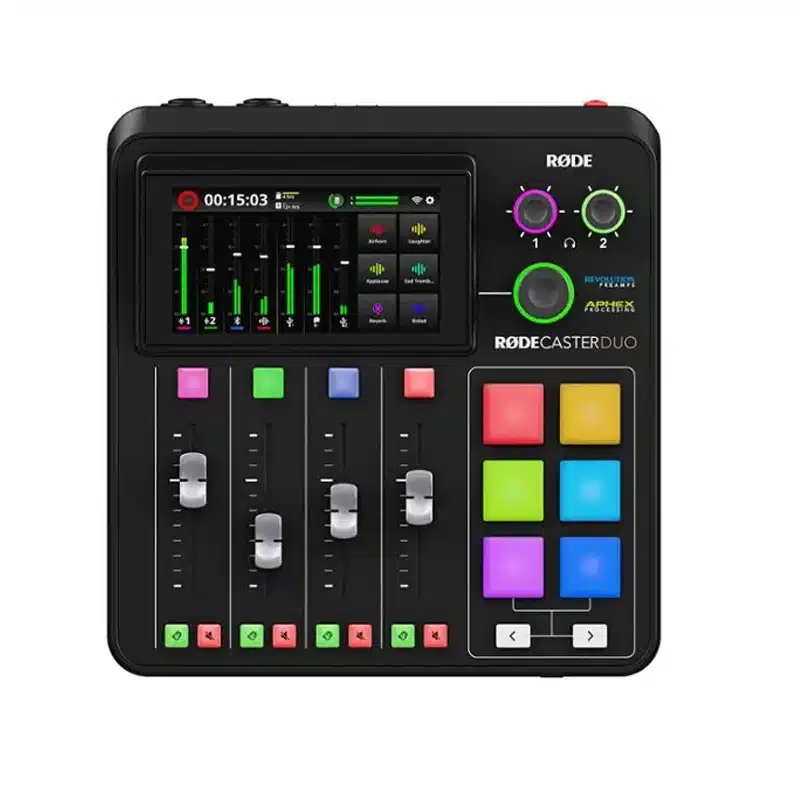

Rode RodeCaster Duo Podcast Mixer
Frequency Range
Mic Inputs: 20Hz – 20kHz
Monitor Outputs: 20Hz – 20kHz
Monitor Outputs: 20Hz – 20kHz
Microphone Input Impedance
4KΩ
Instrument Input Impedance
1MΩ
Preamplifier Gain Range
0 – 76dB
Equivalent Noise
-131.5dBV (A-weighted)
Line Output Maximum Level
4dBu
Headphone Output Power
250mW
Power Requirements
USB-C PD (9V, 3A)

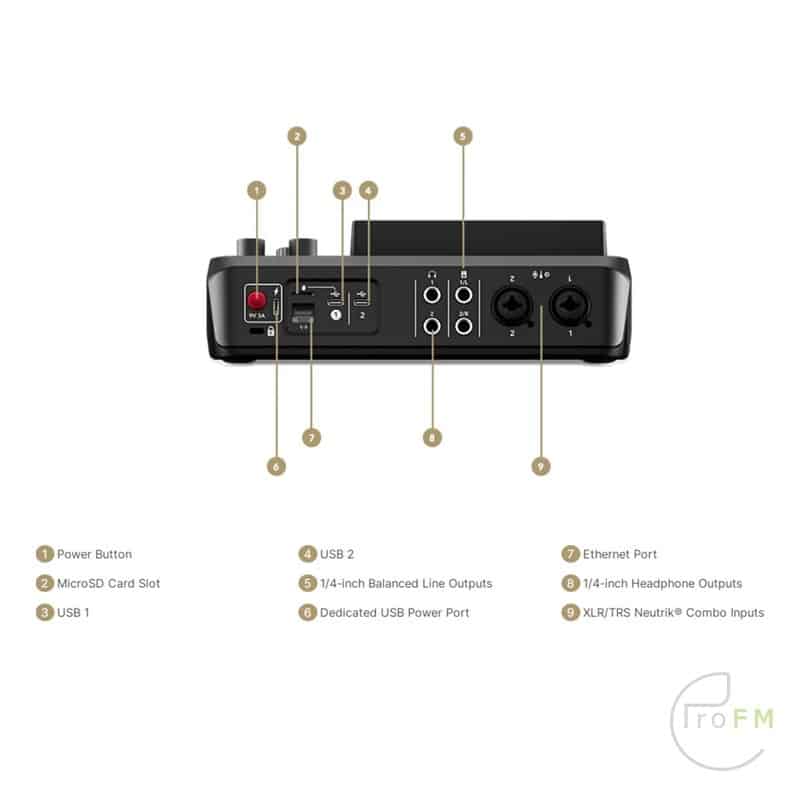

Analogue Audio Input Connectivity
2 x combo jack (mic, instrument, line)
1 x 3.5 TRRS headset jack (I/O
USB Interface 1
1 x 3.5 TRRS headset jack (I/O
USB Interface 1
1 x 2-in/14-out multichannel device
1 x 2-in/2-out with mix-minus
1 x 2-in/2-out with mix-minus
USB Interface 2
1 x 2-in/2-out with mix-minus
Bit Depth
24-bit
Sample Rate
48kHz
Recording Storage
microSDHC, microSDXC, USB-C removable drive (exFAT — minimum 100MB/s)
Data Transfer
USB 3.0 SD card reader 130MB/s
Network Connectivity
WiFi 802.11g/n/ac 2.4GHz and 5GHz, Ethernet 100/100
Internal Storage (GB)
4GB (SMART pads)
OS Requirements
macOS 10.15 or later, Windows 10 Version 1803 or later, Windows 11
- Description
-
Rode RodeCaster Duo Podcast Mixer
- Specifications
-
Frequency RangeMic Inputs: 20Hz – 20kHz
Monitor Outputs: 20Hz – 20kHzMicrophone Input Impedance4KΩInstrument Input Impedance1MΩPreamplifier Gain Range0 – 76dBEquivalent Noise-131.5dBV (A-weighted)Line Output Maximum Level4dBuHeadphone Output Power250mWPower RequirementsUSB-C PD (9V, 3A)Analogue Audio Input Connectivity2 x combo jack (mic, instrument, line)
1 x 3.5 TRRS headset jack (I/O
USB Interface 11 x 2-in/14-out multichannel device
1 x 2-in/2-out with mix-minusUSB Interface 21 x 2-in/2-out with mix-minusBit Depth24-bitSample Rate48kHzRecording StoragemicroSDHC, microSDXC, USB-C removable drive (exFAT — minimum 100MB/s)Data TransferUSB 3.0 SD card reader 130MB/sNetwork ConnectivityWiFi 802.11g/n/ac 2.4GHz and 5GHz, Ethernet 100/100Internal Storage (GB)4GB (SMART pads)OS RequirementsmacOS 10.15 or later, Windows 10 Version 1803 or later, Windows 11
