Ecoflex 15 – N-Connector Female

 13,75

Ecoflex 15 – N-Connector Female

Discover top-quality N-Connector, female for ECOFLEX 15 coax. Ensure seamless connectivity with our reliable connectors. Experience superior performance and durability for your network needs. Explore our range today!

Category: SKU: 1155 Tag:

Description

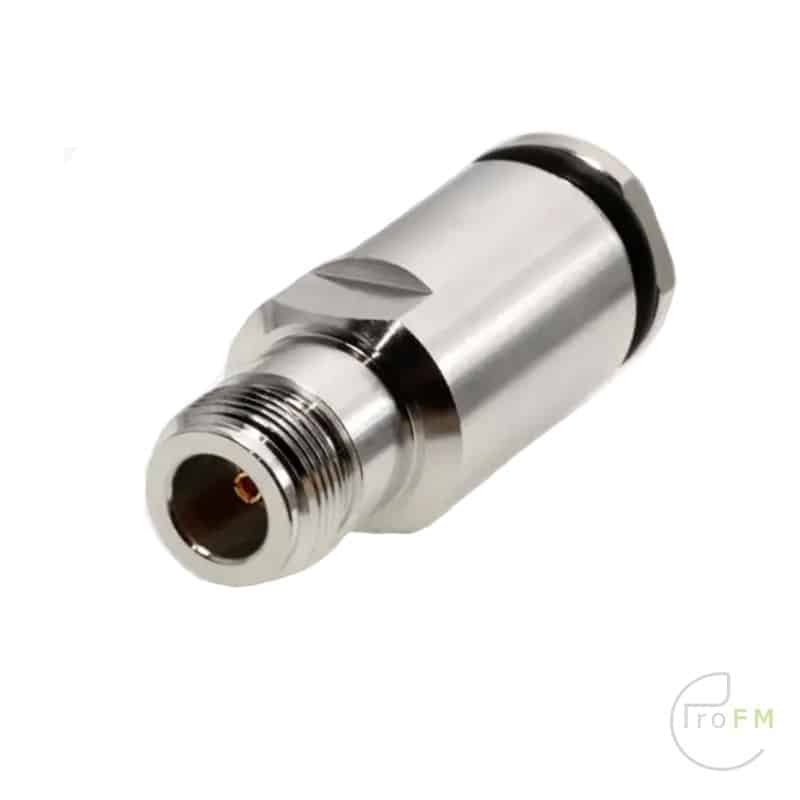

Ecoflex 15 – N-Connector Female

This N-Female connector from the SSB brand can be attached to an Ecoflex 15 or Ecoflex 15 Plus coaxial cable without soldering.

Features:

  • Connector type: solderless
  • Suitable for: Ecoflex 15 / Ecoflex 15 Plus / LMR 600
  • Center conductor: cannot be soldered / soldered
  • Outer guide: for screwing/scraubing
  • Torque torque: 4-6 Nm
  • Center contacts: CuSn C51900 (phosphor bronze)
  • Body and other metal parts: CuZn39Pb3 nikel plated
  • Insulator: TEFLON® (PTFE)
  • Gasket: silicone rubber
  • Impedance: 50Ω
  • Return loss:
  • ≤ -29.1dB @ 11GHz
  • ≤ -31.5dB @ 3GHz
  • ≤ -35.4dB @ 1GHz
  • Insertion loss: ≤ 0.05 dB
  • Complies with RoHS: 2002/95/EC
  • Protection class: IP (IEC 60529)
  • Operating temperature: -30°C/+100°C
  • Insulating sleeve / insulator PTFE
  • Seal: rubber
  • O-ring: rubber
  • Surface: nickel plated
  • Metal parts excl. pin CuZn39Pb3
  • Pin (diamagnetic): gold plated
  • Operating temperature -45°C / +155°C
  • RoHs compliant Standard: IEC 61 169-16
  • Protection class IP 67

Mechanical specifications:

Nut: Brass with white bronze finish
Washer: Brass with white bronze finish
Gasket: Silicone black
Braid clamp: Brass with white bronze finish
Insulation: PTFE white
Pin: Beryllium gold plated
Body: Brass with white bronze finish
Weight: ca. 85,5 g
RoHS compliant: yes



Electrical specifications:

Working voltage: ≦ 1000 V RMS
Impedance: 50 Ω
Insulation resistance: ≧ 5 GΩ
Frequency: up to 6 GHz
Inner contact resistance: ≦ 3 mΩ
Outer contact resistance: ≦ 2 mΩ
Description

Ecoflex 15 – N-Connector Female

This N-Female connector from the SSB brand can be attached to an Ecoflex 15 or Ecoflex 15 Plus coaxial cable without soldering.

Features:

  • Connector type: solderless
  • Suitable for: Ecoflex 15 / Ecoflex 15 Plus / LMR 600
  • Center conductor: cannot be soldered / soldered
  • Outer guide: for screwing/scraubing
  • Torque torque: 4-6 Nm
  • Center contacts: CuSn C51900 (phosphor bronze)
  • Body and other metal parts: CuZn39Pb3 nikel plated
  • Insulator: TEFLON® (PTFE)
  • Gasket: silicone rubber
  • Impedance: 50Ω
  • Return loss:
  • ≤ -29.1dB @ 11GHz
  • ≤ -31.5dB @ 3GHz
  • ≤ -35.4dB @ 1GHz
  • Insertion loss: ≤ 0.05 dB
  • Complies with RoHS: 2002/95/EC
  • Protection class: IP (IEC 60529)
  • Operating temperature: -30°C/+100°C
  • Insulating sleeve / insulator PTFE
  • Seal: rubber
  • O-ring: rubber
  • Surface: nickel plated
  • Metal parts excl. pin CuZn39Pb3
  • Pin (diamagnetic): gold plated
  • Operating temperature -45°C / +155°C
  • RoHs compliant Standard: IEC 61 169-16
  • Protection class IP 67
Specifications

Mechanical specifications:

Nut: Brass with white bronze finish
Washer: Brass with white bronze finish
Gasket: Silicone black
Braid clamp: Brass with white bronze finish
Insulation: PTFE white
Pin: Beryllium gold plated
Body: Brass with white bronze finish
Weight: ca. 85,5 g
RoHS compliant: yes



Electrical specifications:

Working voltage: ≦ 1000 V RMS
Impedance: 50 Ω
Insulation resistance: ≧ 5 GΩ
Frequency: up to 6 GHz
Inner contact resistance: ≦ 3 mΩ
Outer contact resistance: ≦ 2 mΩ

Additional information

Weight 0,1 kg
Dimensions 10 × 10 × 5 cm

Brand

RFS
