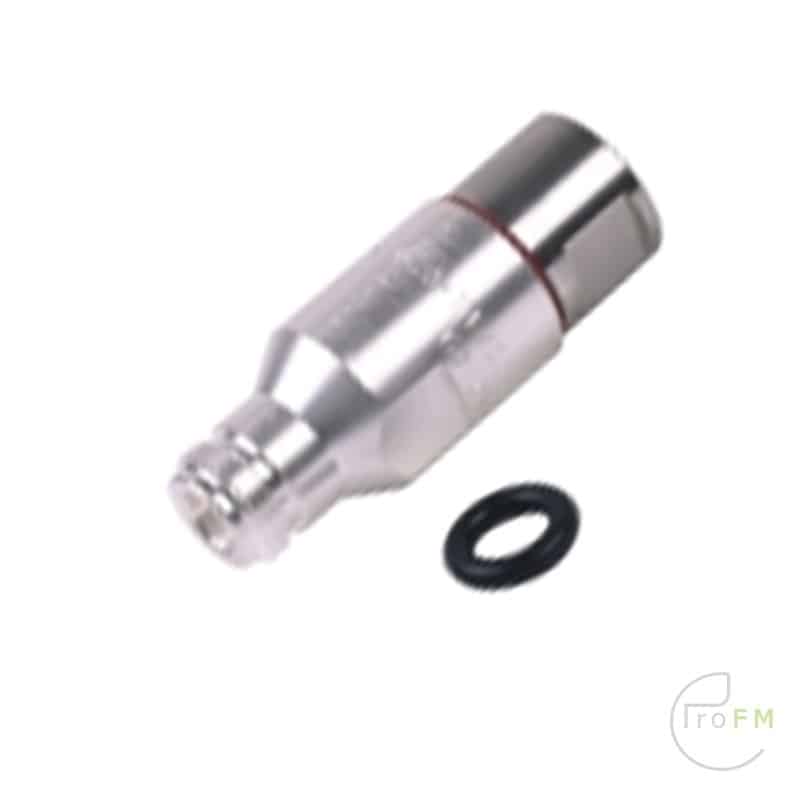

RFS Cellflex LCF12-50 – N Connector Female

 16,82

RFS Cellflex LCF12-50 – N Connector Female

Maximize connectivity with this N Female Connector for 1/2″ cables. Rapid Fit design ensures swift installation on LC12-50 coaxial cables. Reliable performance guaranteed.

Category: SKU: 1162 Tag:

Description

RFS Cellflex LCF12-50 – N Connector Female

Enhance the connectivity of your RF systems with this N Female connector tailored for 1/2″ cables. Engineered for seamless integration and optimal performance, this connector ensures reliable signal transmission in various applications. Its compatibility with LC12-50 coaxial cables makes it a versatile choice for telecommunications, radio broadcasting, and other RF environments.

Connector type N
Cable type LCF12-50
Orientation Straight
Gender Female
Connector mount Toolscrew
Connection method O-ring

Part number BN 84 60 89
Connector type N socket
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz 1 – 2.7 GHz 2.7 – 3.8 GHz 3.8 – 6 GHz
VSWR ≤ 1.02 ≤ 1.03 ≤ 1.08 ≤ 1.1
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright-nickel-plated
Insulation PTFE, PE
Sealing silicone rubber, EPDM, heat-shrinkable adhesive tubing
Degree of protection IP68 (mated)
Cable compatibility RFS LCF 12-50
Standards IEC 61169-16
Installation instructions M30749
Weight approx. 0.1 kg
Included in delivery sealing, installation instructions

Description

RFS Cellflex LCF12-50 – N Connector Female

Enhance the connectivity of your RF systems with this N Female connector tailored for 1/2″ cables. Engineered for seamless integration and optimal performance, this connector ensures reliable signal transmission in various applications. Its compatibility with LC12-50 coaxial cables makes it a versatile choice for telecommunications, radio broadcasting, and other RF environments.

Connector type N
Cable type LCF12-50
Orientation Straight
Gender Female
Connector mount Toolscrew
Connection method O-ring
Specifications

Part number BN 84 60 89
Connector type N socket
Version CAF®
Impedance 50 Ω
Frequency range 0 – 1 GHz 1 – 2.7 GHz 2.7 – 3.8 GHz 3.8 – 6 GHz
VSWR ≤ 1.02 ≤ 1.03 ≤ 1.08 ≤ 1.1
Material and surface
Inner conductor copper alloy silver-plated
Outer conductor copper alloy silver-plated
Other metal parts copper alloy bright-nickel-plated
Insulation PTFE, PE
Sealing silicone rubber, EPDM, heat-shrinkable adhesive tubing
Degree of protection IP68 (mated)
Cable compatibility RFS LCF 12-50
Standards IEC 61169-16
Installation instructions M30749
Weight approx. 0.1 kg
Included in delivery sealing, installation instructions

Additional information

Weight 0,2 kg
Dimensions 20 × 10 × 5 cm
