RFS Cellflex LCF158-50 Coupling Kit

 43,60

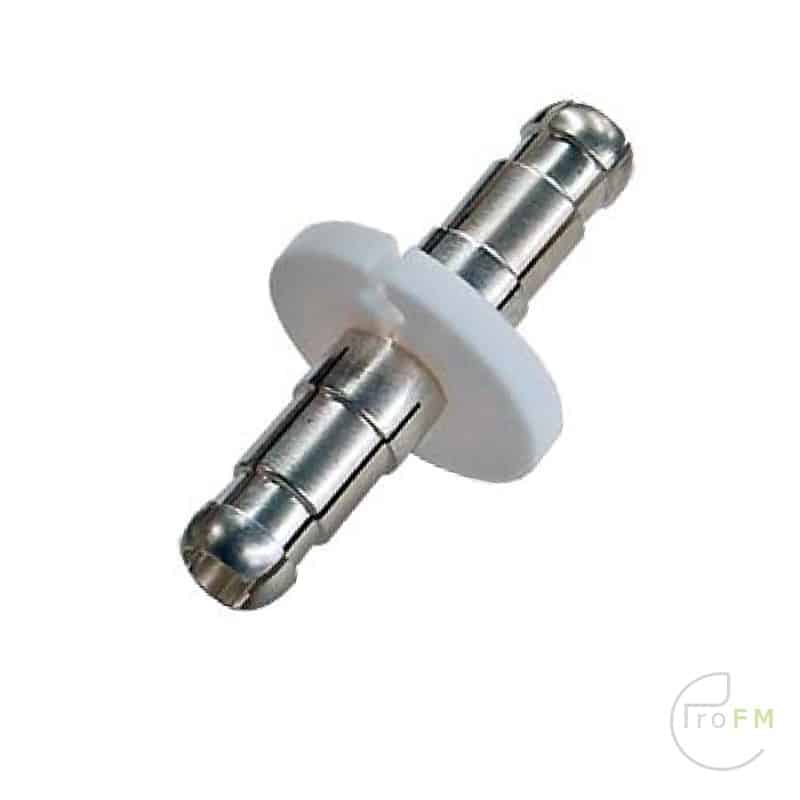

RFS Cellflex LCF158-50 Coupling Kit

RFS Cellflex LCF158-50 1-5/8 coupling kit needed to mount two 1-5/8 EIA Flange connectors together.
Category: SKU: 1169

Description

RFS Cellflex LCF158-50 1-5/8 Coupling Kit

Introducing the RFS Cellflex 1-5/8 coupling kit, a reliable solution designed to seamlessly connect two 1-5/8 EIA Flange connectors. This coupling kit offers a robust method to mount connectors, ensuring secure and stable connections for your communication needs.

Included in the delivery are essential components for installation, comprising 3x hexagon screws (M6x30), 3x hexagon nuts, 6x washers, and 3x spring washers. These components are meticulously crafted to facilitate hassle-free assembly, providing everything you need for a seamless installation process.

With a connector type of EIA and cable type LCF158-50, this coupling kit is optimized for compatibility and performance. Whether you’re setting up new connections or upgrading existing ones, this kit offers the versatility and reliability required for various applications.

The orientation of the coupling kit is straight, ensuring a straightforward setup process without the need for complex adjustments. This simplifies installation, saving you time and effort while maintaining optimal performance.

Additionally, the connector mount features a toolscrew design, further enhancing the ease of installation. This innovative mounting mechanism streamlines the setup process, allowing for efficient deployment in diverse environments.

Whether you’re deploying communication systems in industrial settings, telecommunications infrastructure, or any other application requiring robust connections, the RFS Cellflex 1-5/8 coupling kit delivers exceptional performance and reliability. Backed by RFS’s reputation for quality and durability, this coupling kit provides the assurance of long-term functionality, making it the ideal choice for your connectivity needs.

Upgrade your connections with confidence using the RFS Cellflex 1-5/8 coupling kit, ensuring seamless communication and reliable performance in every deployment.

Impendance: 50 Ω
Cut off frequency for H11-Mode 3.2 GHz
Proof voltage at sea level (NN) 7.0 kV
Frequency range 0 ≤ f ≤ 2.7 GHz
Average power at +40 °C ambient temperature
100 MHz : ≤ 20.0 kW
230 MHz : ≤ 13.5 kW
860 MHz : ≤ 7.0 kW
Attenuation at +20 °C ambient temperature (dB/100m)
100 MHz : 0.63
230 MHz : 0.95
860 MHz : 1.83
Rigid line (inner + outer conductor) with fixed flanges, custom-designed length
Please define length in mm with your order.
Spinner generates a part number extension for every specific length (V****).
0.09 m ≤ L ≤ 1.4 m
1.4 m < L ≤ 2.8 m
2.8 m < L ≤ 4 m
Inner support ≈ 0.04 kg BN 859906
Fixed flange for brazing ≈ 0.42 kg BN 006111
Coupling element incl. screw set ≈ 0.16 kg BN 918311
90° Elbow ≈ 1.36 kg BN 938520

Description

RFS Cellflex LCF158-50 1-5/8 Coupling Kit

Introducing the RFS Cellflex 1-5/8 coupling kit, a reliable solution designed to seamlessly connect two 1-5/8 EIA Flange connectors. This coupling kit offers a robust method to mount connectors, ensuring secure and stable connections for your communication needs.

Included in the delivery are essential components for installation, comprising 3x hexagon screws (M6x30), 3x hexagon nuts, 6x washers, and 3x spring washers. These components are meticulously crafted to facilitate hassle-free assembly, providing everything you need for a seamless installation process.

With a connector type of EIA and cable type LCF158-50, this coupling kit is optimized for compatibility and performance. Whether you’re setting up new connections or upgrading existing ones, this kit offers the versatility and reliability required for various applications.

The orientation of the coupling kit is straight, ensuring a straightforward setup process without the need for complex adjustments. This simplifies installation, saving you time and effort while maintaining optimal performance.

Additionally, the connector mount features a toolscrew design, further enhancing the ease of installation. This innovative mounting mechanism streamlines the setup process, allowing for efficient deployment in diverse environments.

Whether you’re deploying communication systems in industrial settings, telecommunications infrastructure, or any other application requiring robust connections, the RFS Cellflex 1-5/8 coupling kit delivers exceptional performance and reliability. Backed by RFS’s reputation for quality and durability, this coupling kit provides the assurance of long-term functionality, making it the ideal choice for your connectivity needs.

Upgrade your connections with confidence using the RFS Cellflex 1-5/8 coupling kit, ensuring seamless communication and reliable performance in every deployment.

Specifications

Impendance: 50 Ω
Cut off frequency for H11-Mode 3.2 GHz
Proof voltage at sea level (NN) 7.0 kV
Frequency range 0 ≤ f ≤ 2.7 GHz
Average power at +40 °C ambient temperature
100 MHz : ≤ 20.0 kW
230 MHz : ≤ 13.5 kW
860 MHz : ≤ 7.0 kW
Attenuation at +20 °C ambient temperature (dB/100m)
100 MHz : 0.63
230 MHz : 0.95
860 MHz : 1.83
Rigid line (inner + outer conductor) with fixed flanges, custom-designed length
Please define length in mm with your order.
Spinner generates a part number extension for every specific length (V****).
0.09 m ≤ L ≤ 1.4 m
1.4 m < L ≤ 2.8 m
2.8 m < L ≤ 4 m
Inner support ≈ 0.04 kg BN 859906
Fixed flange for brazing ≈ 0.42 kg BN 006111
Coupling element incl. screw set ≈ 0.16 kg BN 918311
90° Elbow ≈ 1.36 kg BN 938520

Additional information

Weight 0,2 kg
Dimensions 10 × 10 × 5 cm
