SielCo TX7000 FM transmitter set 7 KW / 7000 Watts

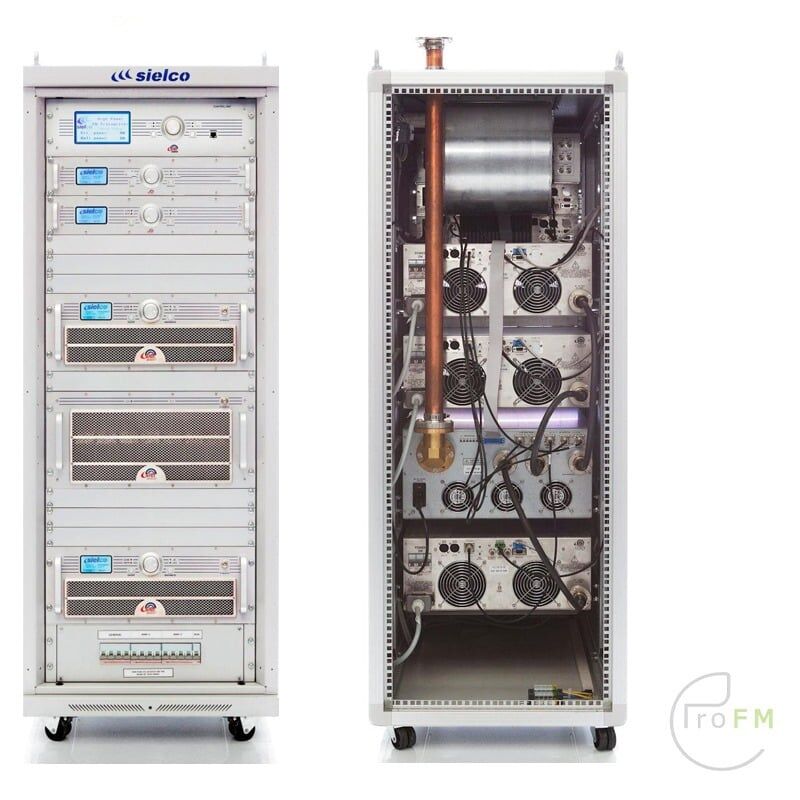

Sielco TX7000GX 7 KW Combined Broadcast FM transmitter of EXC 30GT Exiter and two RFB3500GX ampliferis.

TX7000GX model is the 7000W combinedtransmitter of the innovative GX family produced by Sielco. It is appreciated for the great efficiency and versatility due to three main reasons: LIGHT weight, MINIMUM size and LOW consumption. To buy a TX 7000GX, as anyone other model of the GX line, means to make a winning choice, to enjoy all the relevant advantages during all the life of the product and to spare money: less transport costs, less needed space to install it and the lowest energy consumption during the work. TX7000GX is simple to set up: very easy to configure thanks to the intuitive human interface equipped with an elegant LCD graphic display, a multifunction jogSielco TX7000 7 KW Composite FM Broadcasting Transmitter.

The TX 7000GX is an 7000 Watt combined fm transmitter produced by Sielco. It is appreciated for its great efficiency and versatility for three main reasons: Low consumption, simple very easy to configure thanks to its intuitive interface equipped with an elegant graphic LCD display, a multi-function jog control and just a few other control buttons. The high flexibility of this combined transmitter can be further enhanced by the use of important options such as: telemetry/remote control systems, Ethernet connection with SNMP protocol, high quality stereo encoder, digital audio card in accordance with AES/EBU directive and RS232/ 485 serial port to allow easier integration with other instruments.

The modern and attractive design of our GX transmitters reflects the state-of-the-art technology of this reliable, low-maintenance model that saves you time and money.

Highlights:

Professional performance, reliability and easy maintenance.
High-gain amplifiers with very low power consumption
Fully microprocessor controlled, menu digital interface for diagnosis and monitoring of all parameters displayed on the LCD screen.
APC (automatic power control) and flip-back protection, safe and reliable operation in any environmental condition.
Manufactured using the latest technologies for safe operation and easy maintenance.
Works perfectly with all Sielco telemetry systems

Frequency range ……………………………………………………………………………………………………………………………………………. 87.5 – 108 MHz
Rated RF output power …………………………………………………………………………………………… 6.2 / 7.2 KW typical; 5.9 / 6.9 KW minimum
Exciter power …… ……………………………………………………………………………………………………………………………………………………….. 10 W
Output power ALC stability …………………………………………………………………………………………………………………………………………….. ± 3%
Harmonic and spurious emissions ……………………………………………………………………………………………………………………………….. < 80 dB
Output RF impedance ………………………………………………………………………………………………………………………………………………. 50 Ohm
RF output connector …………………………………………………………………………………………………………………………………………… flange 1-5/8”
RF sampling connector………………………………………………………………………………………………………………………………………………….. BNC
Modulation input ………………………………………………………………………………………………………………………………………….. -3,5 ÷ +12,5 dBm
Modulation signal ………………………………………………………………………………………………………………………………… Mpx, L & R, Mono, Aux
S/N stereo…….. ………………………………………………………………………………………………………………………………………………………… >75 dB
Power supply…… ……………………………………………………………………………………………………………… 400 Vac ± 15% 3 phases with neutral
Total consumption …………………………………………………………………………………………………………………………………………….. <8.7, 9.7 kVA
Operative temperature range ………………………………………………………………………….. recommended: 0 to 35 °C; extreme: – 5 to + 45 °C*
Relative humidity ……………………………………………………………………………..….. ………………………….. up to 95 % not condensing
Operative atmospheric pressure ……………………………………………………………………………..….. …………………. 86 kPa to 106 kPa
Dimensions (30 units 19” UL standard rack) …………………………………………………………………………………. 59 x 102 x 160 cm (W x D x H)
Weight …………………………………………………………………………………………………………………………………………………………………… 200 Kg**
