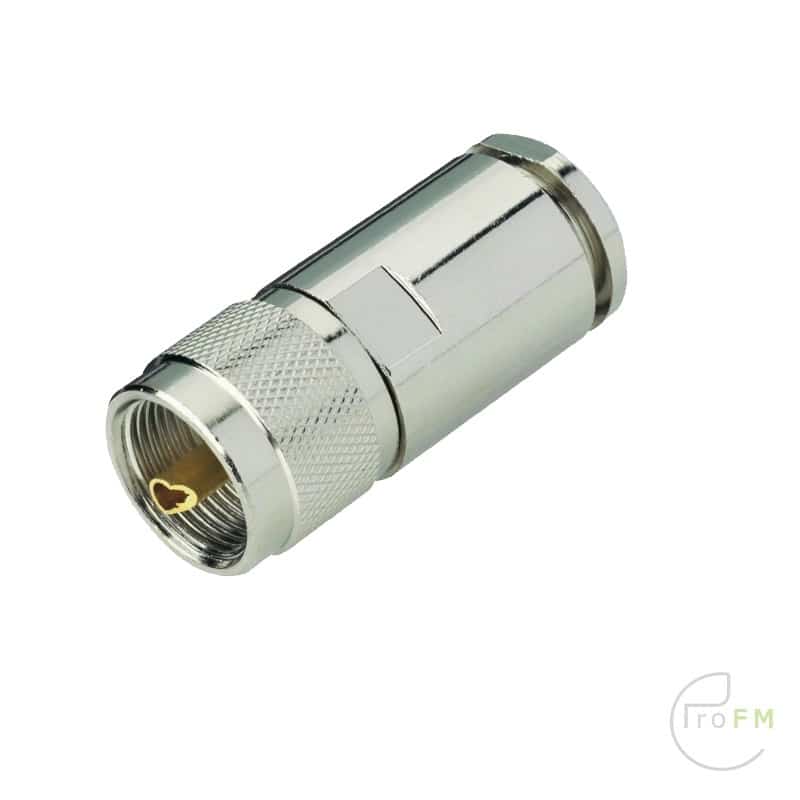

Aircom Plus-Ecoflex 10 UHF-Connector Male

 8,95

Aircom Plus-Ecoflex 10 UHF-Connector Male

This UHF-Male connector from the SSB brand can be mounted by soldering the inner conductor and screwing the outer conductor.
This connector is suitable for Aircom and Ecoflex-10/Plus coaxial cable.

Category: SKU: 1157 Tag:

Description

Aircom Plus-Ecoflex 10 UHF-Connector Male

This UHF-Male connector from the SSB brand can be mounted by soldering the inner conductor and screwing the outer conductor.
This connector is suitable for Aircom and Ecoflex-10/Plus coaxial cable.

Features SSB UHF-Male connector

  • UHF-Male connector
    Suitable for: Aircom/Ecoflex-10
    Insulator material: PTFE
    Pin surface: gold plated
    Housing: nickel plated
    Weight: 23 grams
    Impedance: 50 Ohms
    Max. frequency: 200MHz
    Return loss: <-25dB @200MHz
    Insertion loss: <0.05dB
    SWR@3GHz: <1.12
    Assembly information

Inner conductor: solder / Inner conductor: to solder
Outer conductor: to screw

Package contents

1x SSB UHF-Male connector

Mechanical specifications:
Electrical specifications:
Isolator: PTFE
Gasket: Rubber O-Ring
Surface: nickel plated
Metal parts excl. pin CuZn39Pb3
Pin (diamagnetic) CuZn39Pb3
Operating temperature -55°C / +155°C
Weight 44g
RoHs compliant Ja / Yes
Protection class IP 67
Working voltage ≤ 750 V RMS
Impedance 50 Ω
Isulation resistance ≥ 5 GΩ
Frequency up to 200 MHz
Inner contace resistance ≤ 5mΩ
Outer contact resistance ≤ 5mΩ
Max. frequency: 200MHz
Return loss: <-25dB @200MHz
Insertion loss: <0.05dB
SWR@3GHz: <1.12

Description

Aircom Plus-Ecoflex 10 UHF-Connector Male

This UHF-Male connector from the SSB brand can be mounted by soldering the inner conductor and screwing the outer conductor.
This connector is suitable for Aircom and Ecoflex-10/Plus coaxial cable.

Features SSB UHF-Male connector

  • UHF-Male connector
    Suitable for: Aircom/Ecoflex-10
    Insulator material: PTFE
    Pin surface: gold plated
    Housing: nickel plated
    Weight: 23 grams
    Impedance: 50 Ohms
    Max. frequency: 200MHz
    Return loss: <-25dB @200MHz
    Insertion loss: <0.05dB
    SWR@3GHz: <1.12
    Assembly information

Inner conductor: solder / Inner conductor: to solder
Outer conductor: to screw

Package contents

1x SSB UHF-Male connector

Specificaties

Mechanical specifications:
Electrical specifications:
Isolator: PTFE
Gasket: Rubber O-Ring
Surface: nickel plated
Metal parts excl. pin CuZn39Pb3
Pin (diamagnetic) CuZn39Pb3
Operating temperature -55°C / +155°C
Weight 44g
RoHs compliant Ja / Yes
Protection class IP 67
Working voltage ≤ 750 V RMS
Impedance 50 Ω
Isulation resistance ≥ 5 GΩ
Frequency up to 200 MHz
Inner contace resistance ≤ 5mΩ
Outer contact resistance ≤ 5mΩ
Max. frequency: 200MHz
Return loss: <-25dB @200MHz
Insertion loss: <0.05dB
SWR@3GHz: <1.12

Additional information

Weight 0,1 kg
Dimensions 10 × 5 × 5 cm

Brand

RFS

RFS  RFS-logo-Pro FM-Broadcast

Radio Frequency Systems (RFS) delivers the end-to-end RF solutions and expert services needed to evolve networks today and tomorrow. Our cables, connectors, antenna systems and RF conditioning products are based on more than 100 years of experience delivering cutting-edge solutions and industry firsts. As a result, our solutions are recognized globally for their innovation, superior performance and unmatched quality The company is a worldwide provider of innovative total package solutions for wireless infrastructures It's goal is the design, manufacture and deployment worldwide of technology, systems and services. We are committed to meeting the highest quality standards for products and systems by applying advanced technologies in our manufacturing processes, project engineering and installation. We seek to be the preferred global supplier in wireless communications by serving our clients with superior customer service, state-of-the-art engineering capabilities, and innovative product solutions.
RFS-logo-Pro FM-Broadcast

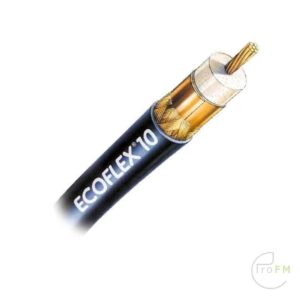

Frequently Bought Together
