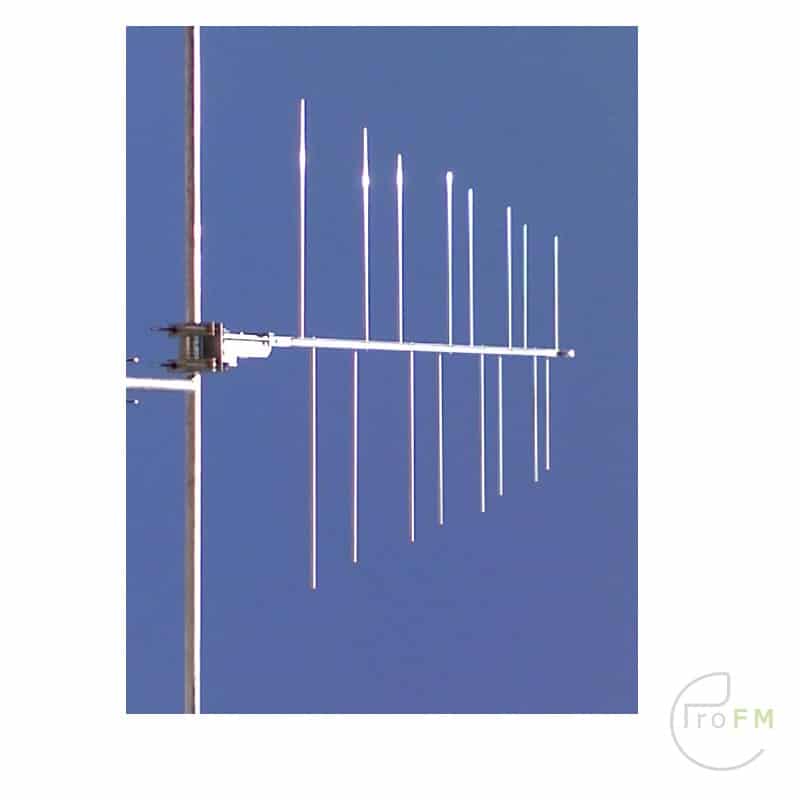

ProFM BBLP8 Log Per 8 Element FM Antenna

A robust solution designed for standalone use or integration into multi-antenna systems for enhanced coverage.

Crafted for durability, this log periodic antenna offers versatility for single or multi-station setups. With a wide 100-degree radiation angle, it ensures consistent gain across all key aspects.

Ideal for medium to high-power applications at elevated altitudes, the ProFM BBLP8 is commonly employed with repeater systems to minimize signal interference and maximize coverage efficiency.

Available with a 7/16 connector for a maximum power output of 2 kW or with a 7/8 connector for a remarkable 5 kW output, this antenna provides flexibility to meet various power requirements.

Constructed from lightweight yet durable aluminum, the ProFM BBLP8 is built to withstand the rigors of continuous operation while maintaining exceptional performance.

Whether you’re establishing a new broadcasting station or expanding your existing infrastructure, the ProFM BBLP8 Log Per 8 Element FM Antenna offers unmatched reliability and performance.

Experience seamless coverage and enhanced signal strength with the ProFM BBLP8 – the ultimate choice for log periodic antennas. Contact us today to learn more about how the ProFM BBLP8 can elevate your broadcasting capabilities.

Model: ProFM BBLP8-7/16-7/8
WEIGHT: 10Kg. ALUMINIUM
IMPEDANCE: 50 ohm
MOUNTING: WHITH STANDARD -CLAMP 50-110 MM.
FREQUENCY RANGE: 87.5-108 Mhz
DIMENSIONS: 265 x 168 x 12 cm

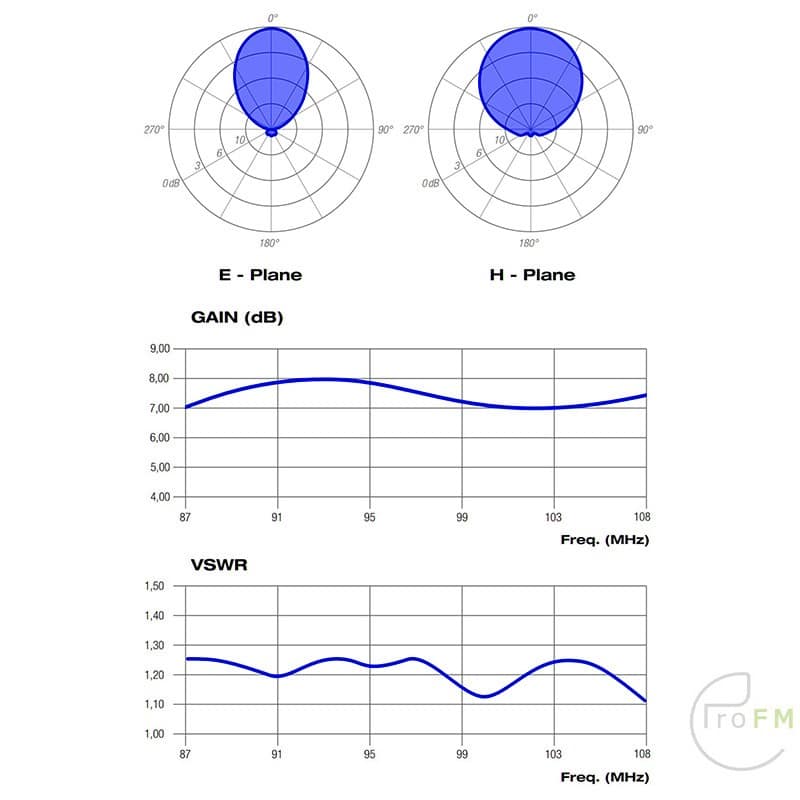

GAIN: 7 dB (half wave dipole)
MATERIALS HARDWARE MOUNTING: STEEL GALVANIZED.
TYPICAL – V.S.W.R.: <1.35 : 1
ISULATOR: PTFE (TEFLON
POLARIZATION: LINEAR, HORIZONTAL OR VERTICAL INTERNAL : ALUMINIUM COPPER
MAX. POWER: MEDIUM POWER 2000 W H POWER 5 KW WIND LOAD: 150 Kg. 90 Km. Hora
CONNECTOR TYPE: N female-7/16 female 7/8 female MAX WIND VELOCITY 90 KM HORA
MATERIALS ANTENNA: ALLUMINIUM ANTICORODAL

Description: ProFM BBLP8 Log Per 8 Element FM Antenna

A robust solution designed for standalone use or integration into multi-antenna systems for enhanced coverage.

Crafted for durability, this log periodic antenna offers versatility for single or multi-station setups. With a wide 100-degree radiation angle, it ensures consistent gain across all key aspects.

Ideal for medium to high-power applications at elevated altitudes, the ProFM BBLP8 is commonly employed with repeater systems to minimize signal interference and maximize coverage efficiency.

Available with a 7/16 connector for a maximum power output of 2 kW or with a 7/8 connector for a remarkable 5 kW output, this antenna provides flexibility to meet various power requirements.

Constructed from lightweight yet durable aluminum, the ProFM BBLP8 is built to withstand the rigors of continuous operation while maintaining exceptional performance.

Whether you’re establishing a new broadcasting station or expanding your existing infrastructure, the ProFM BBLP8 Log Per 8 Element FM Antenna offers unmatched reliability and performance.

Experience seamless coverage and enhanced signal strength with the ProFM BBLP8 – the ultimate choice for log periodic antennas. Contact us today to learn more about how the ProFM BBLP8 can elevate your broadcasting capabilities.
Specifications: Model: ProFM BBLP8-7/16-7/8
WEIGHT: 10Kg. ALUMINIUM
IMPEDANCE: 50 ohm
MOUNTING: WHITH STANDARD -CLAMP 50-110 MM.
FREQUENCY RANGE: 87.5-108 Mhz
DIMENSIONS: 265 x 168 x 12 cm
GAIN: 7 dB (half wave dipole)
MATERIALS HARDWARE MOUNTING: STEEL GALVANIZED.
TYPICAL – V.S.W.R.: <1.35 : 1
ISULATOR: PTFE (TEFLON
POLARIZATION: LINEAR, HORIZONTAL OR VERTICAL INTERNAL : ALUMINIUM COPPER
MAX. POWER: MEDIUM POWER 2000 W H POWER 5 KW WIND LOAD: 150 Kg. 90 Km. Hora
CONNECTOR TYPE: N female-7/16 female 7/8 female MAX WIND VELOCITY 90 KM HORA
MATERIALS ANTENNA: ALLUMINIUM ANTICORODAL

Additional information

Weight	21 kg
Dimensions	312 × 30 × 30 cm
