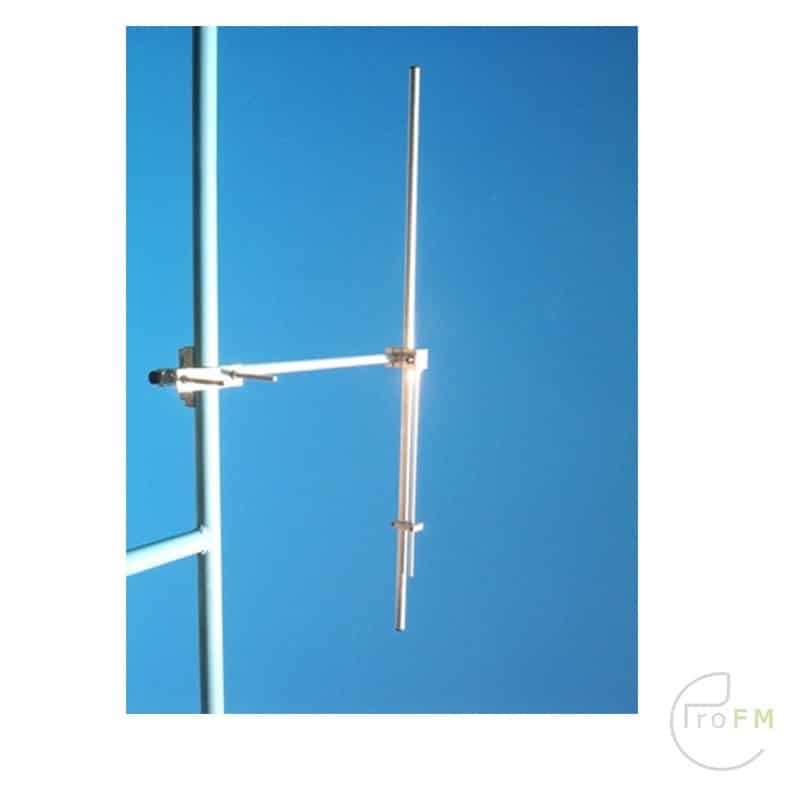

ProFM TD1 Broadcast Tuned Dipole FM Antenna

 169,00

ProFM TD1 Broadcast Tuned Dipole FM Antenna

To be manufactured on your broadcast frequency. Available in aluminium and stainless steel. Also different input connectors are possible. Choose your version down under here:

ProFM Tuned Antenna Options

Choose your version:

Standard version In Aluminium

Version in Stainless Steel /INOX

N-Connector Version (600 watt Max)

7/16 Connector (1,5 KW Max)

7/8 Connector (5 KW max)

Product price:  169,00
Total options:
Order total:
Category: SKU: 1112 Tags:

Description

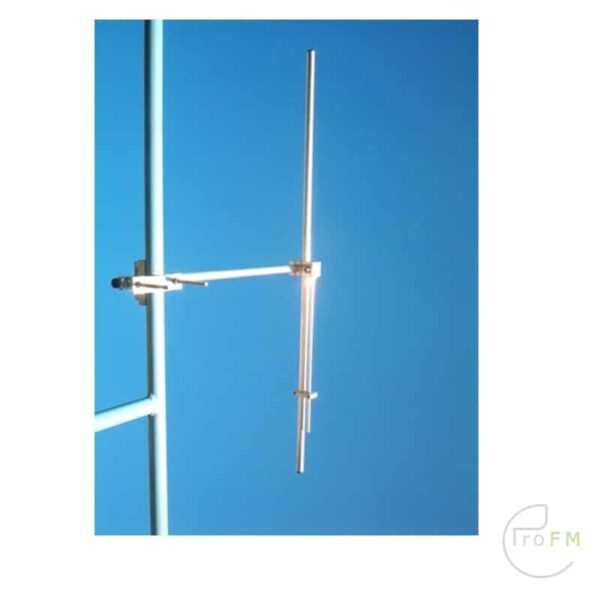

ProFM TD1 Broadcast Tuned Dipole FM Antenna

Introducing the ProFM TD1 Tuned Dipole Antenna, a narrowband solution tailored for optimal radio station performance. Crafted in two variants – all aluminum and all stainless steel – this antenna offers versatility and durability to meet your broadcasting needs.

Capable of handling substantial power, the ProFM TD1 supports up to 800W with an N connector, 2kW with a 7/16 connector, and an impressive 3kW with a 7/8 connector. Its robust construction ensures reliable operation, even under high power conditions.

Designed for a 360-degree service range, this antenna guarantees comprehensive coverage, making it ideal for radio stations seeking widespread outreach. What sets the ProFM TD1 apart is its customization option – it can be specially manufactured to operate on your desired broadcast frequency, ensuring seamless integration into your existing setup.

Whether you’re establishing a new station or upgrading your current infrastructure, the ProFM TD1 Tuned Dipole Antenna offers unparalleled performance and adaptability. Choose between the lightweight and corrosion-resistant aluminum version or the rugged stainless steel variant, both engineered to deliver exceptional results in any broadcasting environment.

Elevate your broadcasting experience with the ProFM TD1 – the ultimate choice for narrowband tuned dipole antennas. Reach out to us today to learn more about how the ProFM TD1 can enhance your radio station’s efficiency and reach.

Model: ProFM TD1
WEIGHT: 4Kg.
IMPEDANCE: 50 ohm
MOUNTING: WHITH STANDARD CLAMP 50-110 mm .
FREQUENCY RANGE: 87.500-108 Mhz
DIMENSIONS:150 x 100 x 6 cm
GAIN: 0 dB (half wave dipole)
BANDWITH; 0,2 MHZ
MOUNTING: STEEL GALVANIZED.
TYPICAL V.S.W.R: <1.2:1
ISULATOR: PTFE (TEFLON)
MAX. POWER: MEDIUM POWER 500 W H POWER 2 KW
DIPOLE: ALUMINIUM OR STAINLESS STEEL
CONNECTOR TYPE: N female-7/16 or female- 7/8
WIND LOAD: Kg. 26 Km. 150Hora

Description

ProFM TD1 Broadcast Tuned Dipole FM Antenna

Introducing the ProFM TD1 Tuned Dipole Antenna, a narrowband solution tailored for optimal radio station performance. Crafted in two variants – all aluminum and all stainless steel – this antenna offers versatility and durability to meet your broadcasting needs.

Capable of handling substantial power, the ProFM TD1 supports up to 800W with an N connector, 2kW with a 7/16 connector, and an impressive 3kW with a 7/8 connector. Its robust construction ensures reliable operation, even under high power conditions.

Designed for a 360-degree service range, this antenna guarantees comprehensive coverage, making it ideal for radio stations seeking widespread outreach. What sets the ProFM TD1 apart is its customization option – it can be specially manufactured to operate on your desired broadcast frequency, ensuring seamless integration into your existing setup.

Whether you’re establishing a new station or upgrading your current infrastructure, the ProFM TD1 Tuned Dipole Antenna offers unparalleled performance and adaptability. Choose between the lightweight and corrosion-resistant aluminum version or the rugged stainless steel variant, both engineered to deliver exceptional results in any broadcasting environment.

Elevate your broadcasting experience with the ProFM TD1 – the ultimate choice for narrowband tuned dipole antennas. Reach out to us today to learn more about how the ProFM TD1 can enhance your radio station’s efficiency and reach.

Specifications

Model: ProFM TD1
WEIGHT: 4Kg.
IMPEDANCE: 50 ohm
MOUNTING: WHITH STANDARD CLAMP 50-110 mm .
FREQUENCY RANGE: 87.500-108 Mhz
DIMENSIONS:150 x 100 x 6 cm
GAIN: 0 dB (half wave dipole)
BANDWITH; 0,2 MHZ
MOUNTING: STEEL GALVANIZED.
TYPICAL V.S.W.R: <1.2:1
ISULATOR: PTFE (TEFLON)
MAX. POWER: MEDIUM POWER 500 W H POWER 2 KW
DIPOLE: ALUMINIUM OR STAINLESS STEEL
CONNECTOR TYPE: N female-7/16 or female- 7/8
WIND LOAD: Kg. 26 Km. 150Hora

Additional information

Weight 6 kg
Dimensions 150 × 17 × 16 cm
